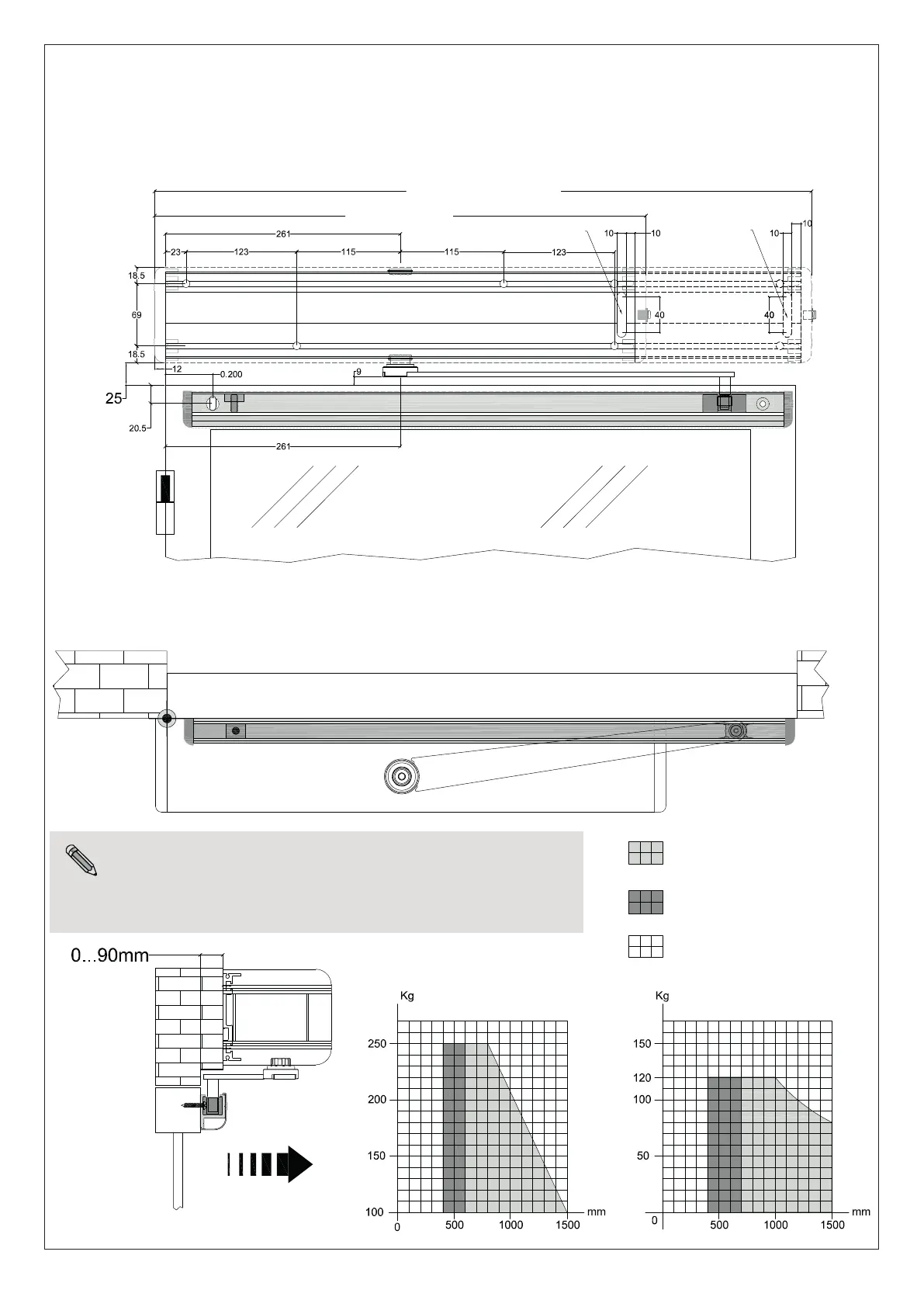

5.2) ASSEMBLY OF THE AUTOMATION ON THE TRANSOM FROM THE HINGE SIDE
SLIDE PULL ARM BDT2R55
For doors opening inward (as seen from the automation side)
ONLY FOR SPRING MODELS NB-LET / LETB / SLT / SLTB
For this application, please consider that the gearmotor must be on the hinged
side of the door for a correct opening movement direction.
Usable leaf length and weight
Usable leaf length and weight with di󰀨erent
fastening dimensions
Installation drawings available upon request
Unusable leaf length and weight
Automation with battery module
Standard Automation
CABLE
PASSAGE
SLOT
CABLE
PASSAGE
SLOT
OPENING
DIRECTION
NB-SLT/SLTB/SMT/SMTB CHART NB-LET/LETB CHART
