32
17) PROGRAM SELECTORS
The program selector allows the user to select the operating mode of the door.
Depending on the preference, it is possible to use the manual selector incorporated in the side cap of the Neptis Plus automation, the
mechanical key selector EV-MSEL, or the digital selector ET-DSEL.
Each program selector is fully described below.
17.1) MANUAL PROGRAM SELECTORS
The 3-position manual program selector is the basic solution provided on the automation.
The operation of this selector is enabled when the function F01 is OFF (preset as default).
Position I = Automatic bidirectional program
The door automatically opens after an opening command.
Position 0 = Manual free door
Automatic operation is disabled and the door can be opened manually.
Position II = Night lock program
The door can only be opened by the OPEN input, by the start input or by radio
control if the EN/RF1 radio receiver is installed.
= Open door program
The door remains motionless in the position of complete opening.

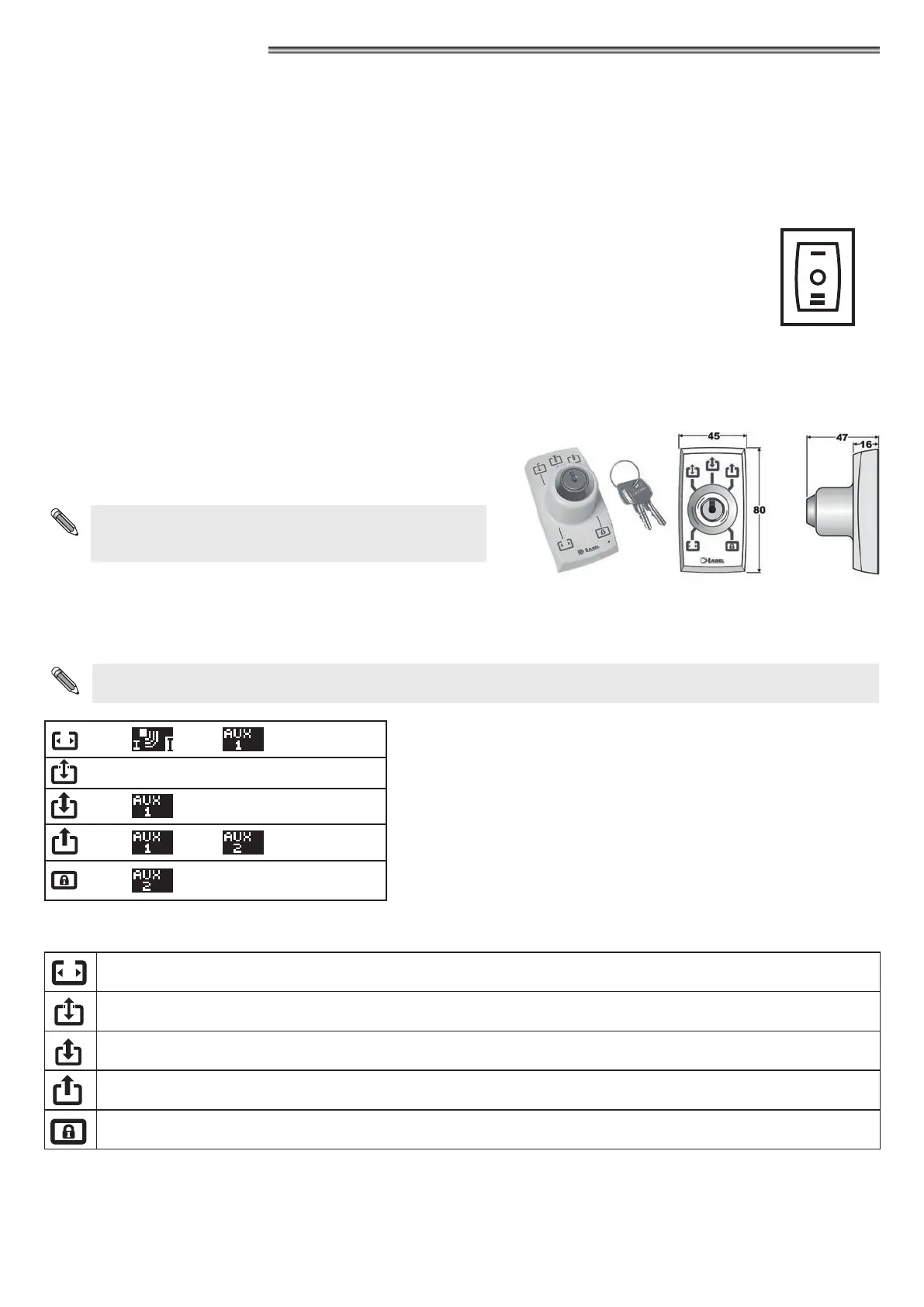

17.2) MECHANICAL KEY SELECTOR EV-MSEL
The 5-position mechanical key selector can be used as an alternative to
the manual selector, and its operation is enabled when the function F01
is OFF (default).
Disconnect the wires of the manual selector from the
terminal box of the PWB control unit if the mechanical
selector EV-MSEL is installed.
ELECTRIC CONNECTIONS
Terminal 1 of EV-MSEL= to terminal 9 (Internal radar) of the PWB of the Neptis Plus automation.
Terminal 2 of EV-MSEL= to terminal 3 (Common) of the PWB of the Neptis Plus automation.
Terminal 3 of EV-MSEL= to terminal 1 (AUX 1) of the PWB of the Neptis Plus automation.
Terminal 4 of EV-MSEL= to terminal 4 (AUX 2) of the PWB of the Neptis Plus automation.
For any check on proper connection and operation of the key mechanical selector, enter inputs diagnostics (see par.
=
e
= no active symbol
=
=
e
=
OPERATING MODE
Insert and turn the key of the selector EV-MSEL to select the desired program.
Open door program
The door stops in fully open position.
Manual free door
Automatic operation is disabled and the door can be opened manually.
Automatic bidirectional program
The door automatically opens after an opening command.
Automatic unidirectional exit only program
To disable entry detection on external Radar input.
Night lock program
The door can only be opened by the OPEN input, by the start input, or by radio control if the EN/RF1 radio receiver is installed.
The key can be taken out of the selector when in any position in order to prevent undesired changes to the work program.
If the F06 function is
set to OFF (default)
Position II
If the F06 function is
set to ON
