31.2) OPERATION OF THE PRIVACY SYSTEM

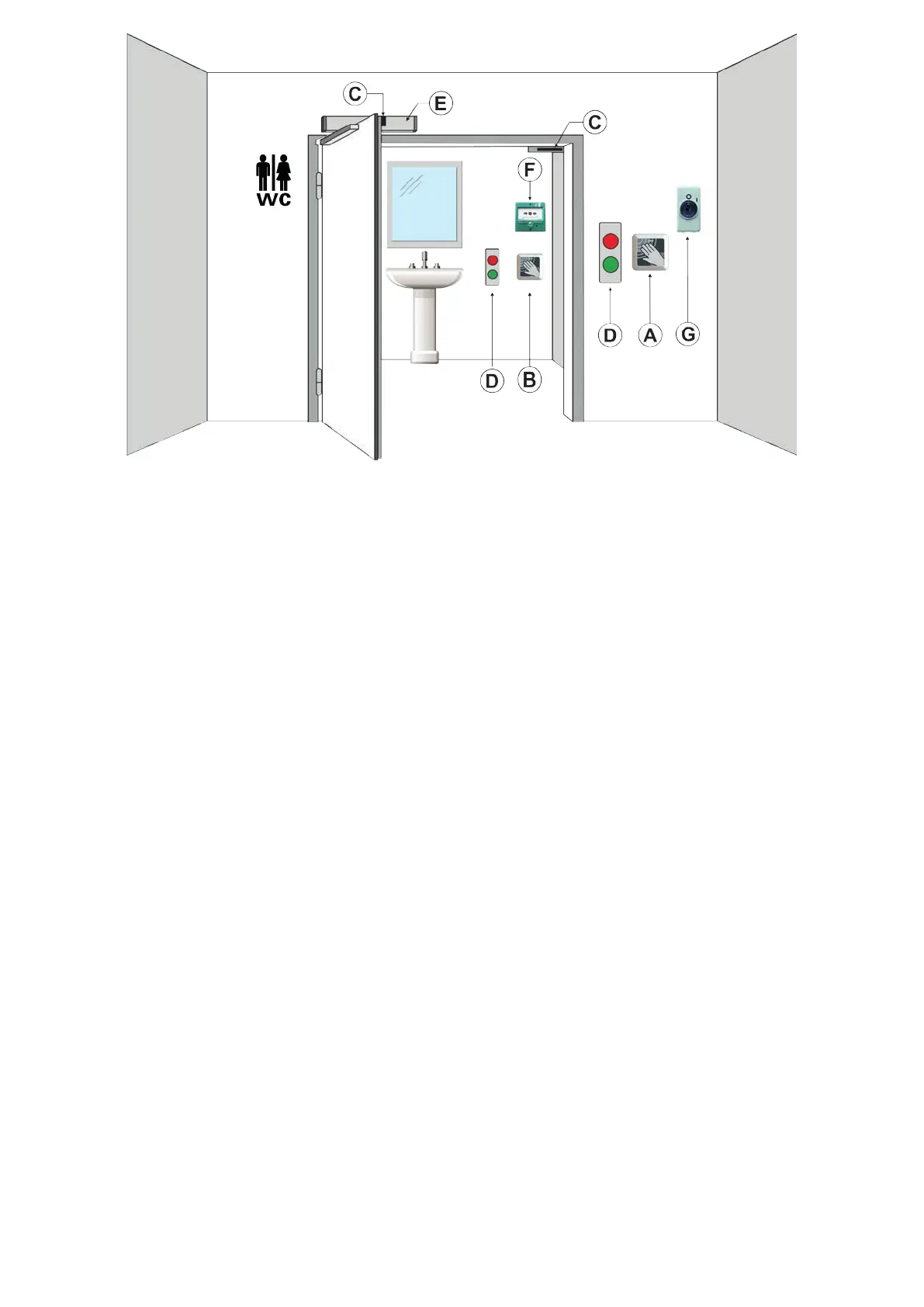

• To enable the privacy function, set function F77= ON using the digital selector.
• The automatic door is normally unlocked when there is nobody in the room and the signaling light (D) is green.
• If the outside touch button (A) is activated, the door executes the opening cycle, allowing the user to enter.
• Once the pause time has expired, the door closes automatically and waits to be locked.
• Within the time set in advance through the potentiometer P34, the user must activate the inside touch button (B) only once, to
energise the door closing electromagnet (C).
The signaling light then turns red and the door cannot be opened through the outside button.
• To open the door and leave the room, the user must activate the inside touch button (B); the electromagnet (C) will be de-energised,
the door will open and the signalling light (D) will switch back to green.
In case of emergency the door closing electromagnet (C) can be de-energised by activating the inside emergency button (F) or the
outside key selector (G).
The door is unlocked and can be opened manually.
31.3) SETTINGS
•
FUNCTION F77
OFF: Privacy function disabled
ON: Privacy function enabled
•
FUNCTION F78: only read if you installed an electromagnet equipped with an open/closed status sensor (not supplied by Label).
OFF: for electromagnet not equipped with open/closed status sensor (factory setting).
The Neptis Plus automation automatically detects the closed door status.
ON: for electromagnet equipped with open/closed status sensor. Connect the N.O. output contact of the electromagnet built-in status
sensor to the AUX1 input of the LCB control unit to detect the closed door status.
•
FUNCTION F79
OFF: The signaling light (D) is steadily green while the door is moving and waiting for the door lock command.
ON: The signaling light (D) alternately switches between red and green; it ashes slowly while the door is moving, and fast when the
door is waiting for the door lock command.
When the door is closed the light is always steadily red.
•
POTENTIOMETER P34
It allows to adjust the time within which the user can issue the lock command from the inside once the door has closed.
If the value is "0", time is innite, therefore the lock command can always be issued from the internal touch button.
Values ranging between "1" and "100" will set a time ranging between 1 and 100 seconds (factory setting = 10 seconds).
Once this time has expired, if the electromagnet is not locked, activating the touch button causes the door to open.
•
P35 POTENTIOMETER
It allows to set the time after which the electromagnet is automatically released after the door has been locked from the inside.
•
If the value is "0" (factory setting), time is innite, therefore the electromagnet remains locked until the user activates the inside
button to leave.
•
Values ranging between "1" and "100" will set a time ranging between 1 and 100 minutes.
Once this time has expired the signalling light ashes, alternately switching between red and green, to warn the user that within 3
minutes the door will be unlocked.
