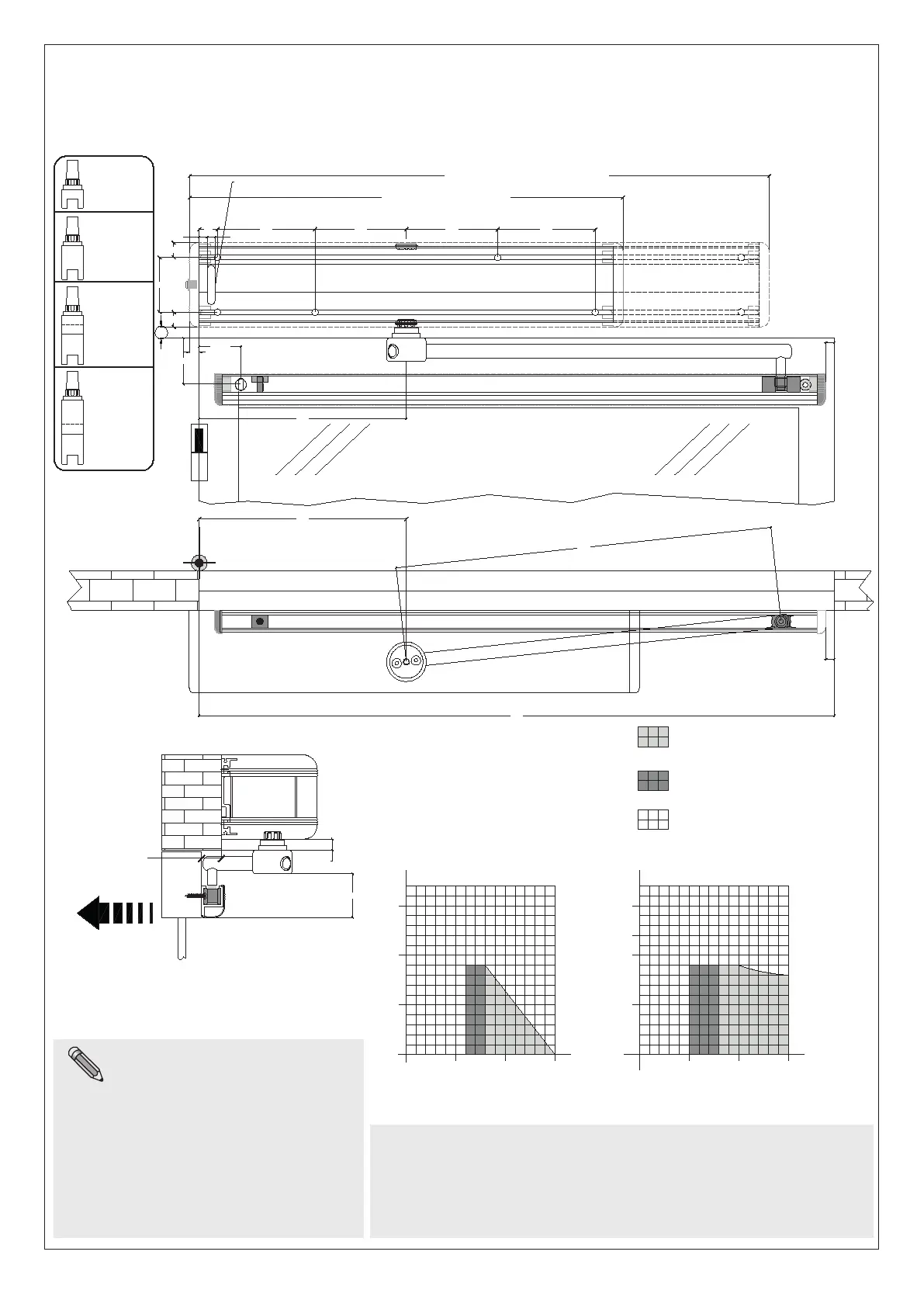

5.6) ASSEMBLY OF THE AUTOMATION ON THE TRANSOM FROM THE HINGE SIDE
ARTICULATED PUSH ARM BDS
For doors opening outward (as seen from the automation side)
OPENING
DIRECTION
Automation with battery module
Standard Automation
CABLE
PASSAGE
SLOT
ONLY FOR SPRING MODELS
NB-LET / LETB / SLT / SLTB
For this application, please consider that the
PWB cabling board must be on the hinged side of
the door for a correct movement direction when
opening.
It is necessary to install a mechanical stop in open
door position
A = STANDARD TAPERED PIN
Should it be necessary to increase the distance between the automation and the
arm (dimension X), replace the standard tapered pin with the following optional
extensions:
B = EXTB-Z TAPERED PIN (optional) for mm. 24 shaft extension
C = EXTC-Z EXTENSION (optional) for TAPERED PIN for mm. 48 shaft extension
NB-SLT/SLTB/SMT/SMTB CHART NB-LET/LETB CHART
Usable leaf length and weight
Usable leaf length and weight with di󰀨erent
fastening dimensions
Installation drawings available upon request
Unusable leaf length and weight
