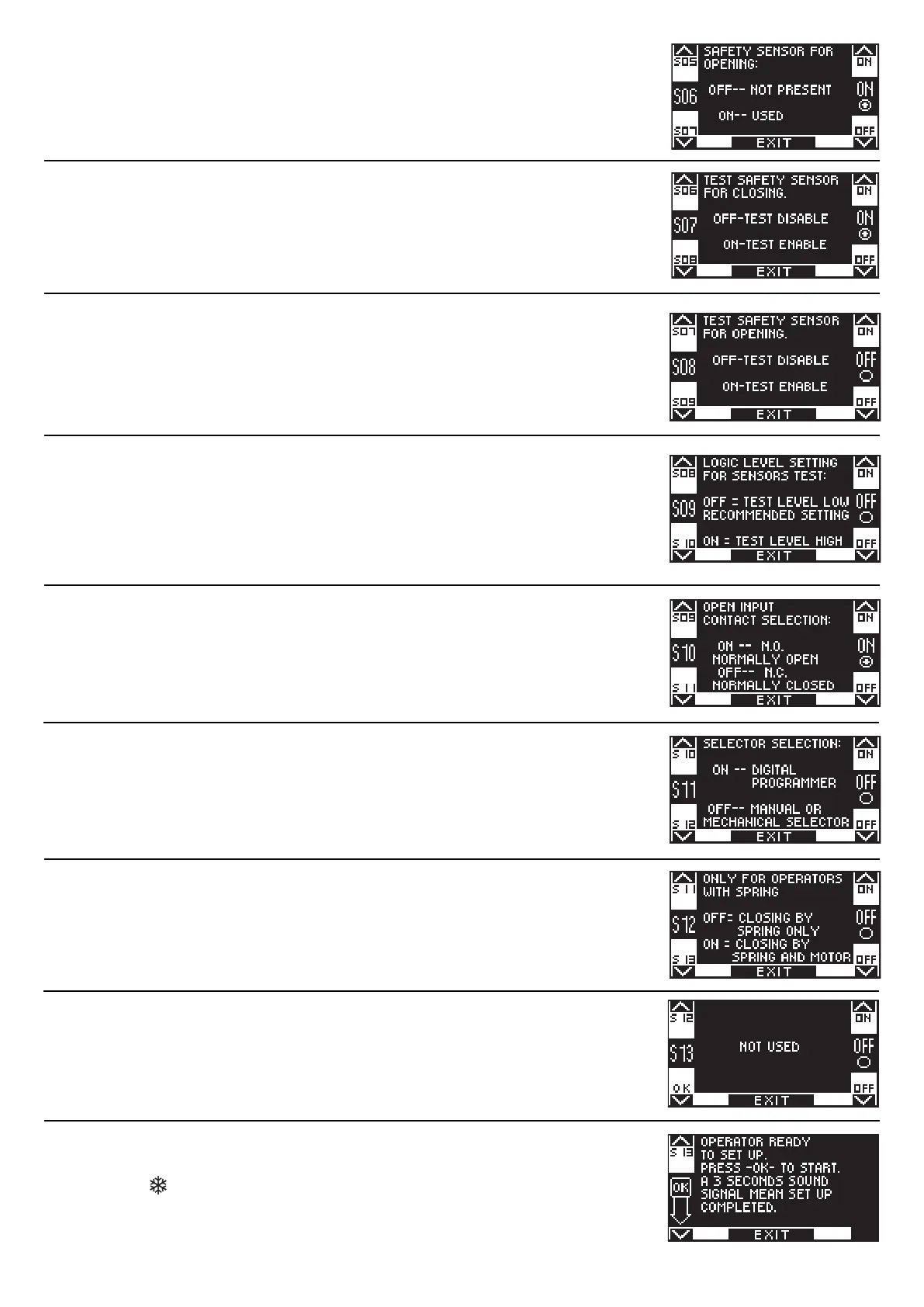

Select ON only if an opening safety sensor has been installed (between terminals 5-7)
We recommend that you adjust the safety sensor detection eld before starting the set-up, to
allow the automation to precisely store the position of any side wall.
Only if function S05 was set to ON.
Select ON if a monitored closing safety sensor was installed (as provided for by the standard EN
16005) in order to activate the sensor test at the beginning of each cycle.
Only select OFF if the safety closing sensor has not been setup to be monitored.
For details, refer to the paragraph "Safety sensors".
Only if function S06 was set to ON.
Select ON if a monitored opening safety sensor has been installed (as required by standard EN
16005) to activate the sensor test at the beginning of each cycle; only select OFF if the opening
safety sensor has not been set up to be monitored.
For details, refer to the paragraph "Safety sensors".
Only if the functions S07 and/or S08 are set to ON.
Selects the logic state of the test, used by the automation control unit to monitor the safety sensors.
The setup depends on the characteristics of the sensor installed.
If the type of sensors in use is “FLAT SCAN” or OA-EDGET, select OFF.
If the type of sensors in use is “TOP SCAN-S”, select ON.
For details, refer to the paragraph "Safety sensors".
Contact conguration on OPEN input between terminals 6-7 of the PWB board.
Select ON with a normally open contact or if you do not use the OPEN input.
Select OFF if you use a device with a normally closed contact.
Choice of the work program selector.
OFF: Manual selector or mechanical selector EV-MSEL.
ON: Digital selector ET-DSEL or T-NFC.
The automation is ready for the set-up cycle.
Exit the detection range of the opening safety sensor during the setup, to allow the sensor to
detect only the presence of any side wall at the end of the opening.
Press the button
(OK).
The control unit buzzer emits 4 beeps and the slow speed opening cycle starts.
When the stroke ends a prolonged beep indicates that the set-up has been successfully performed.
The door re-closes automatically.
Function NOT used.
For Neptis Plus NB-LET, NB-LETB, NB-SLT, NB-SLTB automations only.
Select whether the door should only be closed by spring force (OFF), or if the motor (ON) must
also be enabled to provide greater reclosing force.
