55
Follow the steps described below to complete the commissioning of the automation.
1. Power on the automations with mains voltage
2. If the digital selector ET-DSEL is new and is powered for the rst time, it is necessary to select a language as shown in paragraph
16.1, then you will automatically enter the section "Serial communication settings".
3. SERIAL COMMUNICATION SETTINGS

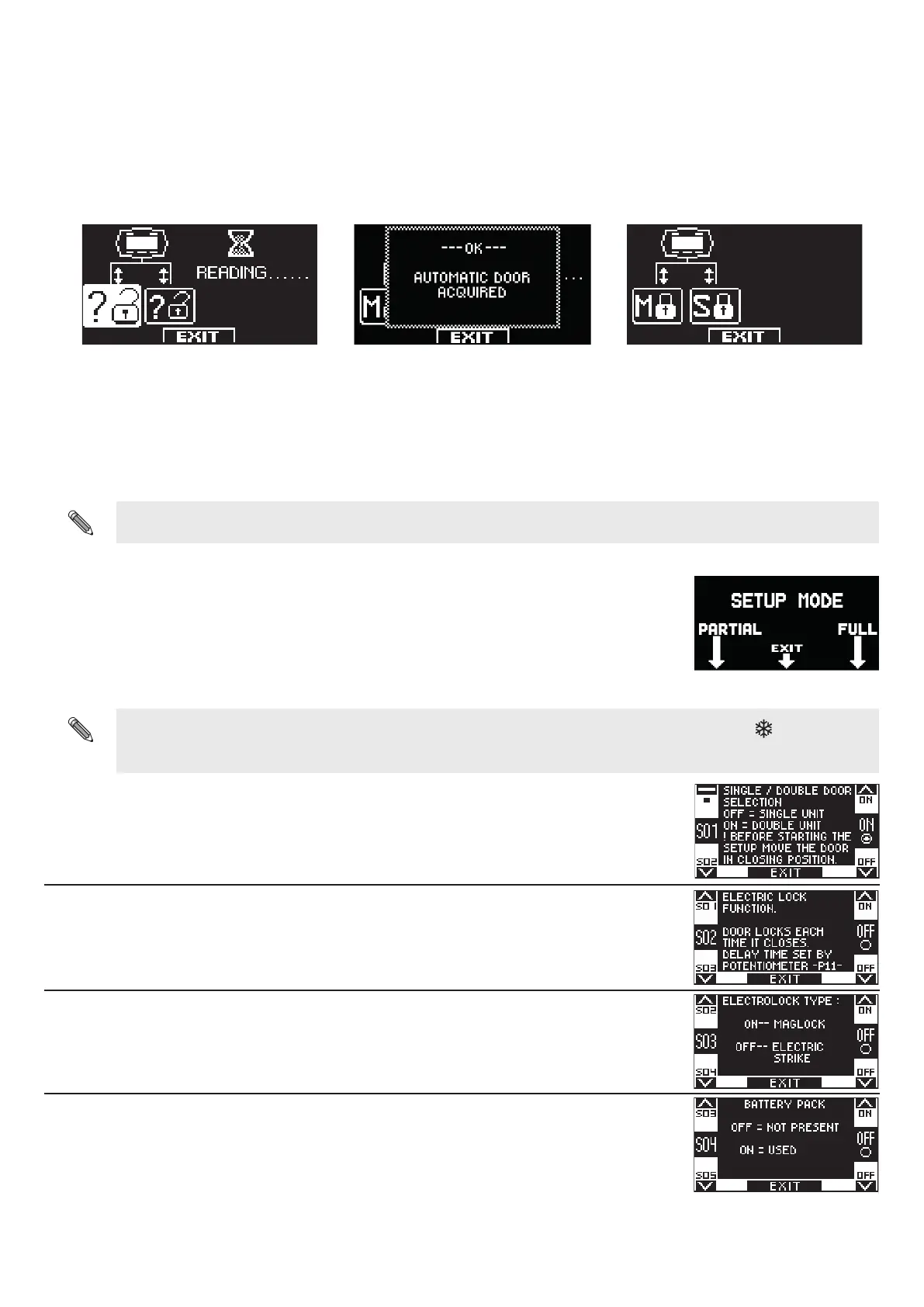

The selector ET-DSEL detects the presence of the two automations in the system (g.A) and automatically stores the serial code of
the logic cards LCB (g.B).
At the end of the acquisition of both serial codes of the logic cards LCB, the display shows the symbol with a closed padlock on the
icons of the letters M and S (g.C) and the selector ET-DSEL will be able to manage both Master and Slave automations.
Press the button EXIT (SET) to exit the section “Serial communication settings” and return to the general programming menu.
4. INITIAL SETUP
From the main programming menu, enter the section "INITIAL SETUP" (as indicated in paragraph 18).
Enter the 10 character technical password to access setup; (for information about the use of the technical password, refer to the
paragraph "Password management" 21 and 21.1).
BEFORE STARTING THE SETUP, MOVE THE DOOR TO CLOSED POSITION.
FULL SETUP mandatory for the rst installation of the automation.
PARTIAL SETUP to repeat leaf run learning if the mechanical limit stops are moved, without
modifying the functions previously set.
WARNING! Partial setup does not work on a new automation on rst installation. In this
case, if it the Partial option is selected, the buzzer of the electronic control
unit will report the fault emitting a continuous sound for 4 seconds.
Press the button F1 to select the “FULL” setup.
In this section, the buttons F1 / F3 allow selecting the function OFF/ON status, while the button
allows moving
to the following function.
Press the button F2 to return to the previous function.
•
Select the function S01 ON = dual leaf door.
Select ON if there is an electric lock.
If the door is not equipped with an electric lock, keep OFF.
Only if the function S02 was set to ON
If there is an electric lock, select its type:
Pulse OFF (electric lock or electric strike) or permanent ON (electromagnet).
BATTERY PACK
OFF = NOT PRESENT
ON = USED
