LabJack U3 User Manual

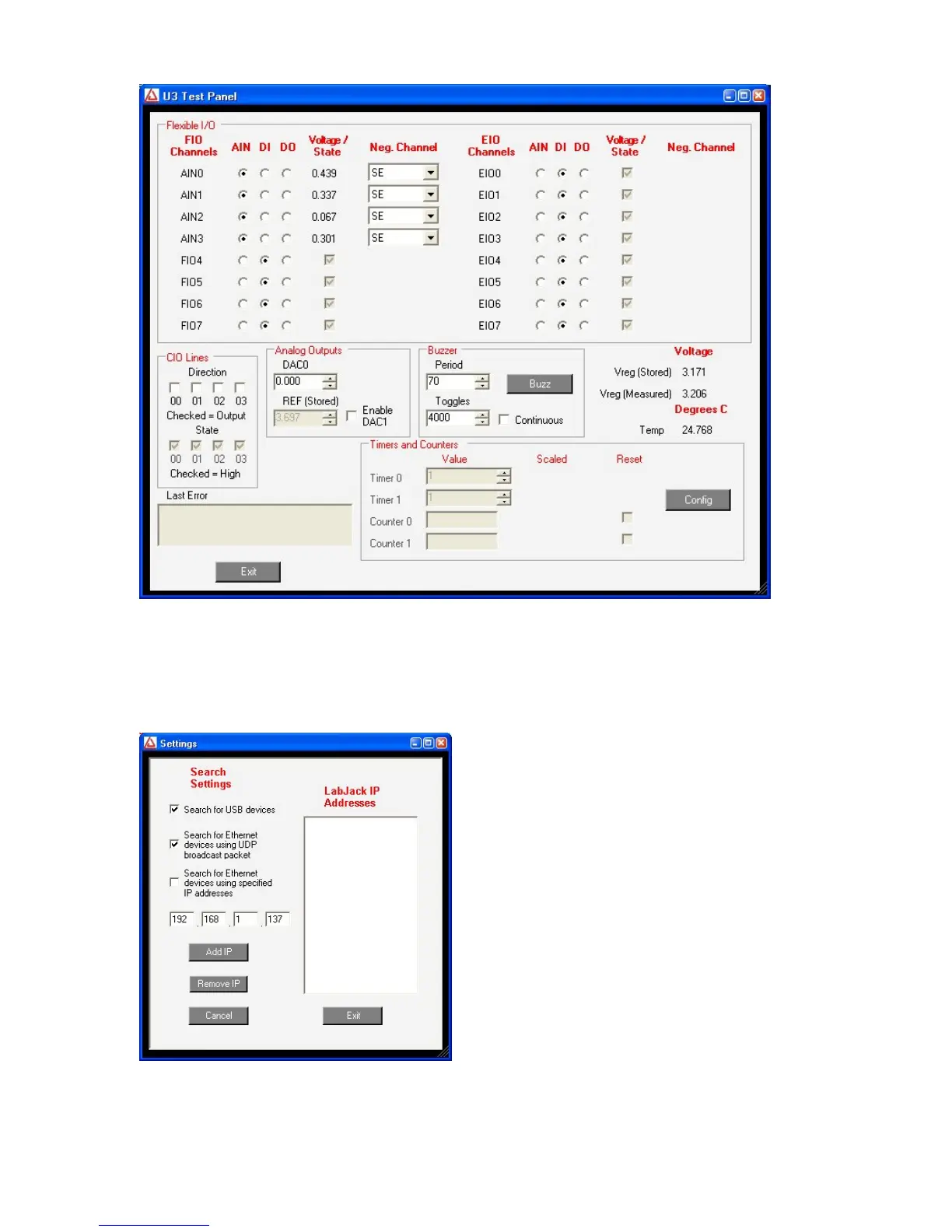

Figure 1-3. LJControlPanel U3 Test Window
Selecting Options=>Settings from the main LJControlPanel menu brings up the window shown
in Figure 1-4. This window allows some features to of the LJControlPanel application to be
customized.
Figure 1-4. LJControlPanel Settings Window
9

LabJack U3 Specifications

General

Analog Outputs	2
Analog Output Resolution	10 bits
Digital I/O	20
Counter/Timers	2
Interface	USB
Operating Voltage	5 V
Manufacturer	LabJack Corporation
Analog Inputs	16
Analog Input Resolution	12-bit
Max Sample Rate	50 kHz
