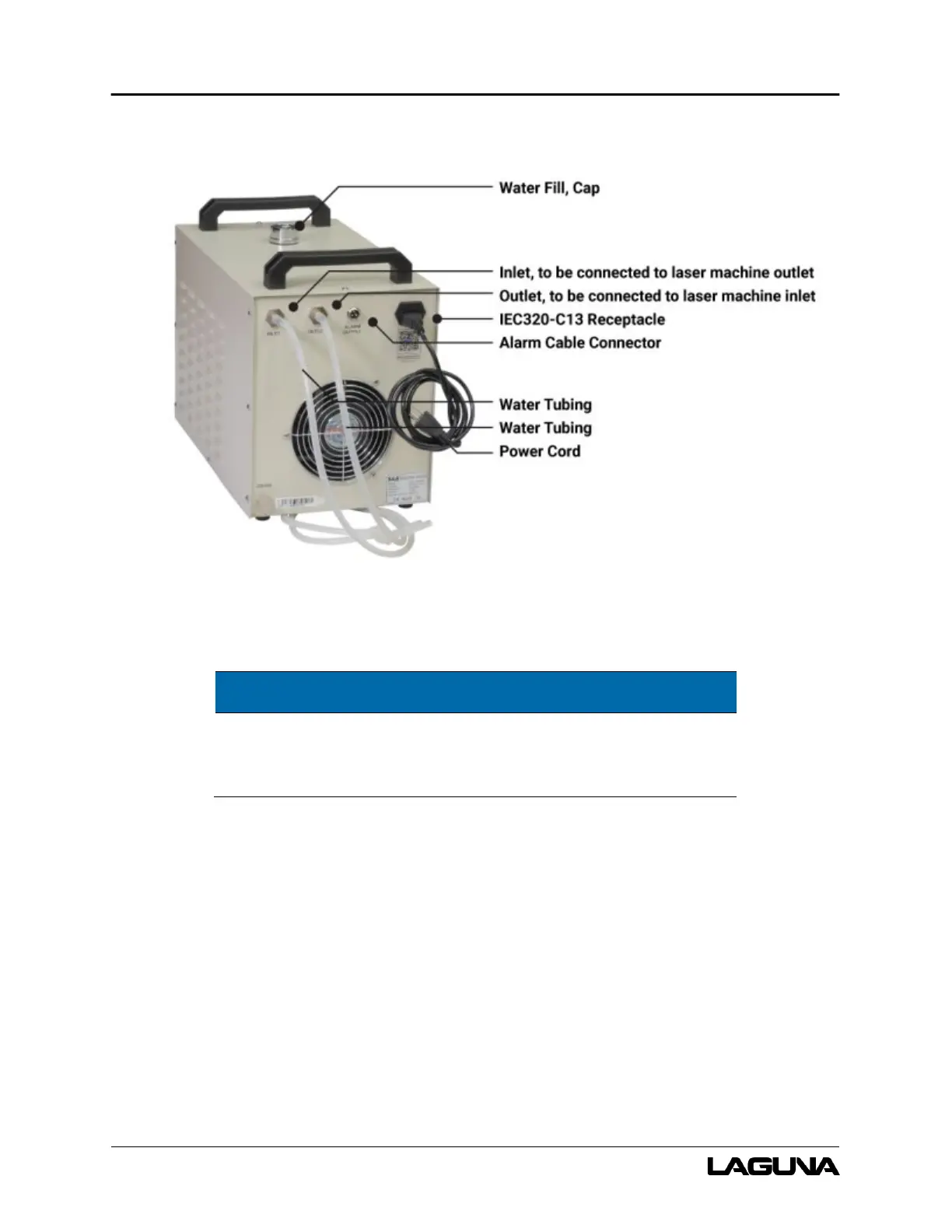

Figure 6-6: Water Chiller
NOTE
Seven (7) liters (1.85 Gal) of distilled or deionized water are
required to fill the chiller.
1. Measure out seven (7) liters (1.85 Gal) of distilled or deionized water and place to the side.
2. Place the chiller in its location.
3. Unscrew the cap and fill the unit with the seven (7) liters of water.
4. Press fit one end of the water tubing to the chiller outlet and the other end to the machine
water inlet.
5. Press fit one end of the water tubing to the chiller inlet and the other end to the machine
outlet.
6. Connect the alarm cable to the laser machine.
To Next Page
