PL1220 Owner’s Manual
36
6.4 Laser Tube

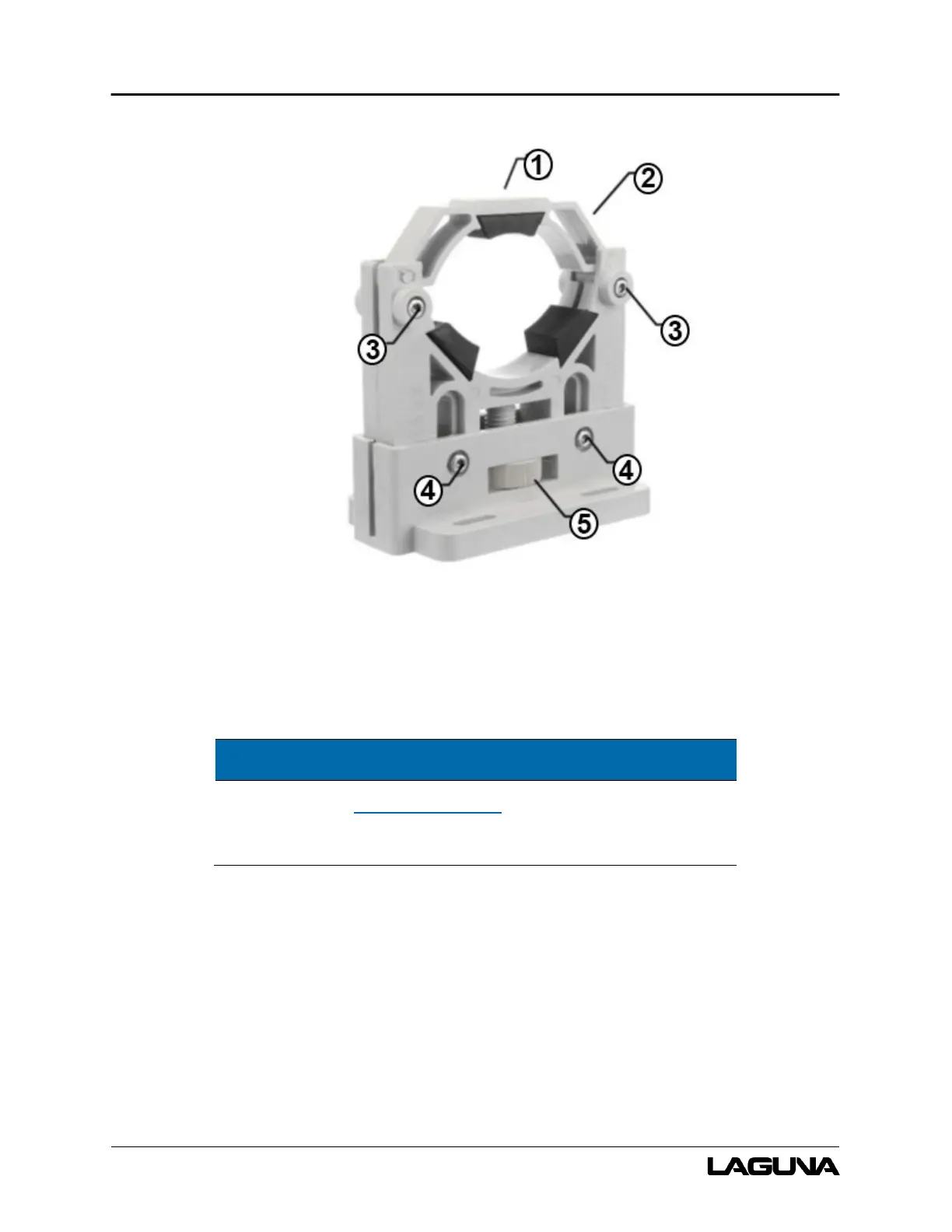

Figure 6-2: Laser Tube Mount
1. Tube top lock screw 3. Tube lock screws 5. Tube height adjustment dial
2. Top mount 4. Tube height lock screws
Reference the connection diagram in section 2.0 when
installing.
1. Open the rear panel of the laser machine. (Older models require unscrewing the screws
using an Allen key).
2. Remove the top mounts removing the tube lock screws using an Allen key.
3. Loosen the tube height lock screws using an Allen key.
