PL1220 Owner’s Manual
44

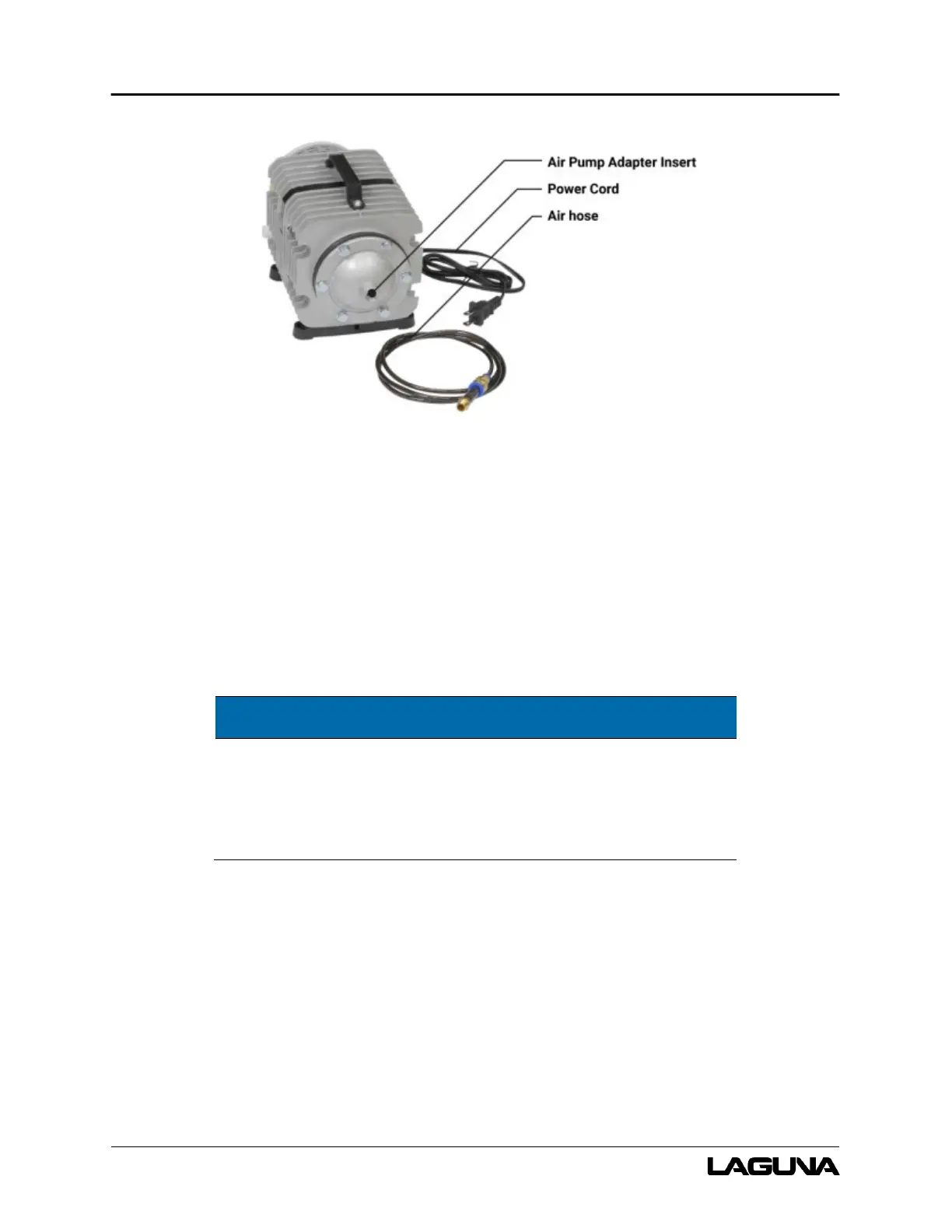

Figure 6-7: Air Pump
The air pump needs to supply air to the nozzle to direct fumes away from the focal lens.
Installation requires the air pump, quick set adapter, and a ¼ inch air hose.
1. Screw the air hose threaded fitting into the air pump adapter insert until it is hand tight.
a. Tighten the nut with a wrench. DO NOT overtighten the nut.
NOTE
Verify the air hose fits all the way into the adapter.
The connection should leak very slightly; this is normal.
2. Press fit the ¼ inch air hose into the connection on the back of the PL1220 machine.
3. DO NOT connect to power until setup is complete.
