Lakeshore 340 - Optional Model 2002 RJ-11 to DB-25 Adapter; Model 3012 Rack-Mount Kit

Lake Shore Model 340 Temperature Controller User’s Manual
10-4 Options and Accessories
43 mm
(1.69 inches)
15.8 mm
(0.63 inches)
55 mm (2.16 inches)
1
25
340-10-3.eps

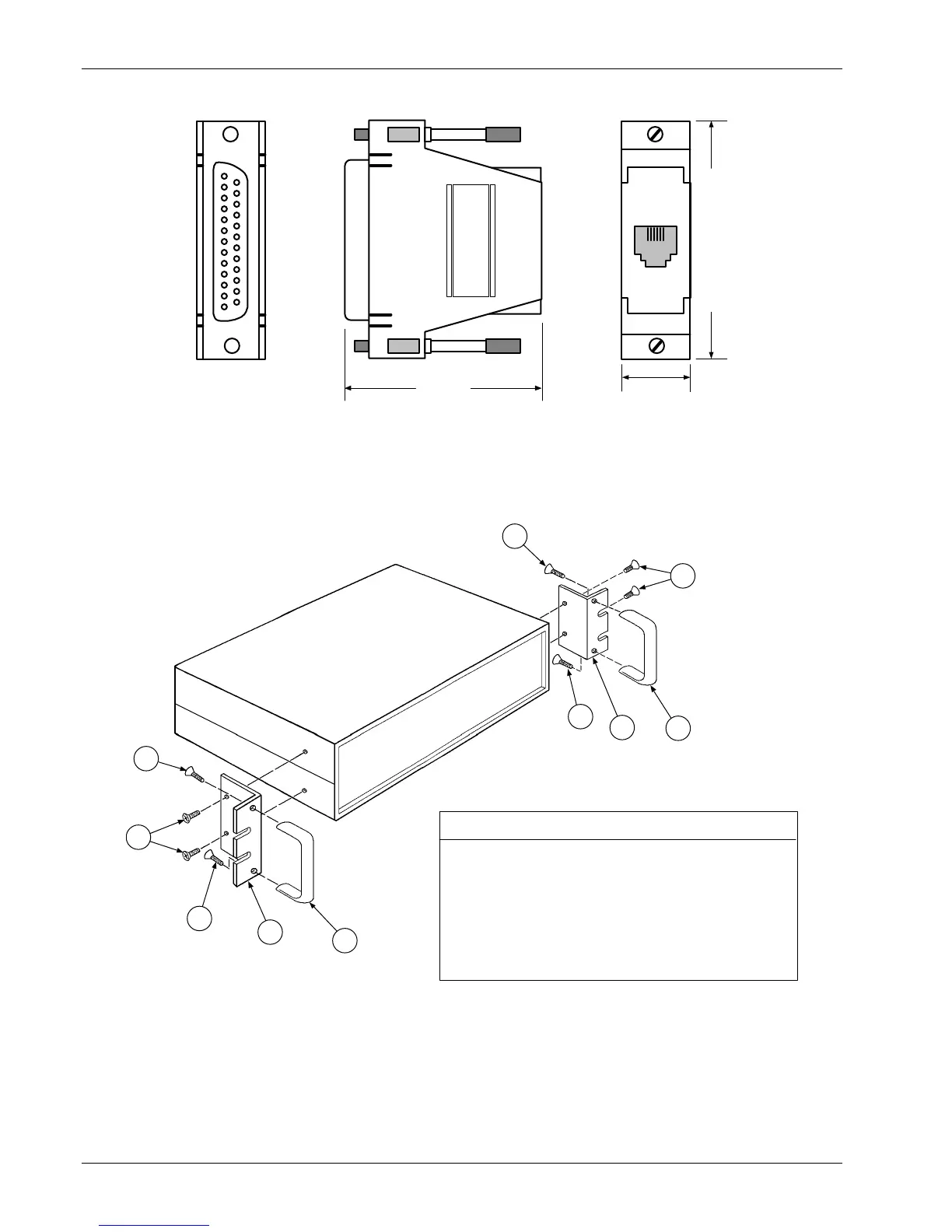

Figure 10-3. Optional Model 2002 RJ-11 to DB-25 Adapter
1 Rack Mount Ear 107-049 2
2 * Screw, 6-32 x 1/2 Inch 0-035 4
FHMS, Phillips
3 Rack Mount Handle 107-433 2
4 Screw, 8-32 x 3/8 inch 0-081 4
FHMS, Phillips
Item Description P/N Qty
* Remove and discard four screws from front.
Replace with four longer screws (Item 2).
NOTE
3
1
4
2
4
4
2
3
4
1
340-10-4.eps
Figure 10-4. Model 3012 Rack-Mount Kit
