Lakeshore 340 - ANALOG out 1 and 2 BNC Rear Panel Connector Details; SENSOR INPUT a and B Rear Panel Connector Details; HEATER OUTPUT Rear Panel Connector Details

Lake Shore Model 340 Temperature Controller User’s Manual
11-4 Service
PIN DESCRIPTION
1
2
Analog Output, Center Conductor
Ground, Connector Shell

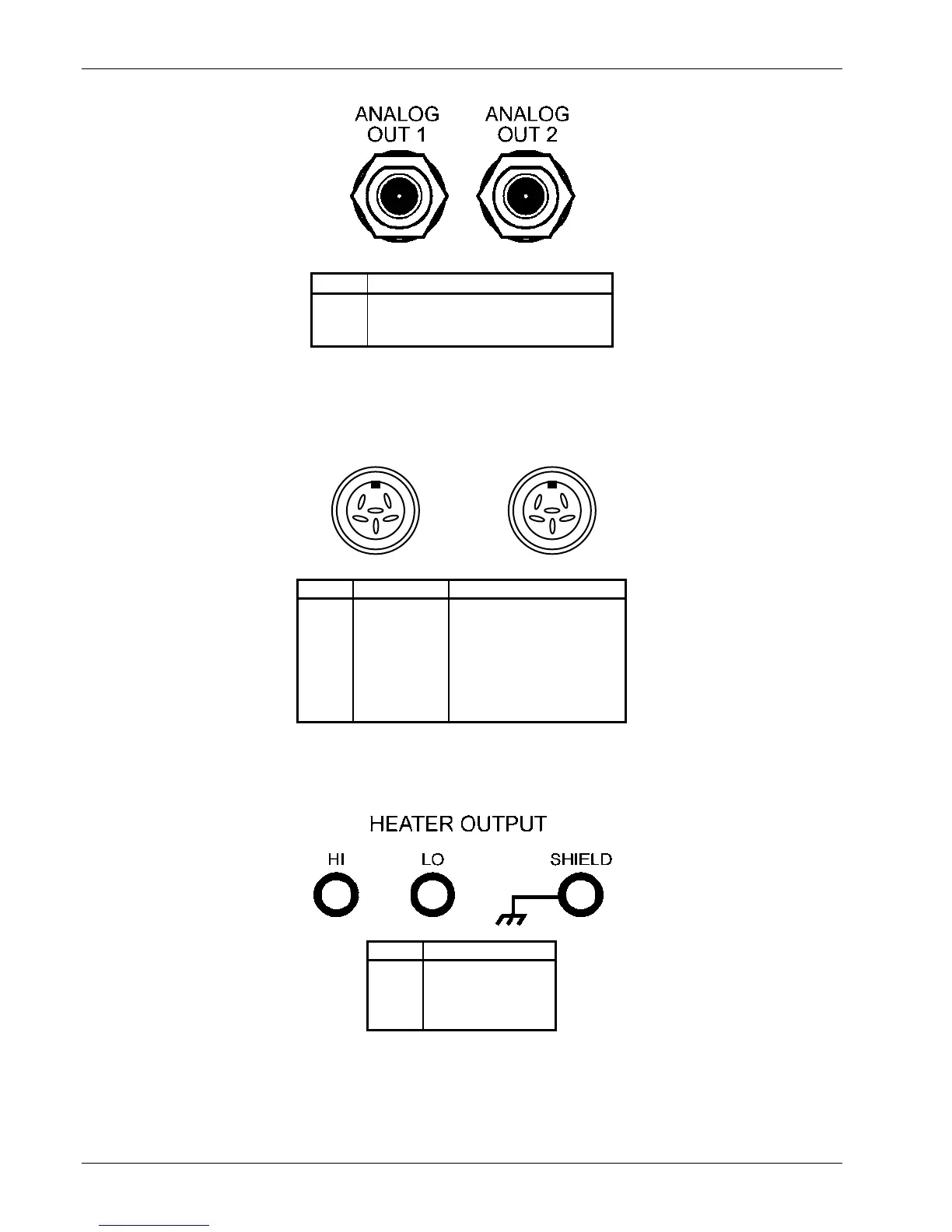

Figure 11-4. ANALOG OUT 1 & 2 BNC Rear Panel Connector Details
INPUT A INPUT B
I-
I+
V-V+
I-
I+
V-V+
1
2
3
4
5
6
1
2
3
4
5
6
PIN SYMBOL DESCRIPTION
1
2
3
4
5
6
I–
V–
none
+V
+I
none
– Current
– Voltage
Driven Shield or Guard
+ Voltage
+ Current
No Connection
Figure 11-5. Sensor INPUT A & B Rear Panel Connector Details
PIN DESCRIPTION
1
2
3
HI
LO
SHIELD
Figure 11-6. HEATER OUTPUT Rear Panel Connector Details
