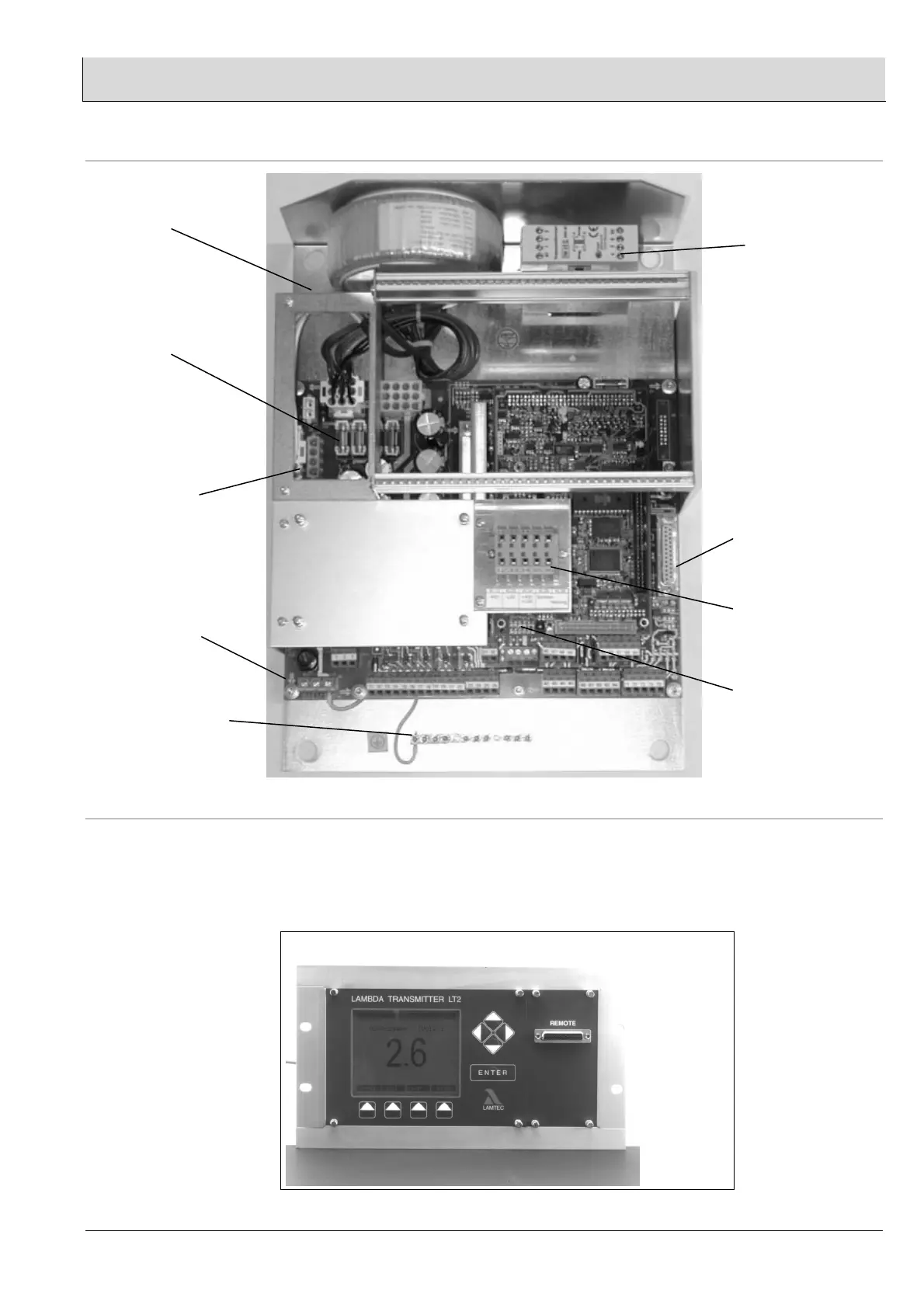

4.4.2 On mounting pate Type 657 R 1032
4.4.3 Display and operating unit for panel installation
For use with the LT2-KS1D-K on mounting pate.
For installation in the control cabinet door.
Max. cable length 1m.
Type 657R0831T
Buffer amplifier for
converting the
COe signal from
mV into mA
(no longer required
from January
2007)
Connection for
remote display
software (optional
extra)
Transformer
for probe and
electronics
Supply voltage
commutation
AC115V/AC230V
NOTE Replace fuse
Fuses
Mains
Protective earth
terminal for cable
screening
Internal display and
control elements:
LEDs
Maintenance switch
Multi-function
pushbutton
Probe connection
Slot for relay module
657R0857 (optional
extra)
