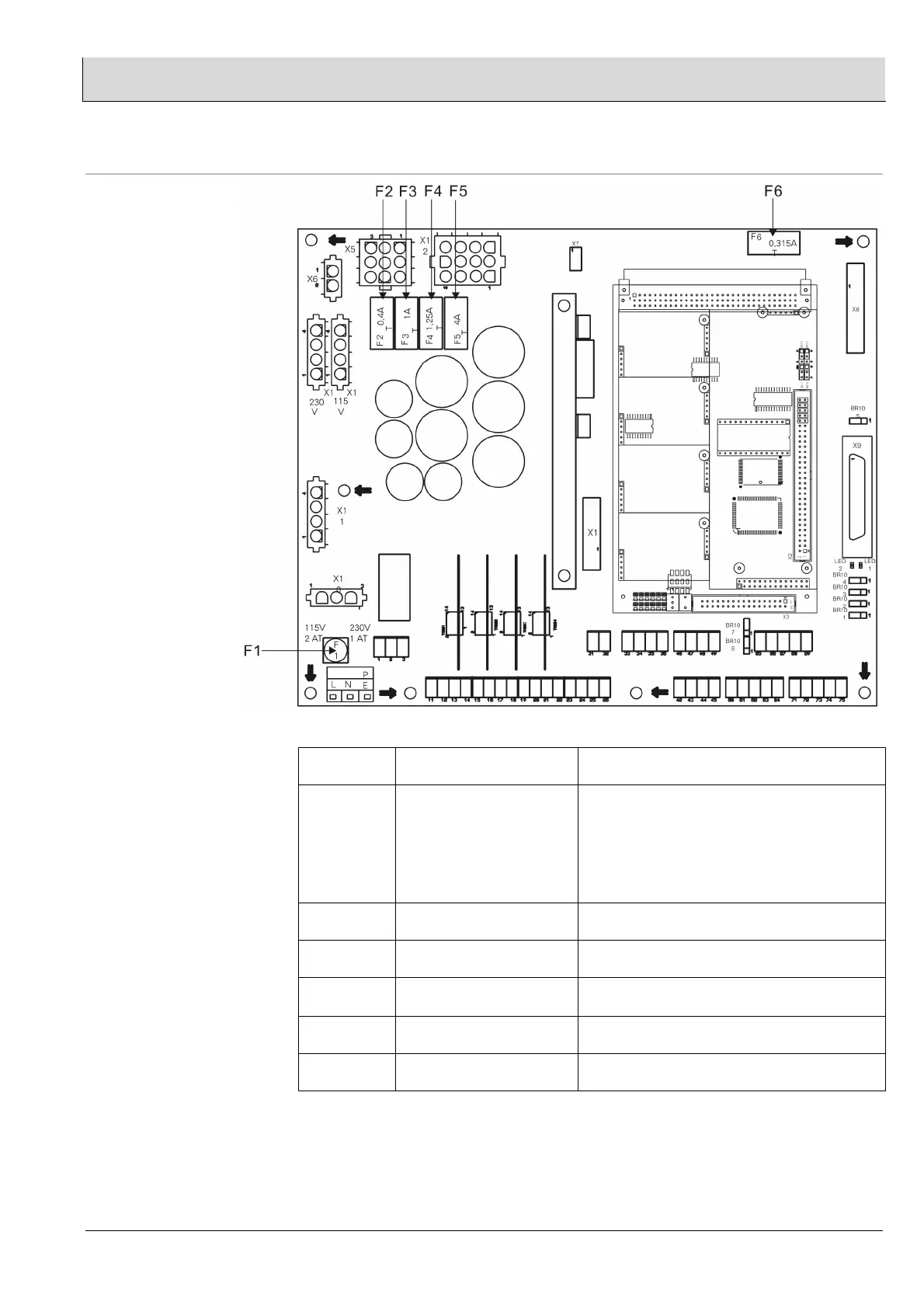

10.6 Fuses
Designation Value Function
Fuses: F1 1A slow-blow for 230 V,
2A slow-blow for 115 V
1,6A slow-blow for 230V
when option “heating for
wall mounting case”
Primary fuse
F2 0.4A slow-blow Probe measurement electronics
F3 1A slow-blow 12 V for display background illumination
F4 1.25A slow-blow
± 5 V supply for processor board
F5 4A slow-blow Probe heater and 24 V supply
F6 0.315A slow-blow LAMTEC SYSTEM BUS
