Lamtec LT 2 - Jumpers

10 Appendix
96

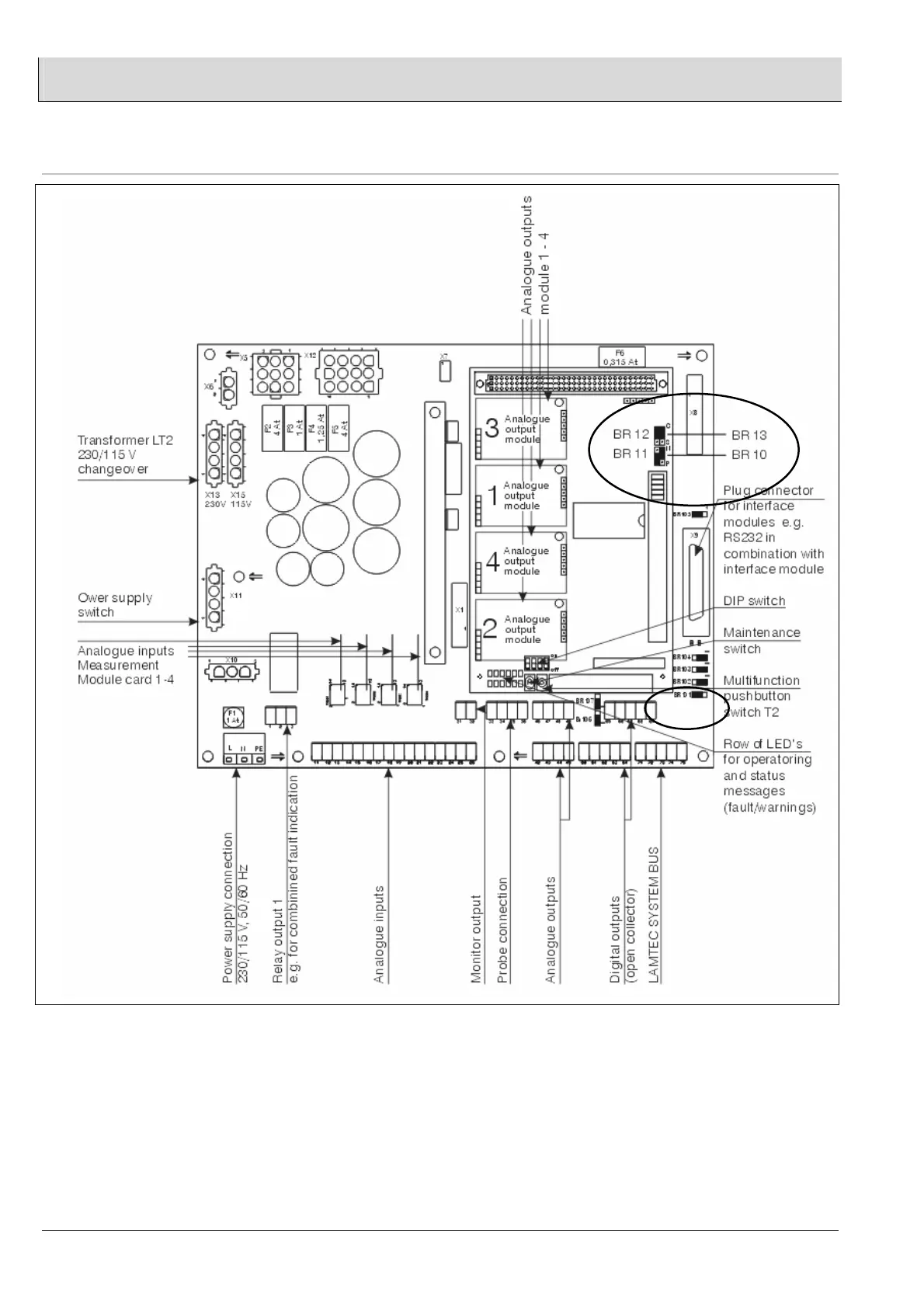

10.7 Jumpers
LAMTEC SYSTEM BUS BR101 on mainboard: Selection of LSB termination resistor :
1-2 disable
2-3 enable
BR12 and BR13 on processor board: to position “C”
Digital inputs: BR106, 107: Setting 1-2: Digital inputs based on device
potential.
Setting 2-3: Digital inputs electrically isolated.
