115
10 Appendix

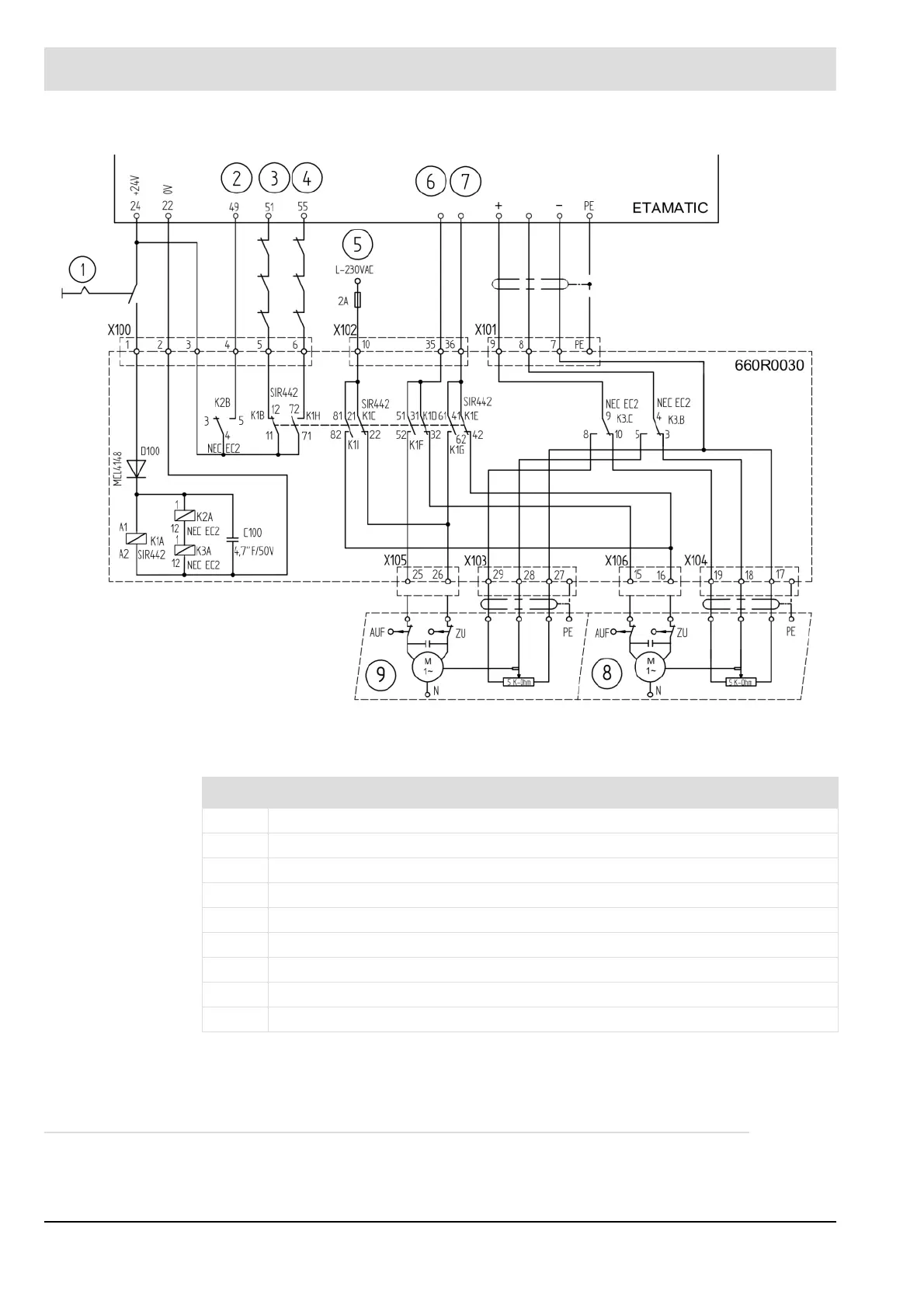

Fig. 10-2 Circuit diagram relay module 660R0030
Legend:
10.4 Changing Control Drives / Potentiometers
10.4.1 How to replace a motor with LAMTEC pre-calibration
Replacing a pre-calibrated motor with another pre-calibrated motor is easy. Normally there are
no burner adjustments necessary after the change.
No. Description
1 Fuel selection
2 Fuel selection
3 Safety interlock chain oil
4 Safety interlock chain gas
5 L 230VAC, delay fuse provided
6 Open
7 Close
8 Control drive oil
9 Control drive gas
