10 Appendix
Selective list of Turck NAMUR sensors

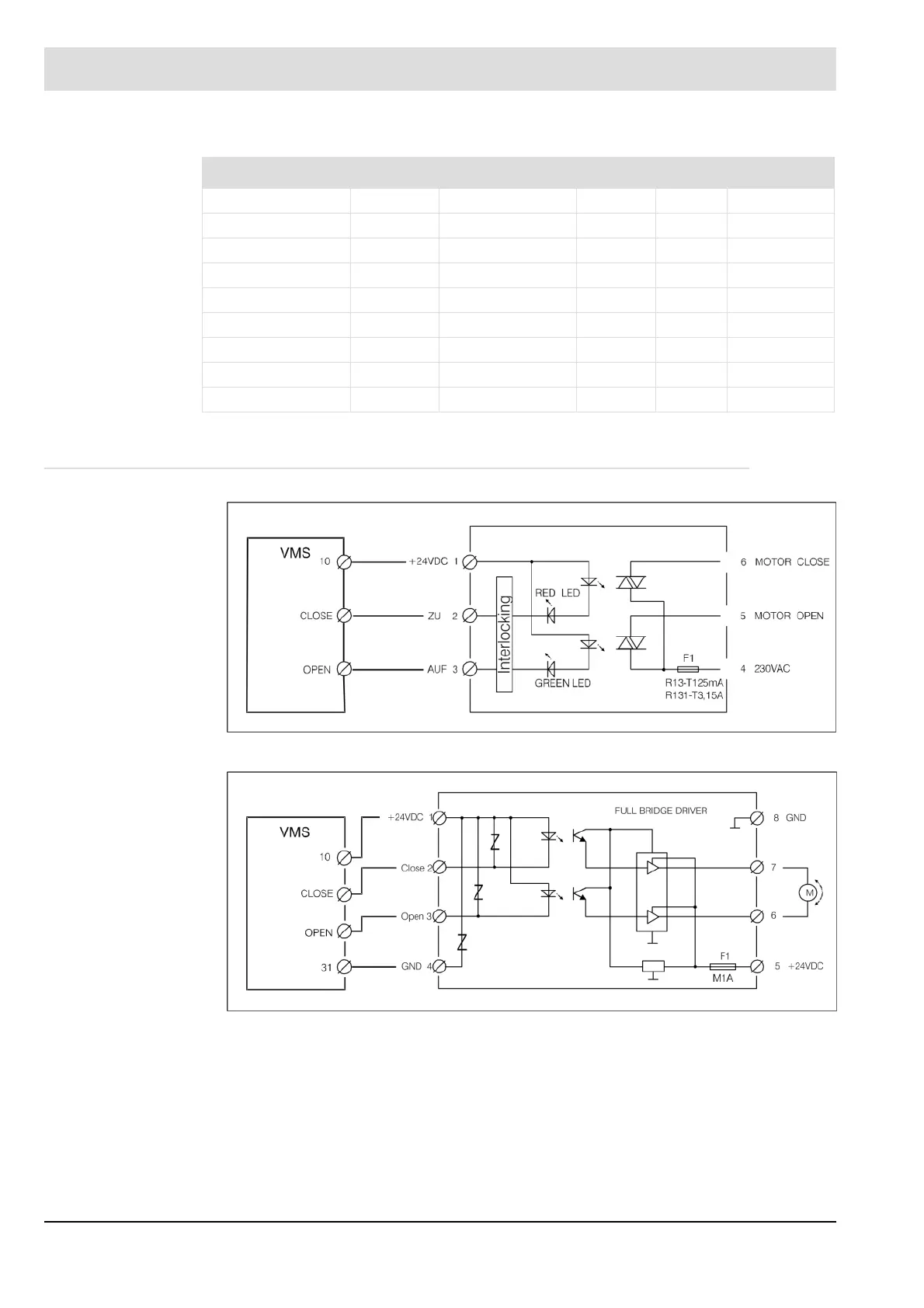

10.10 Connection Diagram Relay Modules
Fig. 10-15 Relay module type 660 R 0013 / 660 R 0131
Fig. 10-16 Relay module type 660 R 0019
Type sn [mm] sn x 0,8 [mm] D [mm] f [Hz] Installation
Bi1-EG05-Y1 1 0,8 5 5.000 flush
Bi1,5-EG08K-Y1 1,5 1,2 8 5.000 flush
Ni3-EG08K-Y1 3 2,4 8 5.000 non-flush
Bi2-G12-Y1 2 1,6 12 5.000 flush
Ni5-G12-Y1 5 4 12 2.000 non-flush
Bi5-G18-Y1 5 4 18 1.000 flush
Ni10-G18-Y1 10 8 18 500 non-flush
Bi10-G30-Y1 10 8 30 500 flush
Ni15-G30-Y11 15 12 30 200 non-flush
