33
6
Commissioning
6.3

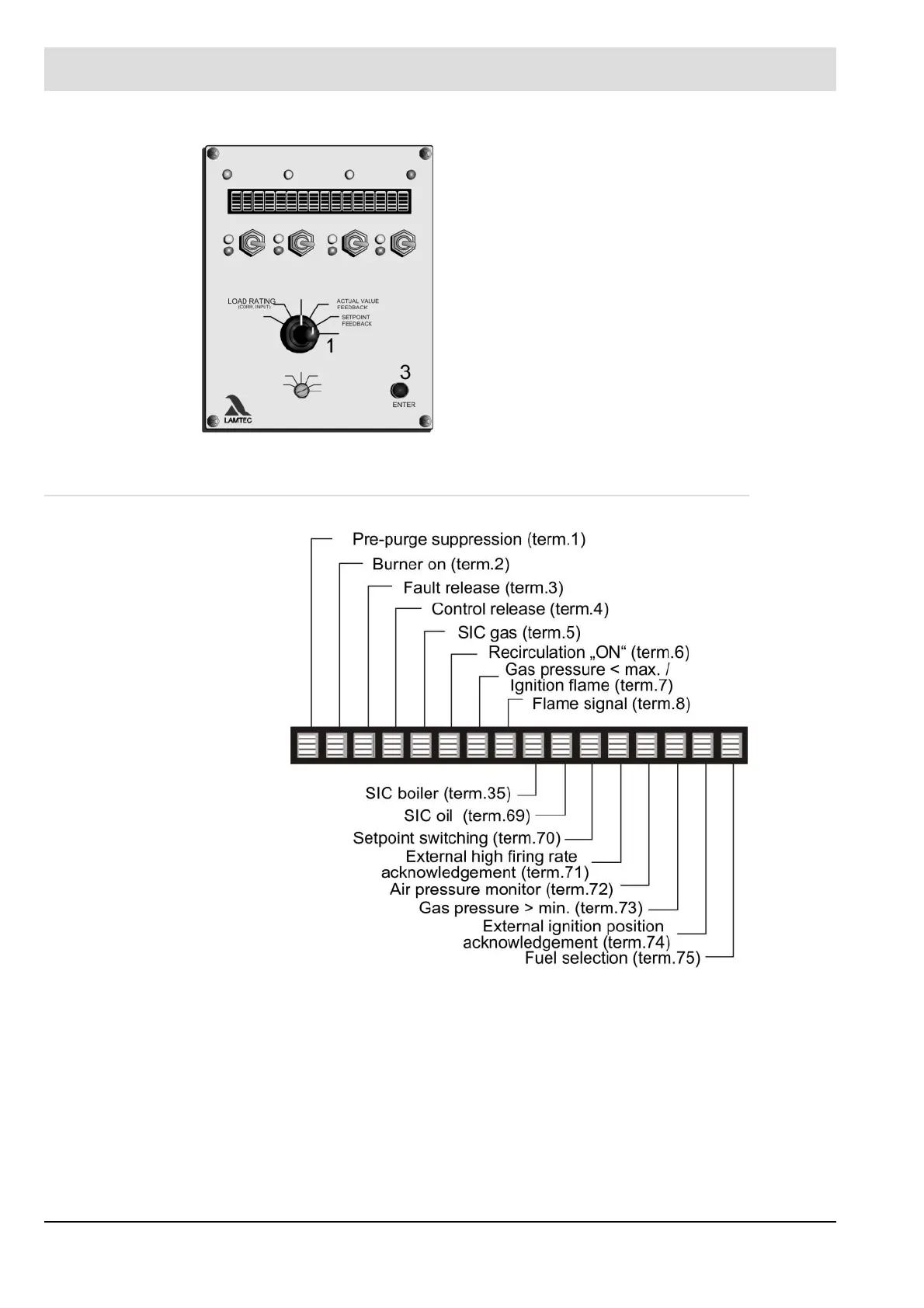

Significance of Digital Display
= Signal present
= Signal not present
On a 4 channel unit:
T
urn selector switch (1) to DIGIT
AL INPUTS
On a 5 channel unit:
T
urn selector switch (1) to channel 5 display
and
select acceptance (3)
the display shows status of the digital inputs
– = input not activated
= input activated
33
