52
6

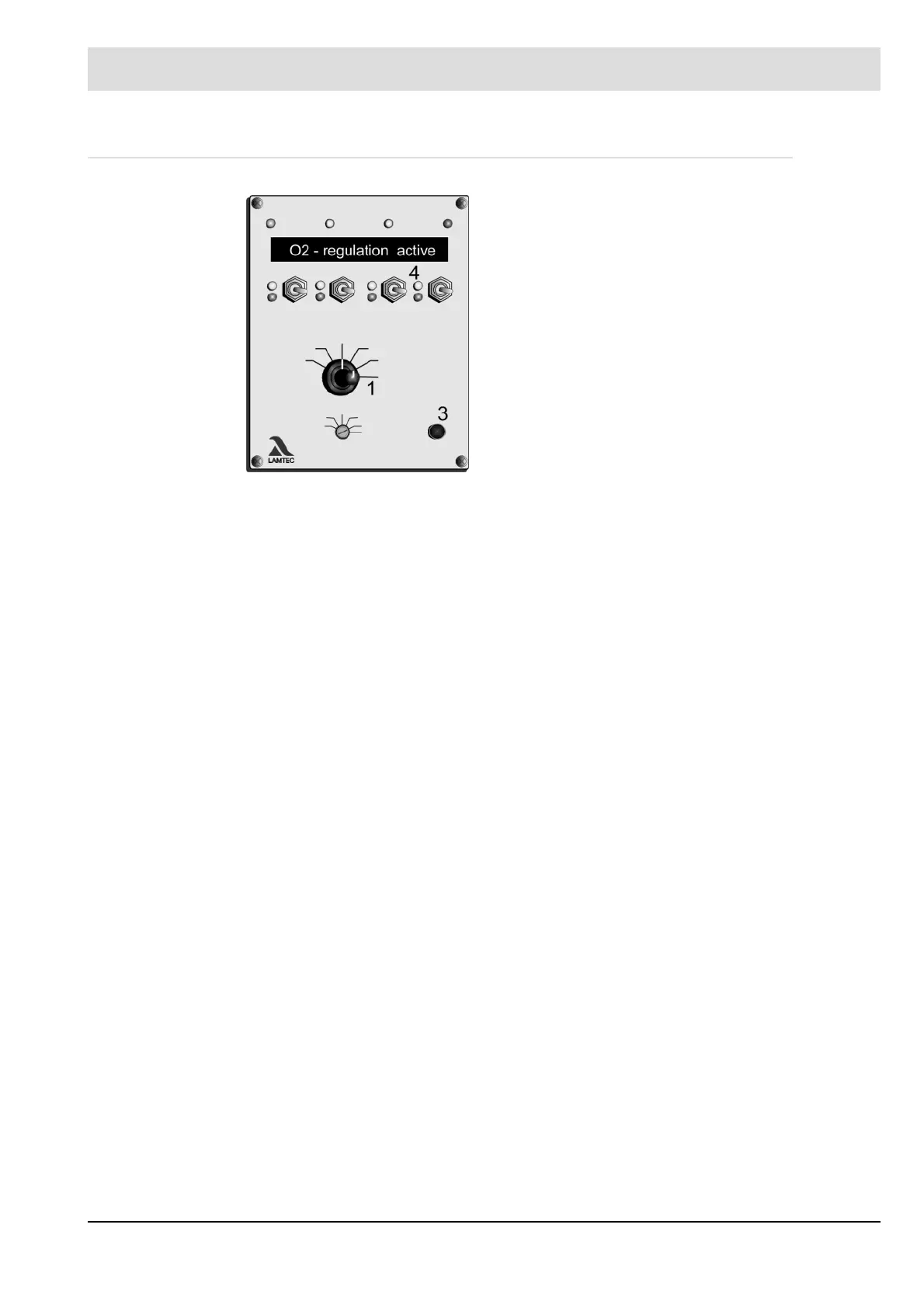

Commissioning
6.6.4.2
Calling up O
2
T
rim T
ext Messages
Switch display to O
2
-trim.
T
urn selection switch (1) to ST
A
TUS,
Push channel key 3 (4) upwards
Press the ENTER key (3) to call up the indication.
Back
press ENTER key again (3),
or turn selection switch (1) to another position.
52
