135
10
Appendix

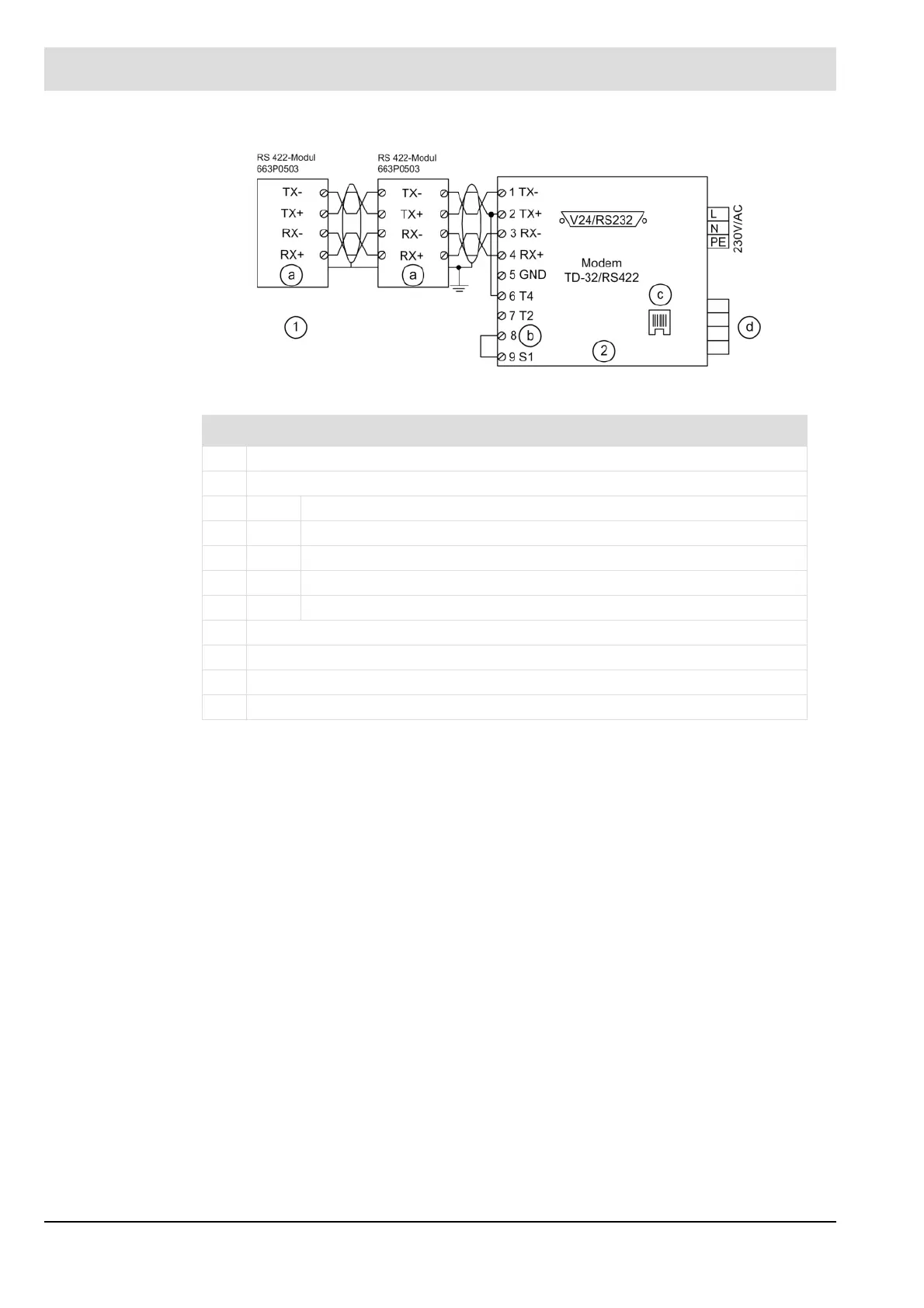

Fig. 10-19 connection diagram modem for remote control
No.
Description
1
with termination resistors, setting via DIP switch
2
adjustment of the modem’s DIP switch:
SW1
dial-up connection 0000
SW2
all without function 0000 0000
SW3
tel. connection, 2-wire cable 1000 0000
SW4
19200 baud, 8N 1
1
10 1
100
SW5
automatic speed adaptation 1
1
1
1 0000
a
shield
b
2/4 wire
c
telephone line
d
leased line
135
137
