65
6
Commissioning

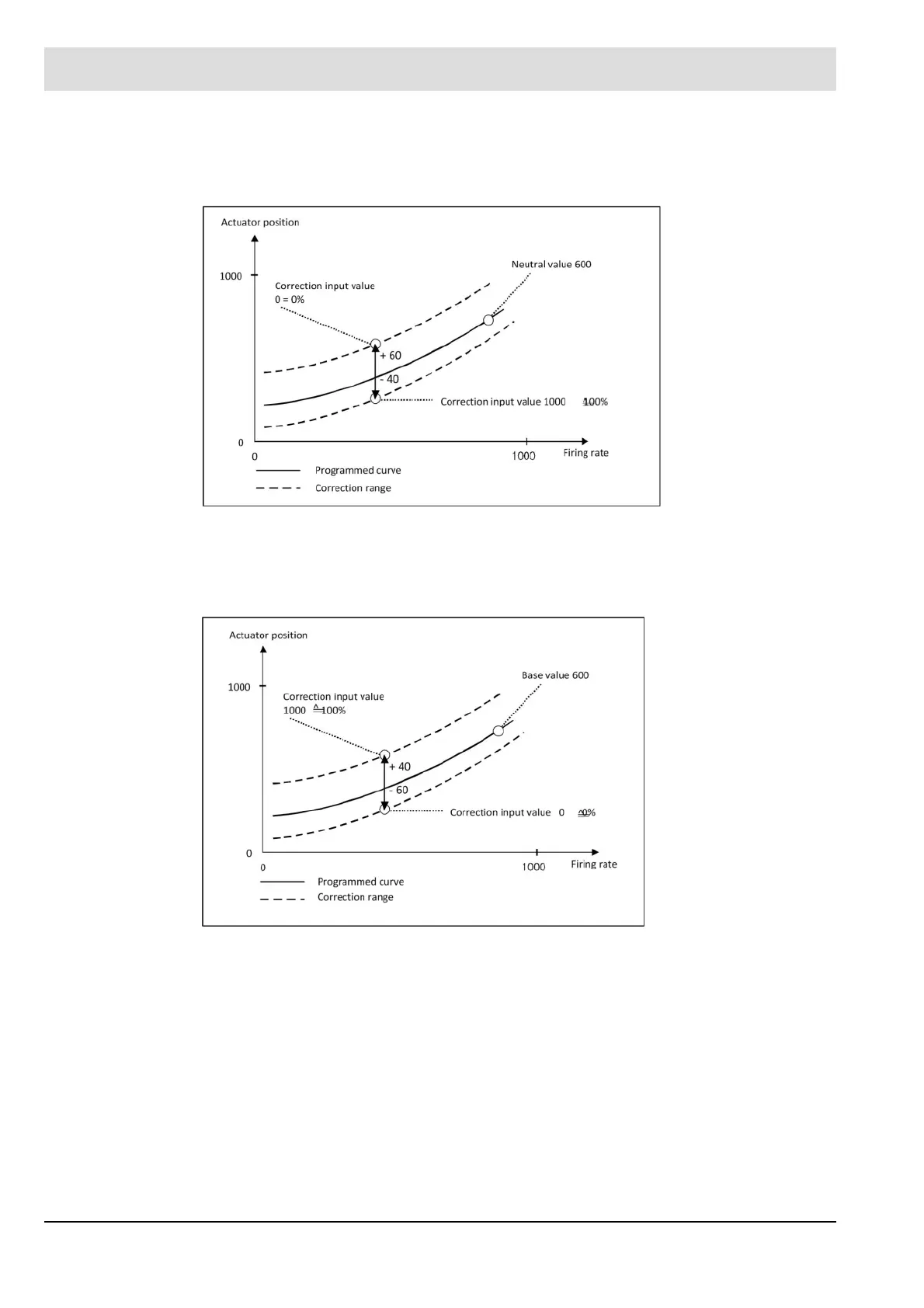

Examples and illustrations:
Correction mode + 60 % ... - 40 % (recommended for air correction)
+ 60 % corresponds to correction input value 0
- 40 % corresponds to correction input value 1000
Neutral value 600
60%
Correction mode - 60 % … +40 % (recommended for fuel correction)
- 40 % corresponds to correction input value 0
+ 60 % corresponds to correction input value 1000
Neutral value 400
40%
65
67
