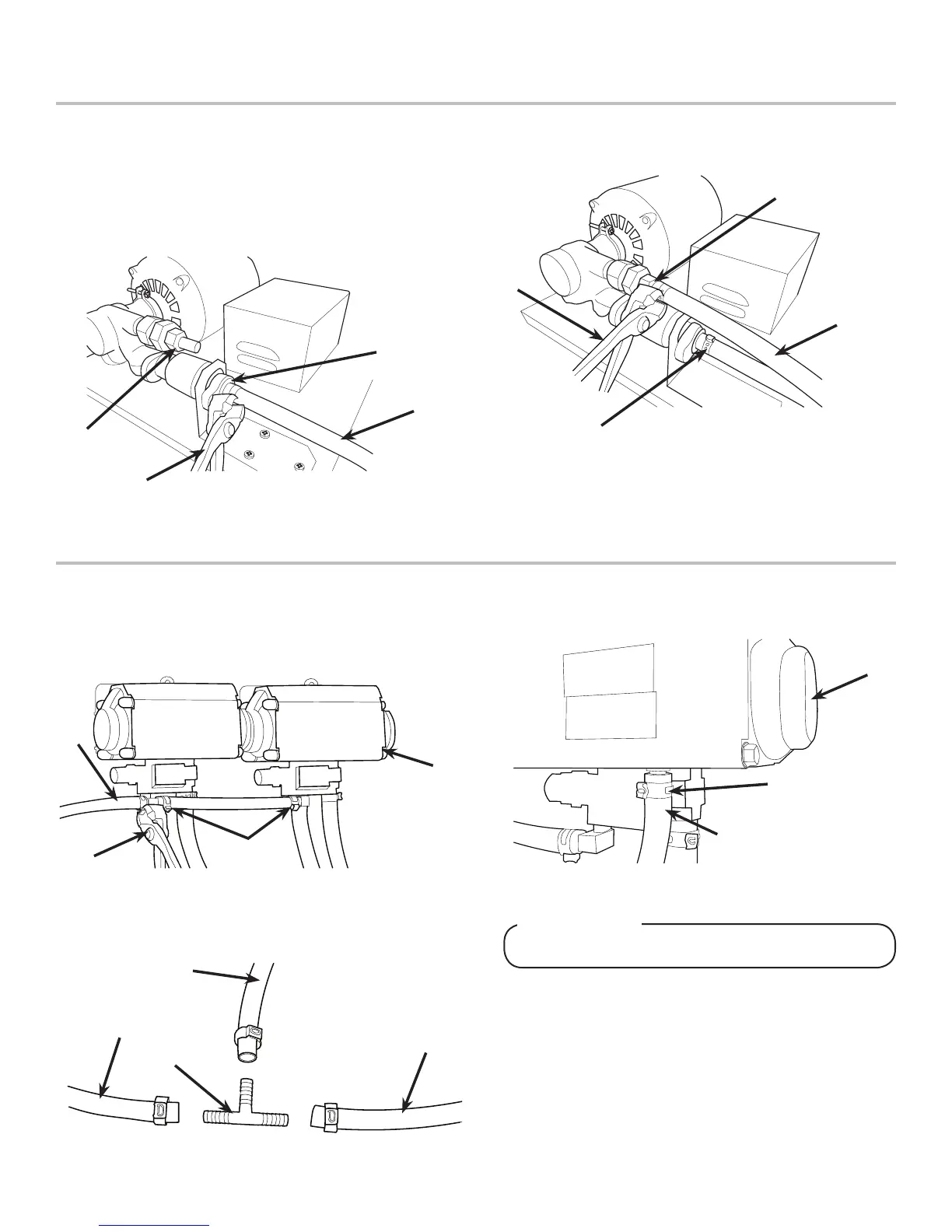

Remote Pump Installation
1. If necessary, install water booster (Lancer PN MC-163172)
between water supply and the unit.
2. Using tubing cutters, cut water line and install tee tting, then
route appropriate tubing from the remote pump location to
the tee tting at water line.
3. Connect line from tee tting at water line to the remote pump
deck inlet regulator.
4. Complete the carbonated water line connection, installed in
the previous section, between the remote pump deck and
carbonated water inlet on the unit.
5. Install a shut-o󰀨 valve in the water line feeding the deck. If a
separate water line is run for plain water, ensure that it also
has a shut-o󰀨 valve.
A
B
C
A. Oetiker Pliers C. Pump Inlet
B. Line to Tee Fitting D. Pump Outlet
D
A
A. Oetiker Pliers C. Pump Inlet
B. Line to Unit D. Pump Outlet
B
C
D
Installing Remote Syrup Pumps - Bag In Box
A
B
C
A. Syrup Pump
B. CO
2
Line
C. Fitting
D. Oetiker Pliers
D
1. Install BIB rack and remote pumps according to
manufacturers’ instructions.
2. Once pumps and BIB rack are installed, measure and cut
tubing to length between the pump CO
2
inlets, then connect
tubing to all pumps.
3. Using tubing cutters, cut any pump CO
2
supply line and
install tee tting, then route appropriate tubing from the CO
2
supply to the tee tting at syrup pumps.
A
B
C
A. Syrup Pump Outlet
B. Syrup Pump
C. Fitting
4. Connect tubing from dispenser syrup inlet to the syrup pump
outlet tting. Repeat for each syrup line and avor injector
line.
A. Tee Fitting
B. Line to Syrup Pump
C. Fitting
D. Line to CO
2
Supply
A
B
C
D
Use proper connector for syrup manufacturer
! ATTENTION
5. Install BIB (bag in box) connectors onto the syrup pump inlet
tubing.
6. Connect syrup BIBs to connectors. Repeat for each syrup
line/pump and each avor shot line/pump.
