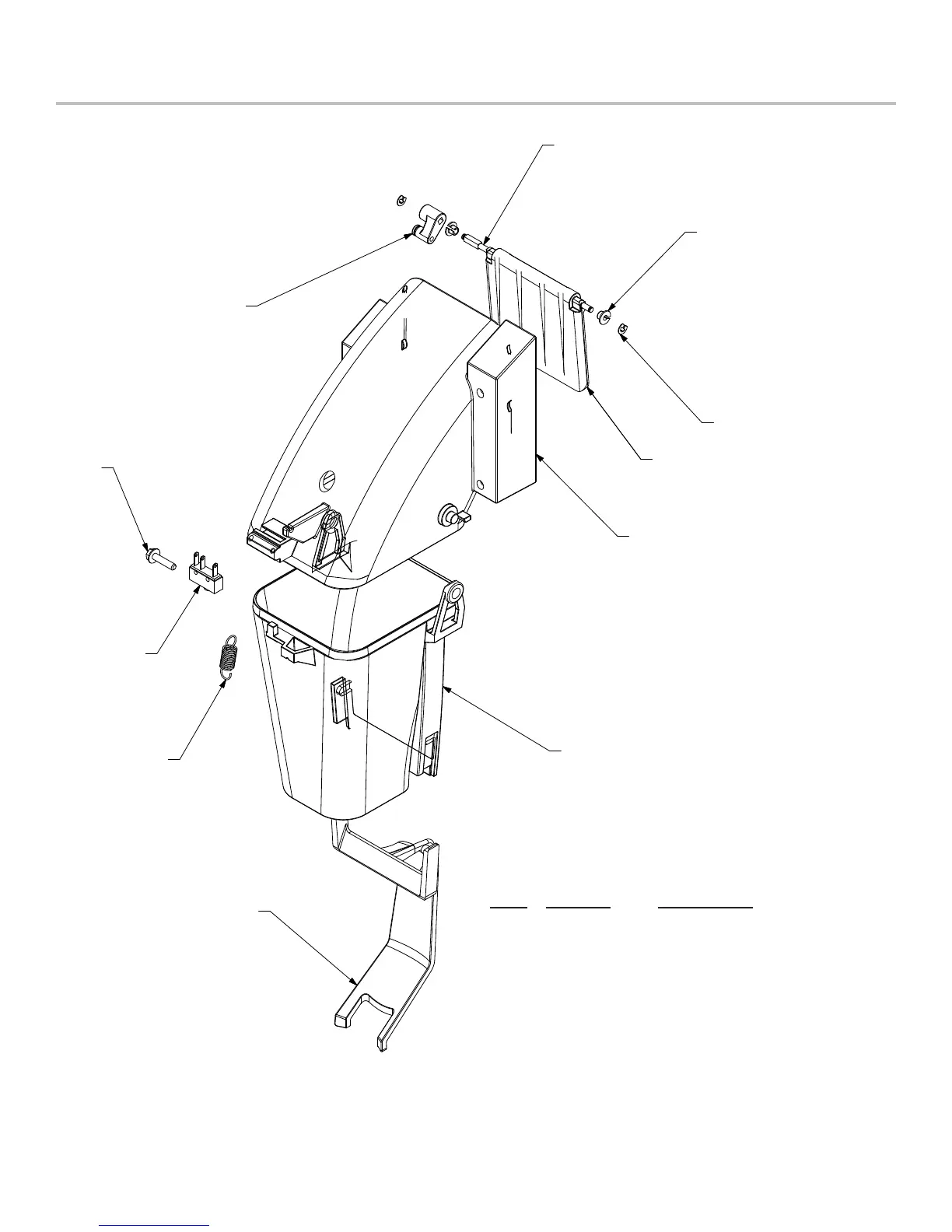

lancer FS 30 - Ice Chute Assembly

24
10
11
4
6
5
3
2
1
7 x2
9 x2
8
Item Part No. Description
1 05-2257/01 Chute, Upper, IC
2 05-2905 Chute, Lower, ACIB
3 05-0999/02 Lever, Chute, IBD
4 04-0268 Scr, 6-19X.625 LG, PLSTI, HHSW/W
5 03-0241 Spring, Chute, IBD
6 12-0244 Switch, SPST, 5A, 250V, MDM
7 05-0359/01 Bushing, .123 ID x .187 OD, NYLN
8 05-0928/02 Trap Door, IBD
9 03-0113 Ring, Retaining
10 05-0546 Lever, Door
11 10-0732 Shaft, Ice Chute Door, IC
Ice Chute Assembly
