Setting Description
Pump In Integral T the pump is switched on or o. No
pump levels can be set.
In the Integral XT the pump level can be entered
with which the segment is to be processed.
S1, S2, S3 The switching state (o or on) of a contact module
(if installed) can be entered here. Contact modules
are available as an accessory.
Examples of the functions of a contact module
n Functions of the inputs
 Set fault
 Set standby
 Control programmer
 Control change mode (2 dierent set temperatures)
 Regulate internal or external control
n Functions of the outputs
 Signal various error states
 Signal standby
 Specify position with respect to a temperature window (inside or
outside)
 Specify programmer status
 Signal refilling

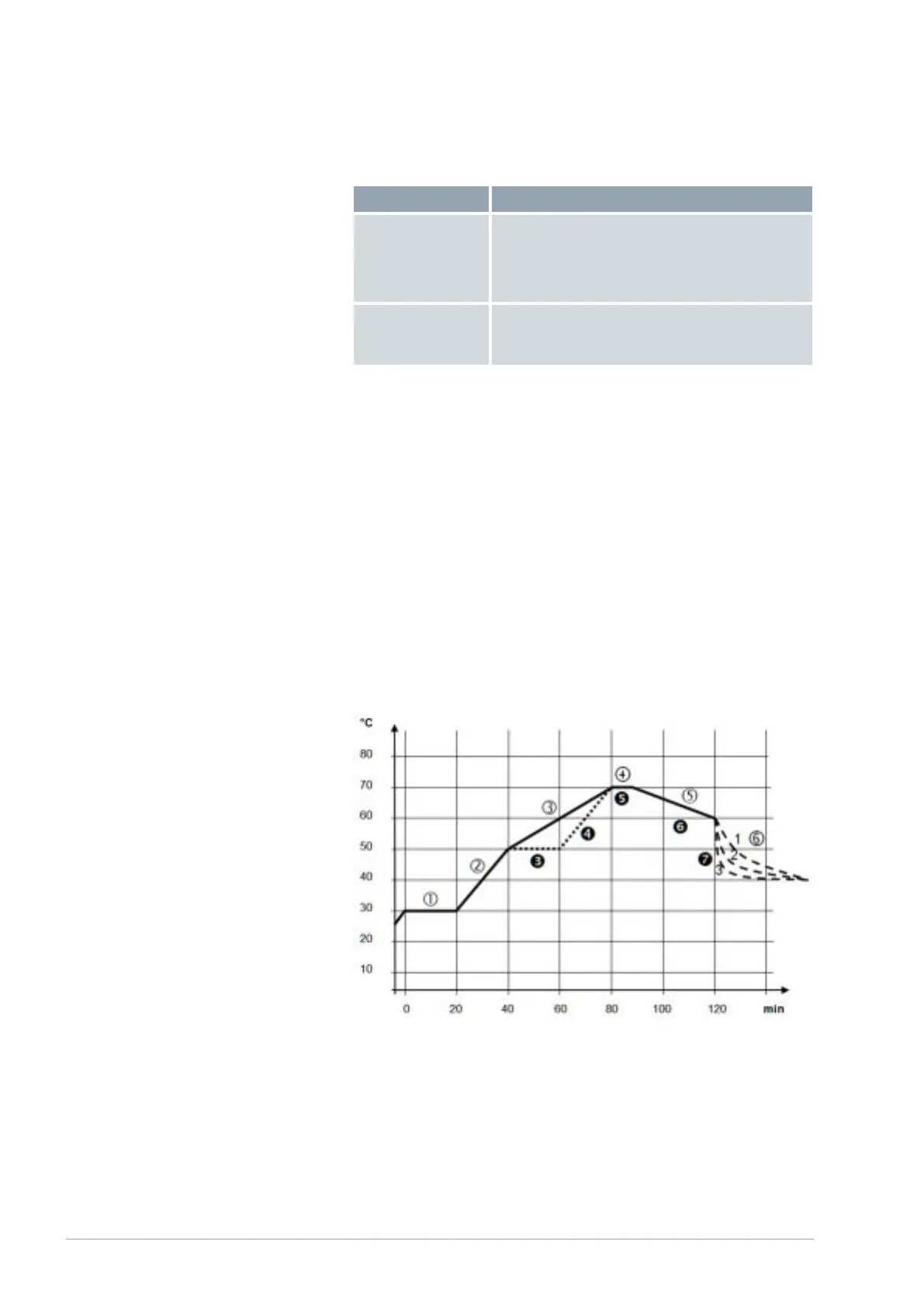

Fig. 63: Program example
The graph shows an example of a reprogrammed set temperature profile.
The cooling time in the graph varies depending on the device type, consumer
and so on. In example segment number 2, 50 °C should be reached within
20 minutes.
The original values in the first table below (before) are represented by a solid
line, while the values in the edited profile in the second table (after) are
represented by a dashed line.
Editing program examples
