Lauda IN 130 T User Manual

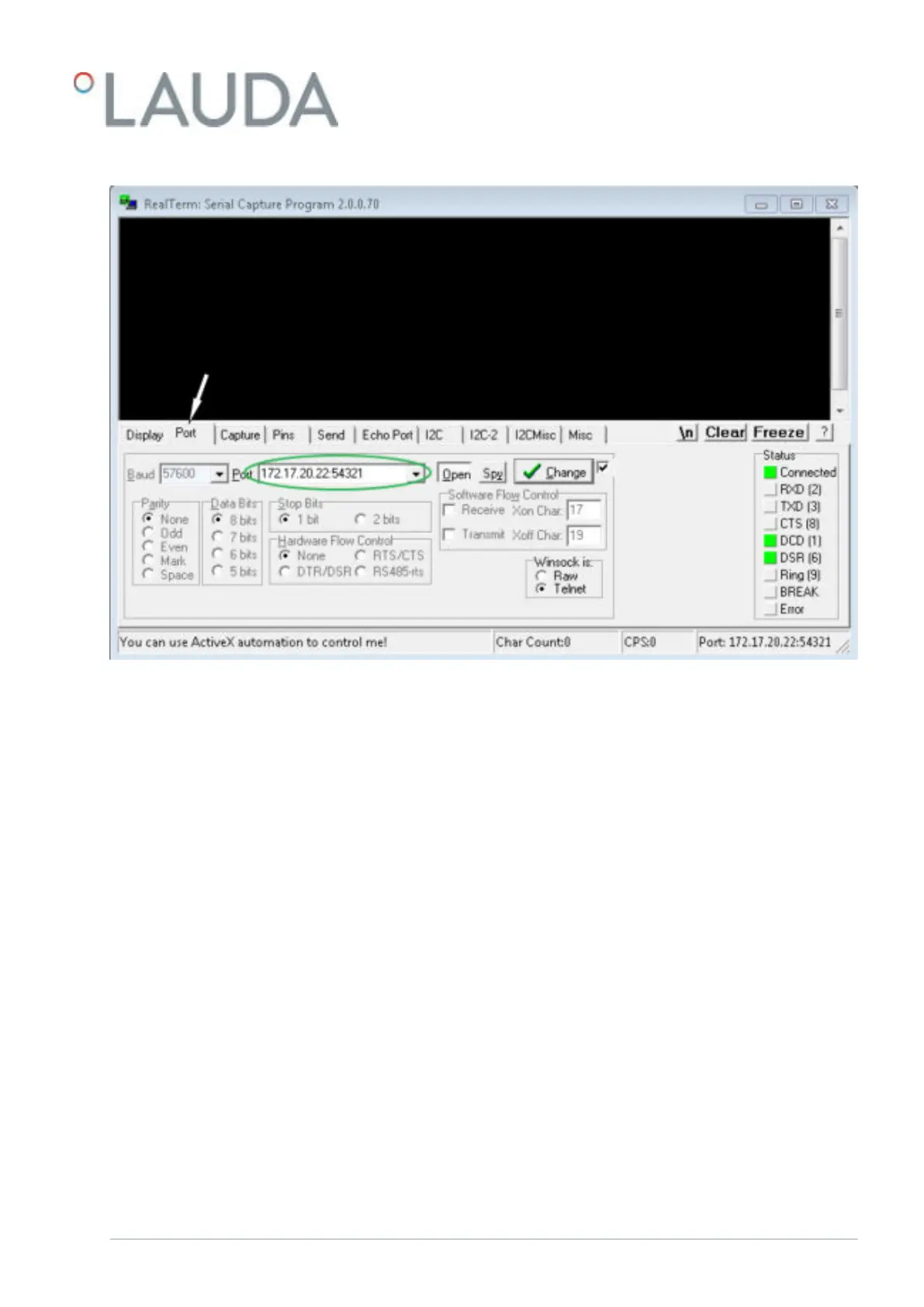

Fig. 23: Entry in the Port field
3. Enter the configured IP address and port number of the Ethernet
interface on the constant temperature equipment in the Port tab.
When you are doing this, be sure that the IP address and port number
are separated by a colon.
You can enter the serial number of the constant temperature equip-
ment instead of the IP address.
4. Then press the [Open] button.
5. Open the Send tab.

Now that the program has been configured, the actual test can
begin.
6. Place a checkmark under +CR and +LF .
V6
Integral Process Thermostats and High-Temperature Thermostats 51 / 198
