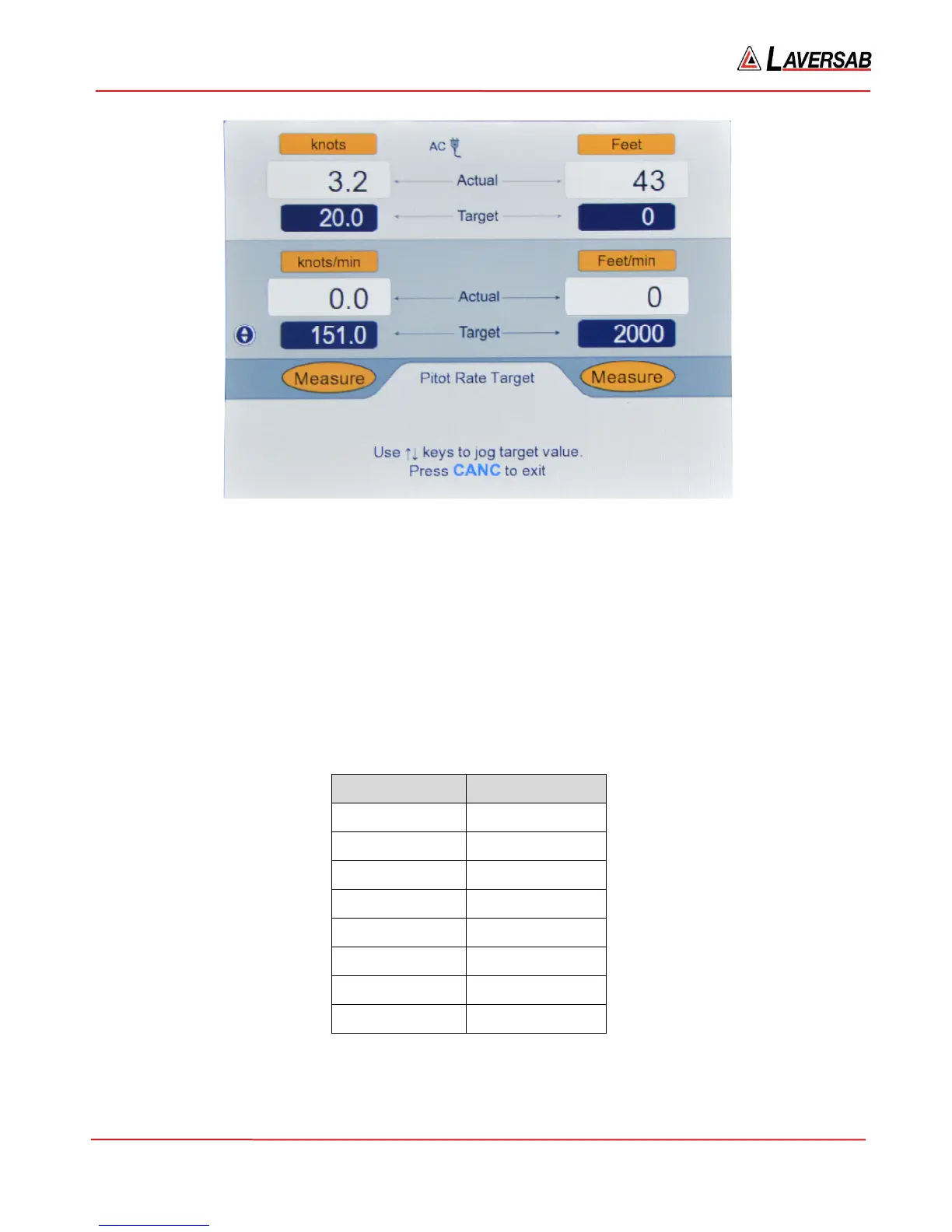

Figure 3.12 : Jog the Pitot Rate Target value
In this screen, the Upper section has a new symbol (with Up & Down arrows) to the left of the Pitot Rate
Target value field. This indicates that the Pitot Rate Target value can be jogged up or down repeatedly, in
steps of 1 knot/min, using the Arrow keys, until CANC is pressed. In this case, since the Up-Arrow key
was pressed, the Pitot Rate Target value was incremented to 151.0 knots. Press Up-Arrow one more time
and the value will change to 152.0. Press Down-Arrow two times and the value decrements to 150.0.
Note: It is not possible to Jog a Rate Target value if it is blinking.
The incremental value for the Jog feature varies depending on Pitot Rate units and is shown in the table
below.
Pitot-Rate Units Jog increment
knots/min 1.0
km/hr/sec 0.1
mph/min 1.0
inHg/min 0.01
mbar/min 0.1
psi/min 0.01
mmHg/min 0.1
kpa/min 0.01
