3.6 CHANGING MODES
Note: On power-up, both Pitot and Static are in Measure mode.
Pitot Mode
The Pitot mode can be changed when the key# symbol (4) is displayed to the left of the Pitot mode field.
Press key ‘4’ on the keypad and the Lower section of the display will appear as shown in Figure 3.15
below.

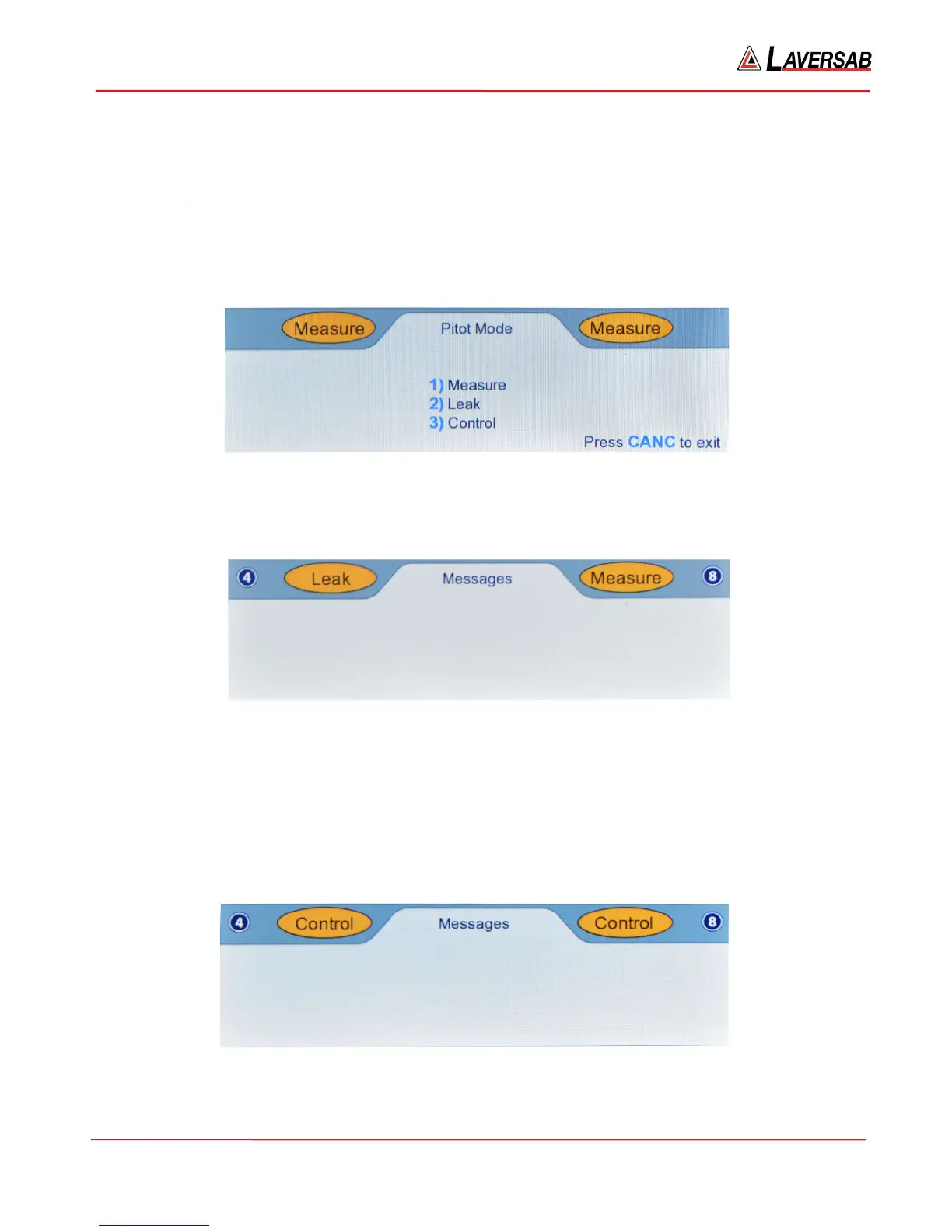

Figure 3.15 : Select Pitot Mode
Press the key with the # (shown in blue) associated with the mode to be selected. Press ‘2’ to select Leak
mode. The screen appears as shown in Figure 3.16 below.
Figure 3.16 : Pitot Leak mode
‘Leak’ will be blinking in the Pitot mode field, waiting for either GO or CANC to be pressed. (Caution:
Do NOT press GO at this moment). Pressing GO will activate Pitot Leak mode and stop ‘Leak’ from
blinking. Pressing CANC will revert back to Pitot Measure mode. For now, press CANC and return
Pitot to Measure mode.
Press ‘4’ to select Pitot mode again. Then press ‘3’ to select Pitot Control mode. The screen appears as
shown in Figure 3.17 below.
Figure 3.17 : Pitot Control mode
