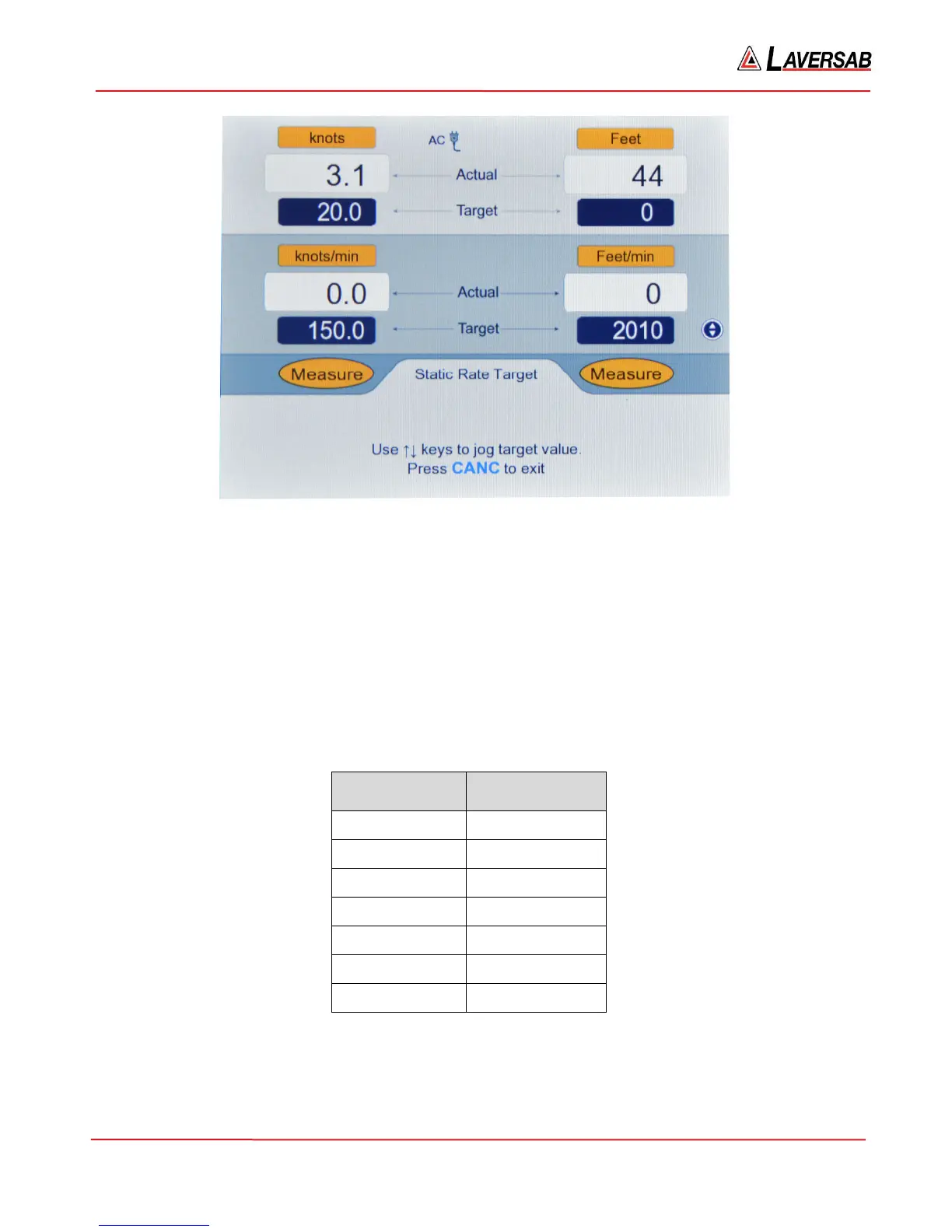

Figure 3.14 : Jog the Static Rate Target value
In this screen, the Upper section has a new symbol (with Up & Down arrows) to the right of the Static
Rate Target value field. This indicates that the Static Rate Target value can be jogged up or down
repeatedly, in steps of 10 Feet/min, using the Arrow keys, until CANC is pressed. In this case, since the
Up-Arrow key was pressed, the Static Rate Target value was incremented to 2010 Feet/min. Press Up-
Arrow one more time and the value will change to 2020. Press Down-Arrow two times and the value
decrements to 2000.
Note: It is not possible to Jog a Rate Target value if it is blinking.
The incremental value for the Jog feature varies depending on Static units and is shown in the table
below.
Static-Rate
Units
Jog increment
Feet/min 10
Meters/sec 0.1
inHg/min 0.01
mbar/min 0.1
psi/min 0.01
mmHg/min 0.1
kpa/min 0.01
