SMC6000 Series Motion Controller Hardware Installation Manual
17
HWMN-SMC6-R20120417
EXGND
OUT
External
Power Supply
24 VDC
SMC6000
ULN2803
R
Max 40V 60mA

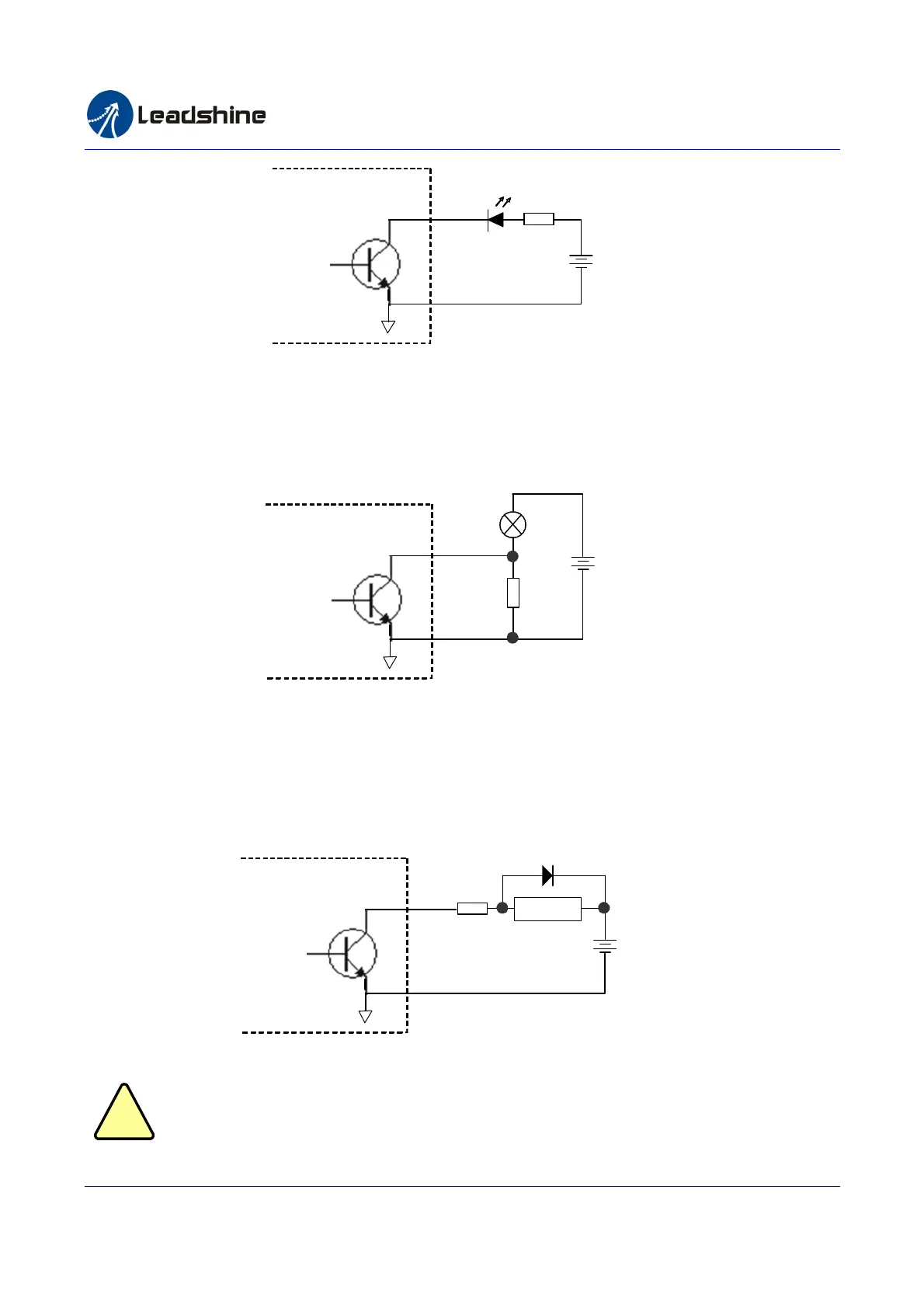

Figure 3-10: Connect Digital Output to LED
2) Connections to a Lamp
Use a warm-up resistor R for the connected lamp in order to increase lamp’s life-time. Determine the resistor by the
following rule: when the digital output is high level, this resistor should not turn on the lamp.
EXGND
OUT
External
Power Suppy
24 VDC
SMC6000
ULN2803
R
Max 40V 60mA
Figure 3-11: Connect Digital Output to Lamp
2) Connections to a Relay
The mechanical relay is inductance type load. If a mechanical relay is used, a diode must be paralleled to it to by
pass the inductance voltage generated when it is switched off. See figure 3-12 for the connections. The series resistor
is used to limit current to 60mA, in order to protect the output circuit of SMC6000.
EXGND
OUT
External
Power Suppy
24 VDC
SMC6000
ULN2803
R
Max 40V 60mA
Relay
Figure 3-12: Connect Digital Output to Relay
Note: 1) A diode must be paralleled to the relay to by pass inductive voltage. Connect a series resistor
between the digital output and the relay if the drive current is great than 60mA. Otherwise the digital
output will be risk of damage.
!
Caution
