SMC6000 Series Motion Controller Hardware Installation Manual
18
HWMN-SMC6-R20120417
3.6.2. Non-isolated General Purpose Digital Outputs
Non-isolated general purpose digital outputs are assigned in the expansion I/O connector. Additional isolated circuit
should be used when connect them to peripheral equipment. You can also use Leadshine terminal board ACC37-7480
which offers isolation and anti-interference capacity. Typical connection of non-isolated digital output is shown in
figure 3-13. See the pin assignment of non-isolated digital outputs in table 2-4.
SMC6000
OUTPUT
VCC3.3V
OUT9
(OUT10~24)
330

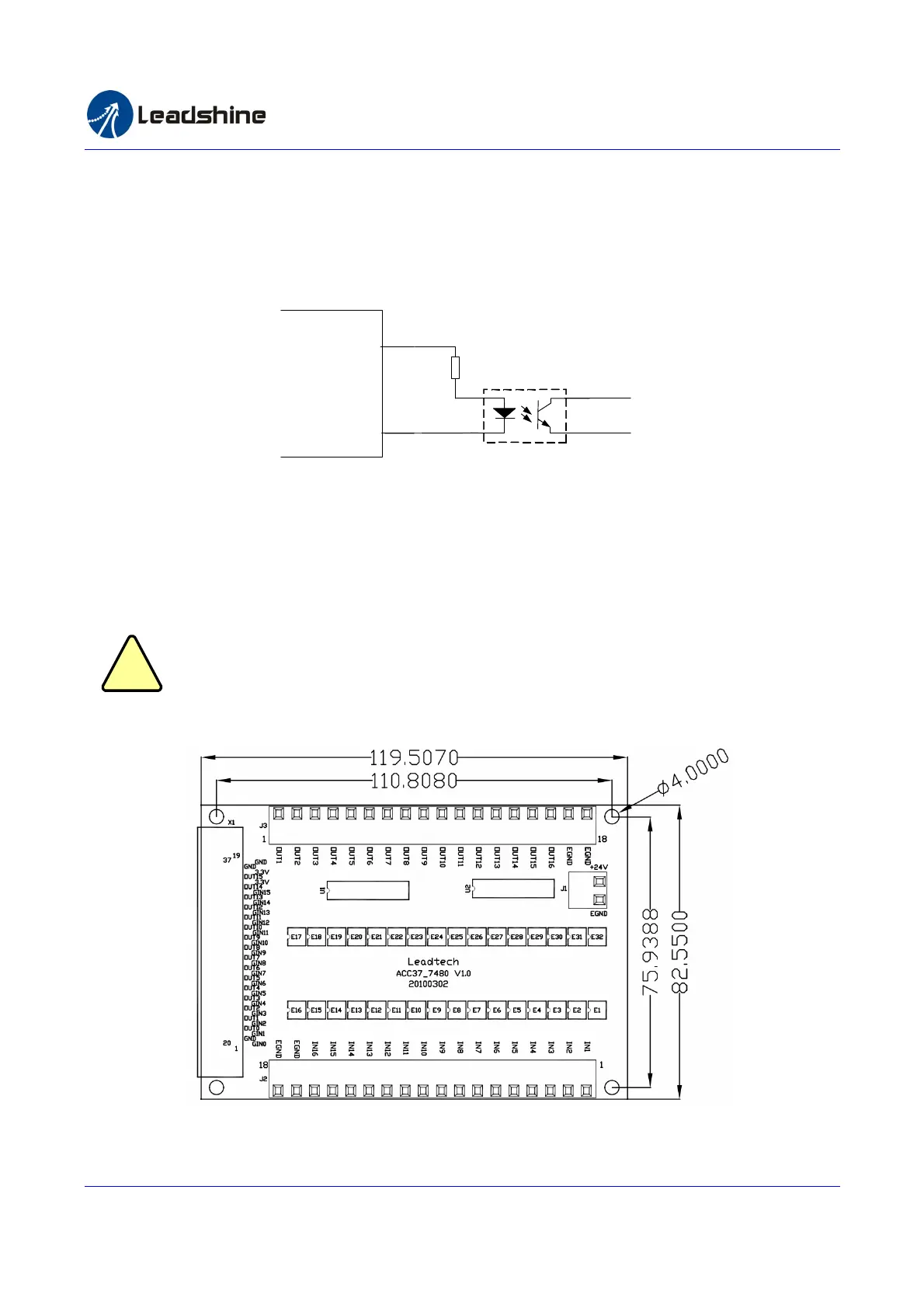

Figure 3-13: Connect Digital Output to Relay
3.7 Expansion I/O Terminal Board ACC37-7480
For your convenience Leadshine provides terminal board ACC37-7480 for expansion I/O connections. This terminal
board offers isolation and current amplification to the expansion I/O. Figure 3-14 gives the pin out and mechanical
specification of ACC37-7480.
Note: The ACC37-7480 requires power supply to make it work. Please connect 24VDC to
connector J1 of ACC37-7480.
Figure 3-14: Terminal Board ACC37-7480
!
Caution
