2.2.3 Connecting the Analog 4-20 mA / 0-5 V Outputs
Up to four Outputs boards may be installed in one SLC-220/Multi, up to two in SLC-220/Basic.
The first board on SLC-220/Multi, located rightmost, is associated with sensor #1; the second
board from the right is associated to sensor #2, etc. For SLC-220/Basic, the lower board is
associated with sensor #1; the upper board is associated with sensor #2.

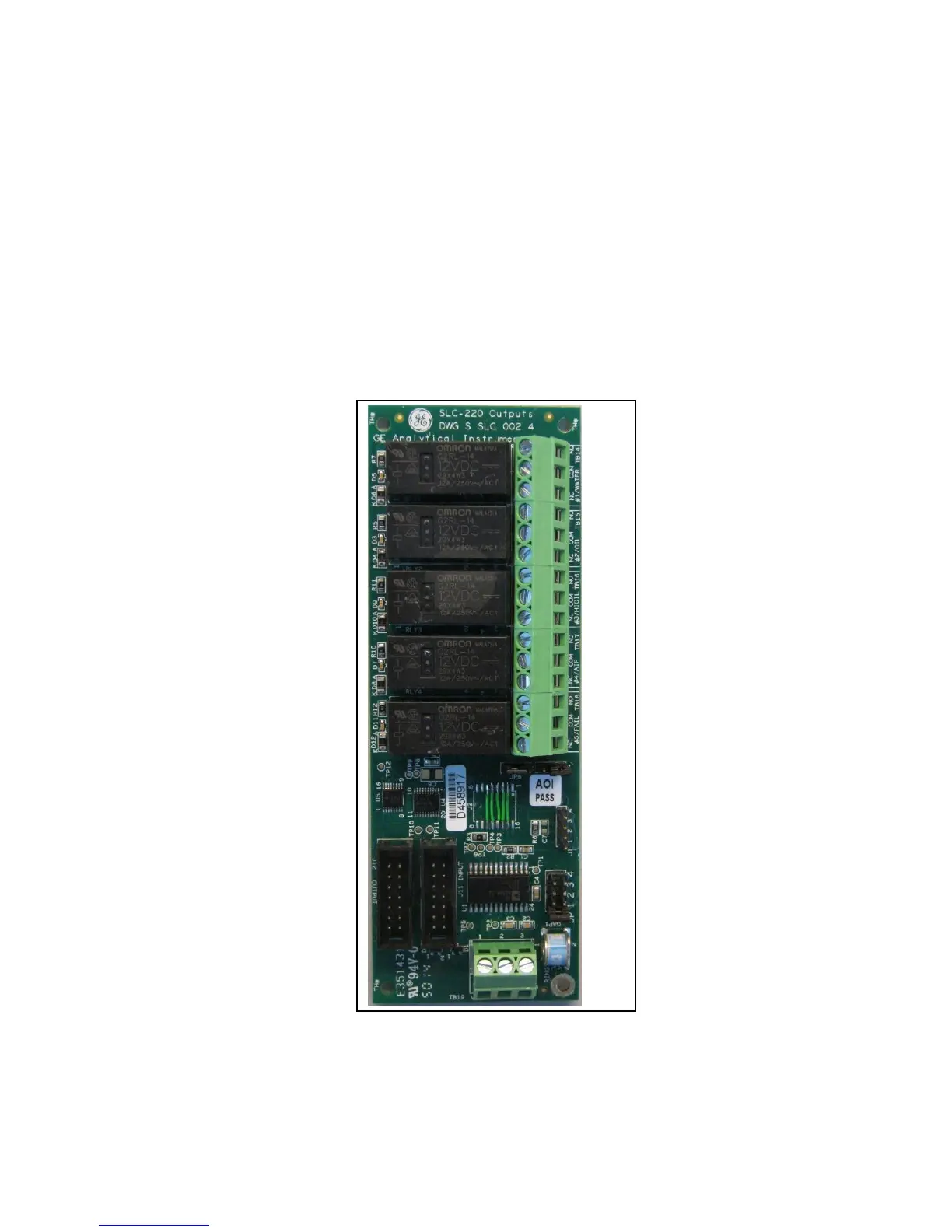

Outputs Board picture:
