Motion track and speed curve are shown in the left frame. Parameters
settings on the linear/circular interpolation, the jogging motion and the
encoder are shown in the right frame. The frame OTHERS is used for
testing universal I/Os and special inputs.
b) 7 demonstration programs in sub-directory VCDemo: (All include
source code except VCDemo3)
“VCDemo1” and “VCDemo2”. “VCDemo1” is the VC static
loading dynamic link library example; “VCDemo2” is VC
dynamic loading dynamic-link-library example. Windows of
VCDemo1 and VCDemo2 are the same as follows:
Motion track will be shown on the left-side in the window, while parameter
settings shown on the right-side in the window.

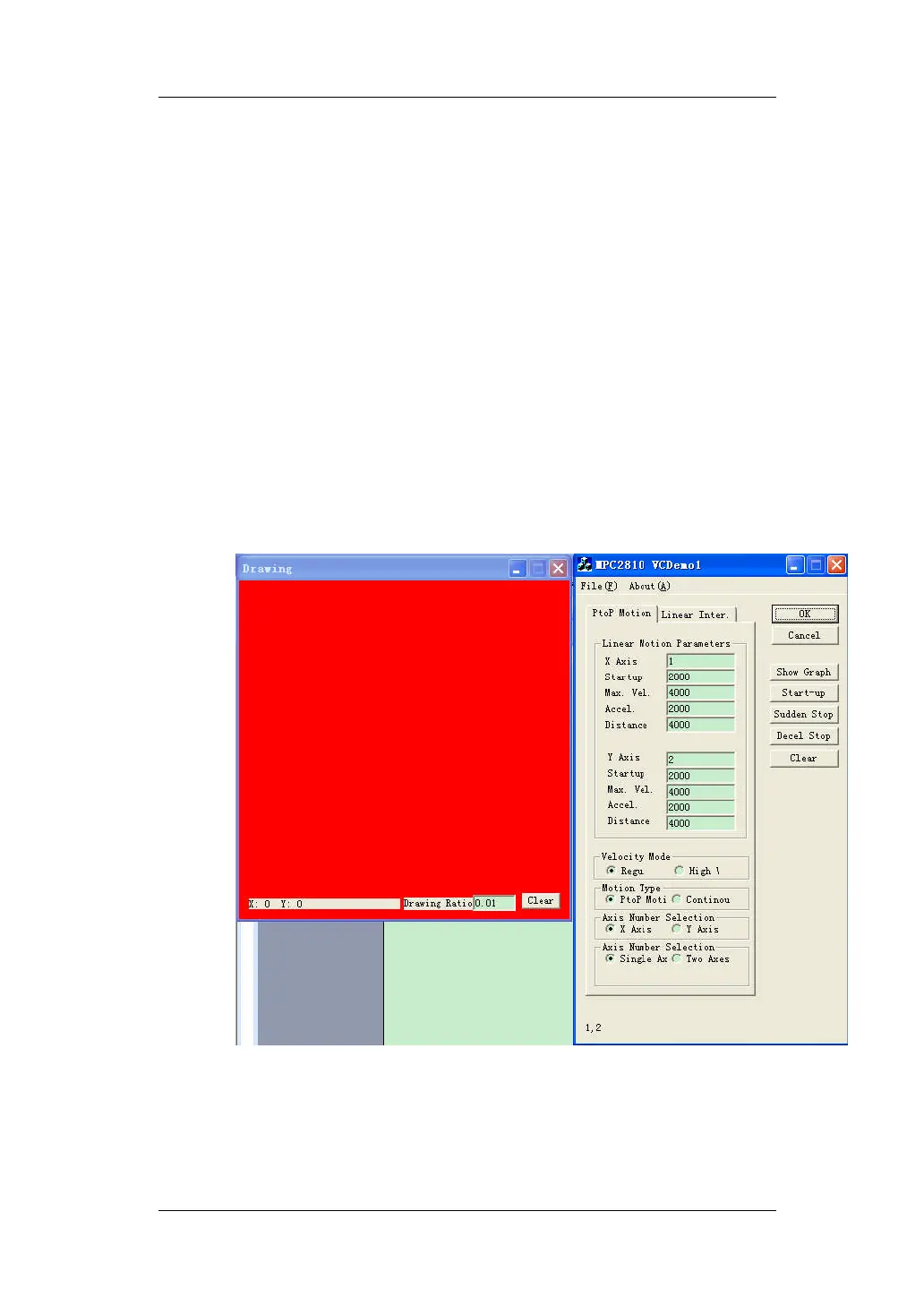

Fig. 2-16 VCDemo1/VCDemo2 window
