Leetro MPC2810 - Page 25

MPC2810 Motion Controller Hardware Manual
17
 “VCDemo3”provides no source code. It can read *.DXF file, test
I/O & commands. (Refer to Chapter4)
 “CmdMove1” demonstrates batch processing and short line
segments tracking examples.
 “HandwheelorGearHandle”demonstrates manual pulse input and
electronic gearing examples.

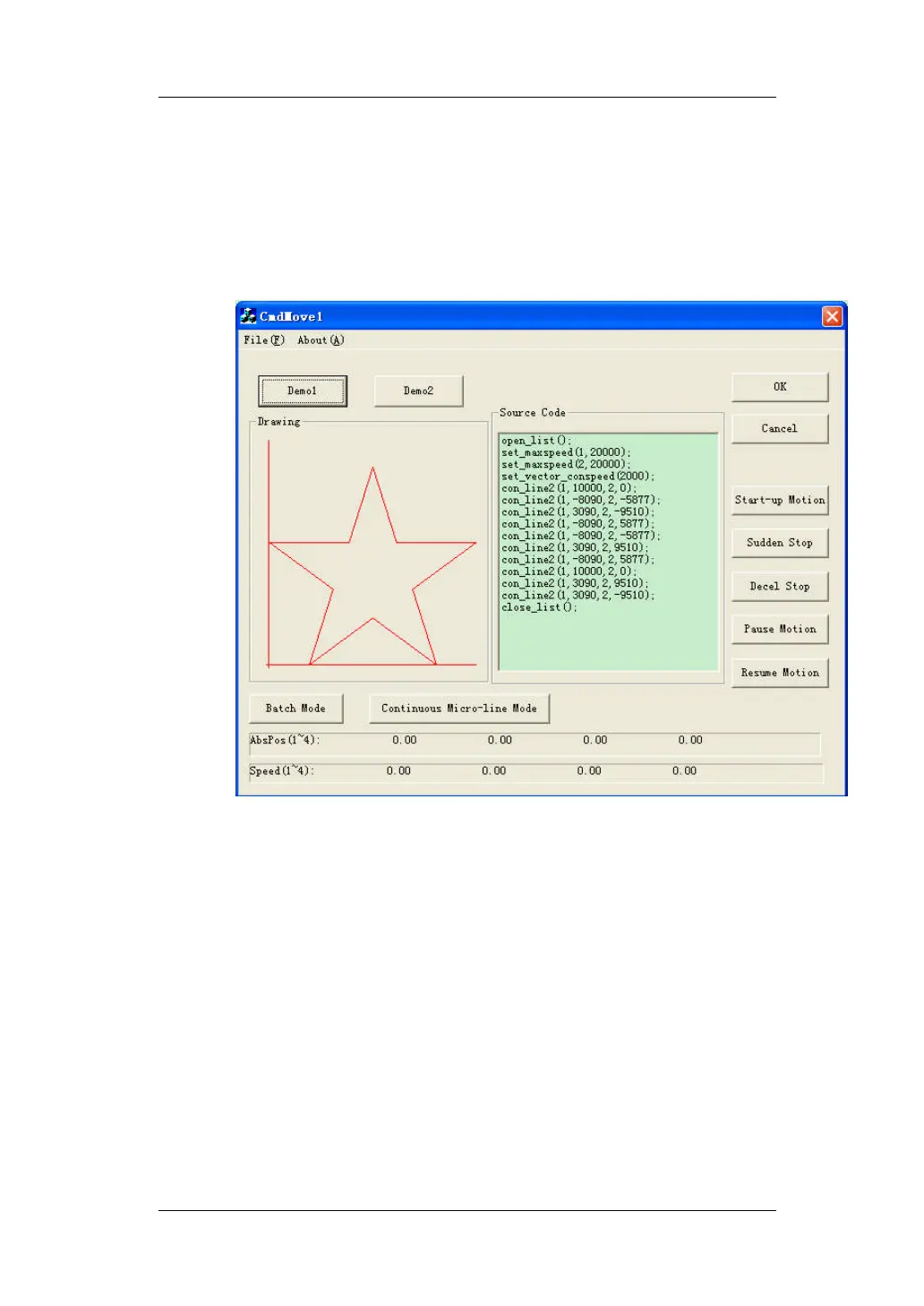

Fig. 2-17 CmdMove1 window
