Directional specimen holder fixture
• Raisethespecimenhead to theupperend
position and activate the handwheel lock.
• Toreleasetheclamp,turntheeccentriclever
(29) forwards.
• Turnsetscrew(30) to orient the specimen in
north-south direction. Turn setscrew (31) to
orient the specimen in east-west direction.
Each complete turn of the screw inclines the
specimenby2°.Atotalof4completeturns=8°
are possible in every direction. The accuracy
is approximately ± 0.5°.
For ease of estimation, there is a white mark on
the handle and a click stop that is noticeable
during turning.
• To lock thecurrentorientation, turnthe
eccentric lever (29) backwards.
Display of the zero position
For better display of the zero position, the orienta-
tion has two red indicators (32).
When both indicators are visible and both set-
screws are in zero position at the same time
(notch point, white marking on ""), the specimen
is in zero position.
5. Operation
The directional specimen holder fixture may be
exchanged for a non-directional fixture (optional
accessory).
The specimen orientation allows for simple posi-
tion correction of the specimen surface when the
specimen is clamped into place.
32
30
32
31
29
In the quick clamping device of the directional specimen holder fixture, all specimen clamps
available as optional accessories can be used (implemented).
When the large standard specimen
clamp (50 x 55 mm) is used, the speci-
men orientation of 8° in north-south
direction is no longer possible.
The usable angle is only about 4° in
this case.

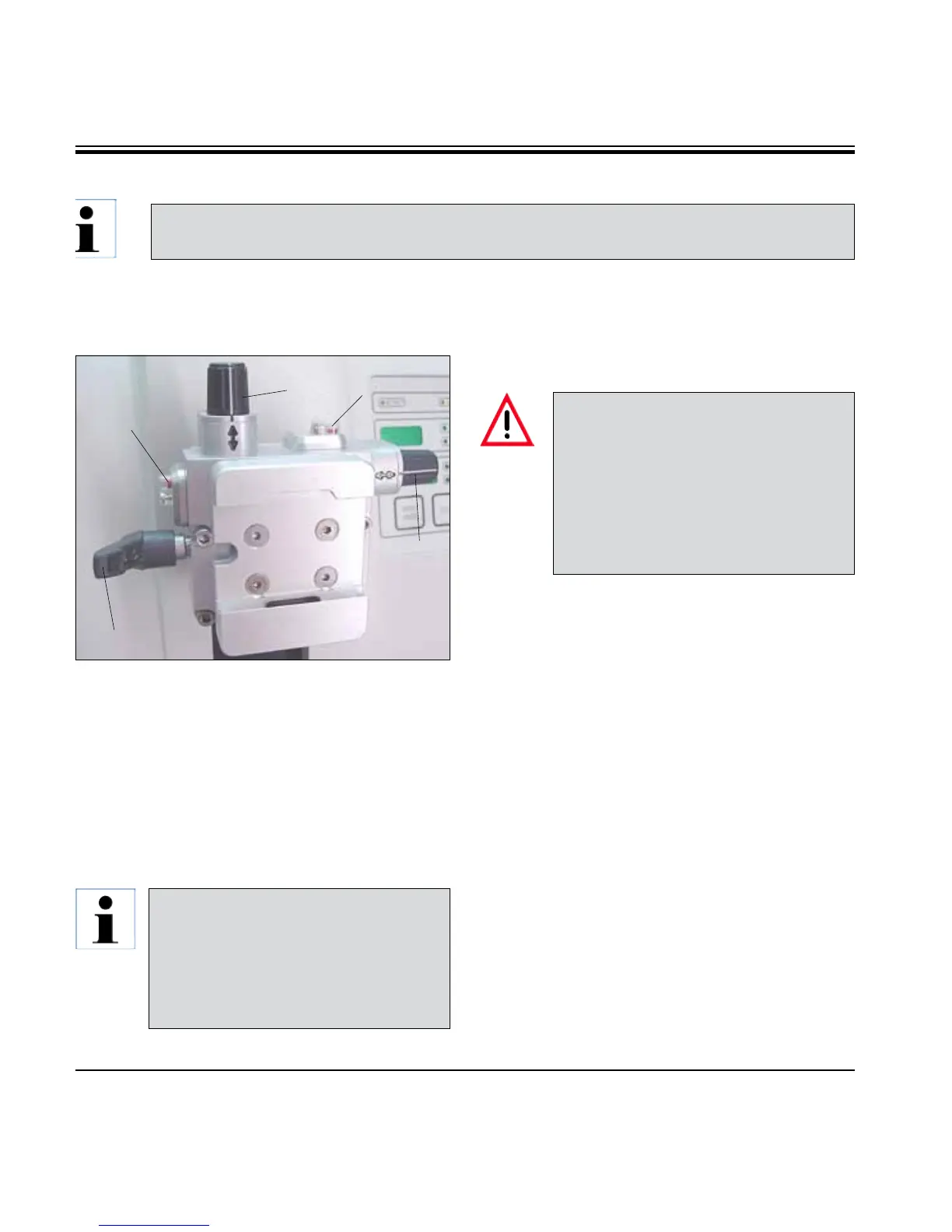

Fig. 19
Orienting the specimen
Specimen blocks must NOT be orient-
ed during the retraction phase!
If a block is oriented during retraction,
the block will advance by the retrac-
tion value PLUS the selected section
thickness before the next section.
This may cause damage to both speci-
men and knife!
