Leica RM2245 - Fine-Directional Fixture for Specimen Clamps

38
Instructions for Use V 1.9 RevC - 06/2013
6. Optional Accessories
6.1.3 Fine-directional fixture for specimen
clamps

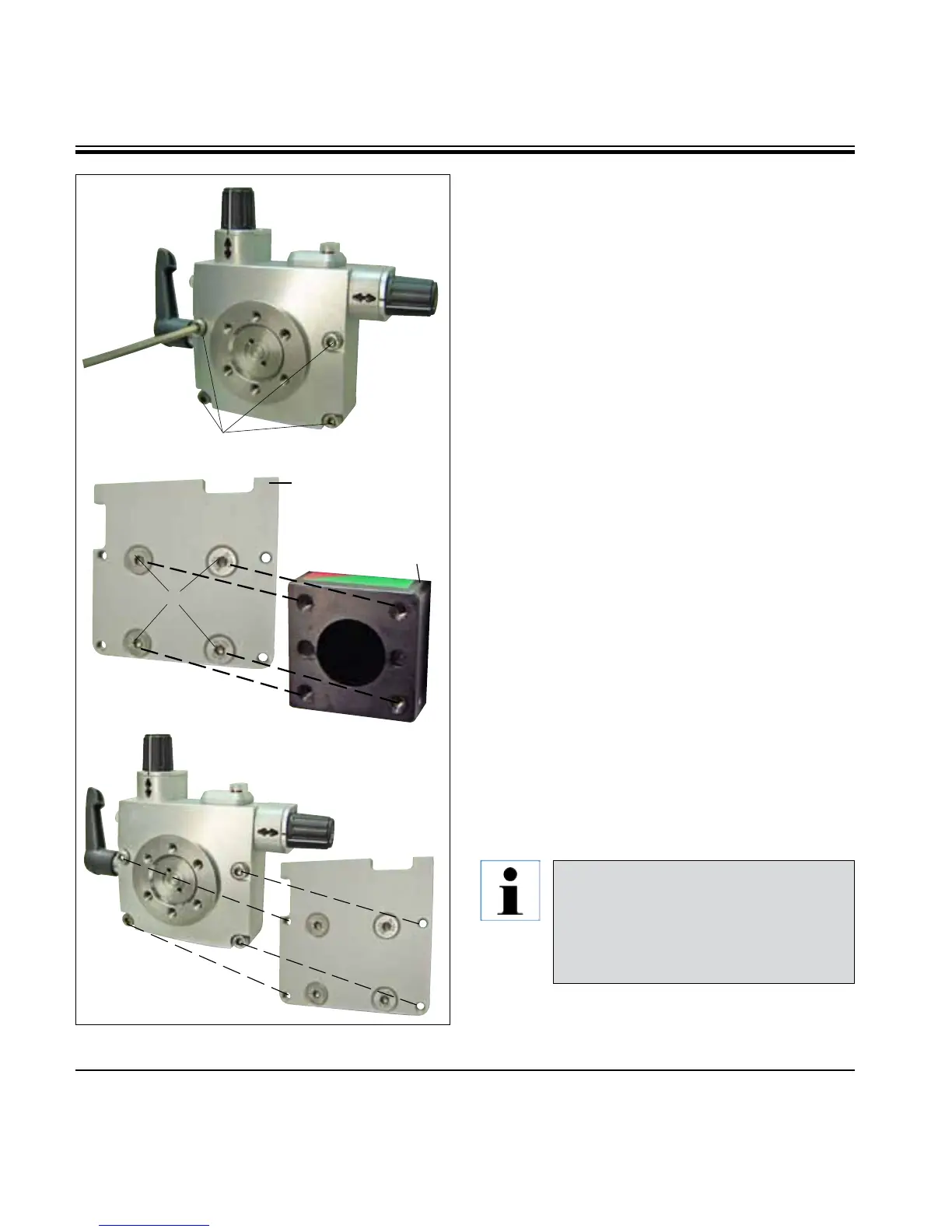

• Beforethefine-directionalfixture forspeci-
men clamps can be mounted, loosen 4 screws
(10) (Allen key No. 3) and carefully remove the
fixture for specimen clamps from the base-
plate (9).
10
• Usingthe4suppliedscrews(11) and the Allen
key No. 3, fasten the baseplate to the specimen
head (12).
11
• Now,screw the fine-directionalfixturefor
specimen clamps with the 4 screws (10) and
the Allen key No. 3 onto the specimen head.
9
12
If the fine-directional fixture for speci-
men clamps is not used, retain the
baseplate and 4 screws (11) together
with the fine-directional fixture for
specimen clamps!
Fig. 30
