Leica RM2245 - Super Mega-Cassette Clamp

44
Instructions for Use V 1.9 RevC - 06/2013
Assembly of the super mega-cassette clamp
The super mega cassette clamp should preferably be used with the rigid
fixture for specimen clamps.
To do so, proceed as follows:
6.2.5 Super mega-cassette clamp

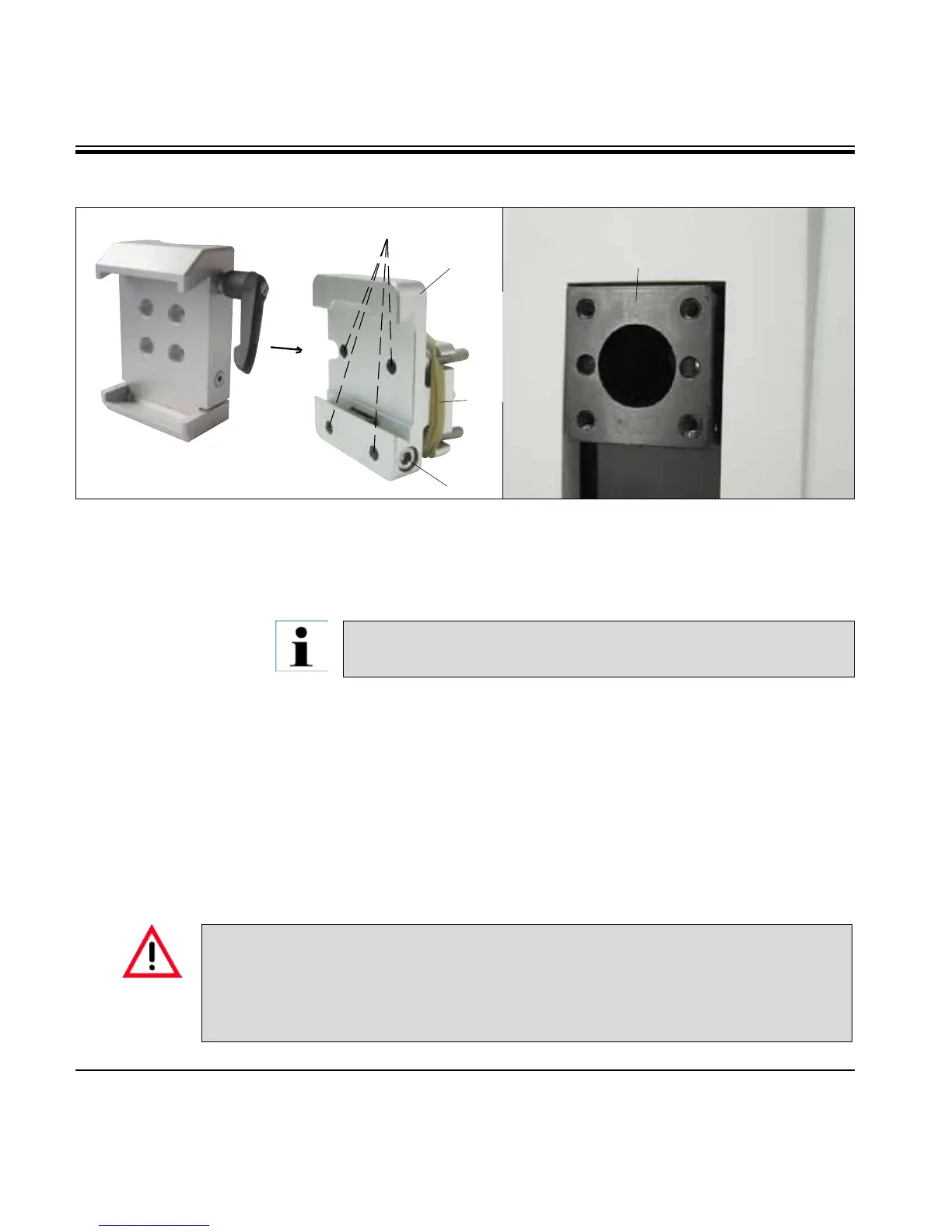

Fig. 37
1
2
3
4
5
Remove the rubber ring (5) only after having attached the cassette
clamp on the specimen head!
• Screwthe rigid fixture for specimenclamps(4) onto the specimen
head (3):
Remove the screw (1), place the specimen holder fixture (4) onto the
specimen head (3) from the front and tighten the screws (2) with an Allen
key size 3.
Next, insert the screw (1) from the side and briefly tighten it with an Allen
key size 4.
• Insertthesupermegacassetteclampfromthesideontheleftintothedovetail
guide of the rigid fixture for specimen clamps and tighten screw (1).
6. Optional Accessories
If the directional fixture for specimen clamps is used with the rigid knife holder base,
the orientation must be in position "0" and the cover for backlighting illumination must
be detached. (Danger of collision if not observed!)
NEVER use the super mega-cassette clamp with backlighting illumination!
