Leica RM2245 - Knife Holder E;E-TC

47
Leica RM2245
6. Optional Accessories

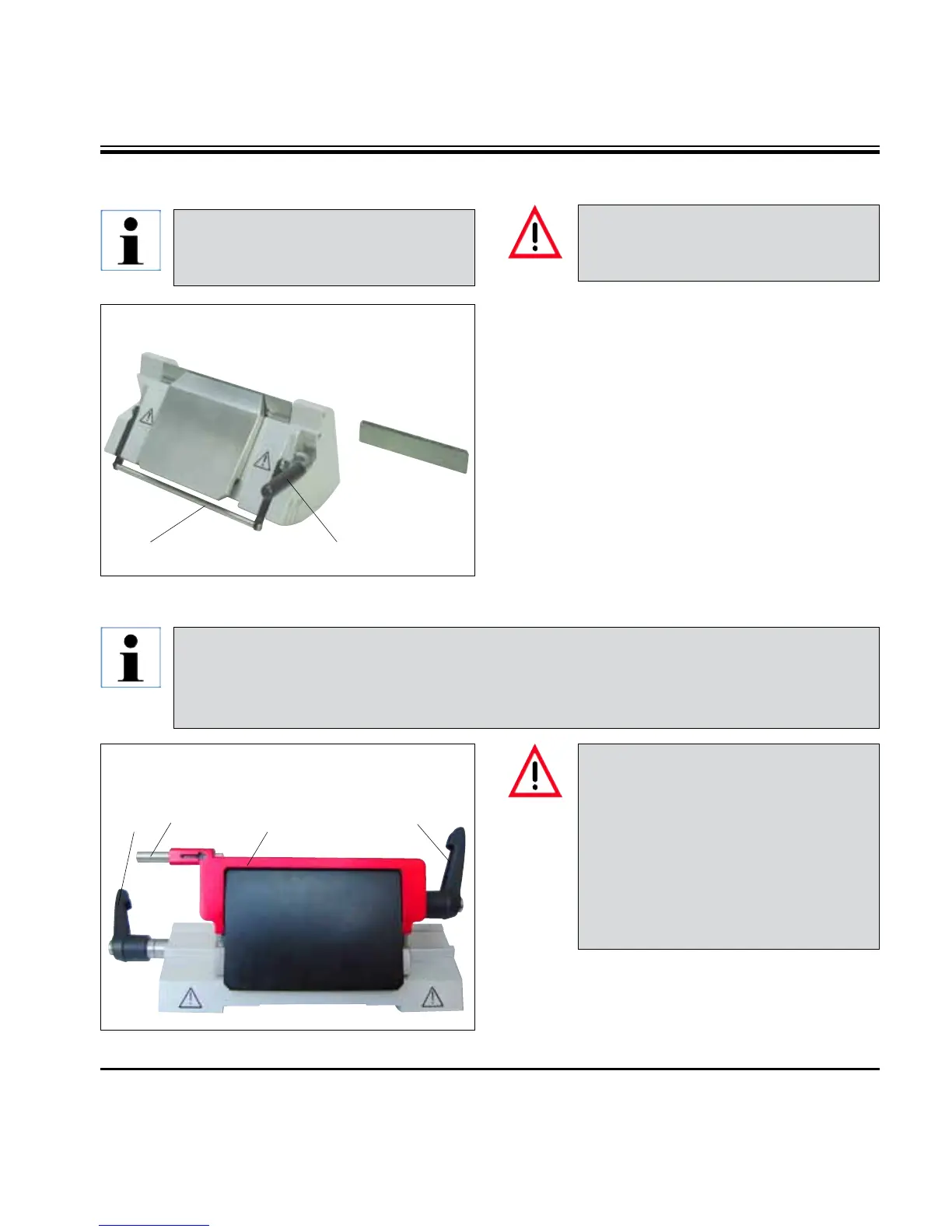

Inserting the blade, knife holder E and E-TC
• Foldknifeguard(9) downward.
• Toinserttheblade,fliptherightclampinglever
(10) forward and down.
• Carefullyinsertthebladefromtheside.Make
sure that the blade is clamped parallel to the
upper edge of the pressure plate.
• Toclamptheblade,rotateclampinglever(10)
back upwards.
6.3.2 Knife holder E/E-TC
9
11
10
Knife holder E-TC
Knife holder E
9
10
9a

Prior to inserting the blade, both knife
holder and knife holder base must
have been installed on the instrument!
The knife holder E-TC is designed
for the Leica TC-65 tungsten carbide
blades.
The clamping levers on the knife hold-
er are not interchangeable. The two
clamping levers (10, 11) must remain
in the position shown at all times, as
otherwise isolated malfunctions of the
knife holder can occur.
Clamping lever for the blade (10) at the
right, clamping lever for the lateral
displacement (11) at the left.
The knife holder E is designed for conventional disposable blades from all current manufactur-
ers. It is available in two models: one for low-profile blades and one for high-profile blades.
The knife holder has a lateral displacement, so that the entire width of the blade can be used. It
is also equipped with a blade ejector (9a).
Fig. 41
Fig. 42
