Instructions for Use V 1.9 RevC - 06/2013
8. Cleaning and Maintenance
97
88
11
10
Knife holder E:
• Clampinglever (11) for the lateral displace-
ment.
• T-piece(88) and guide (97) of the knife holder
for the lateral displacement.
• Clampinglever(10) for the blade.
Knife holders N and NZ:
• Slidingsurfacesofthefingerguard(8).
• Knurlednuts(73) for measuring height adjust-
ment.
95
96
55

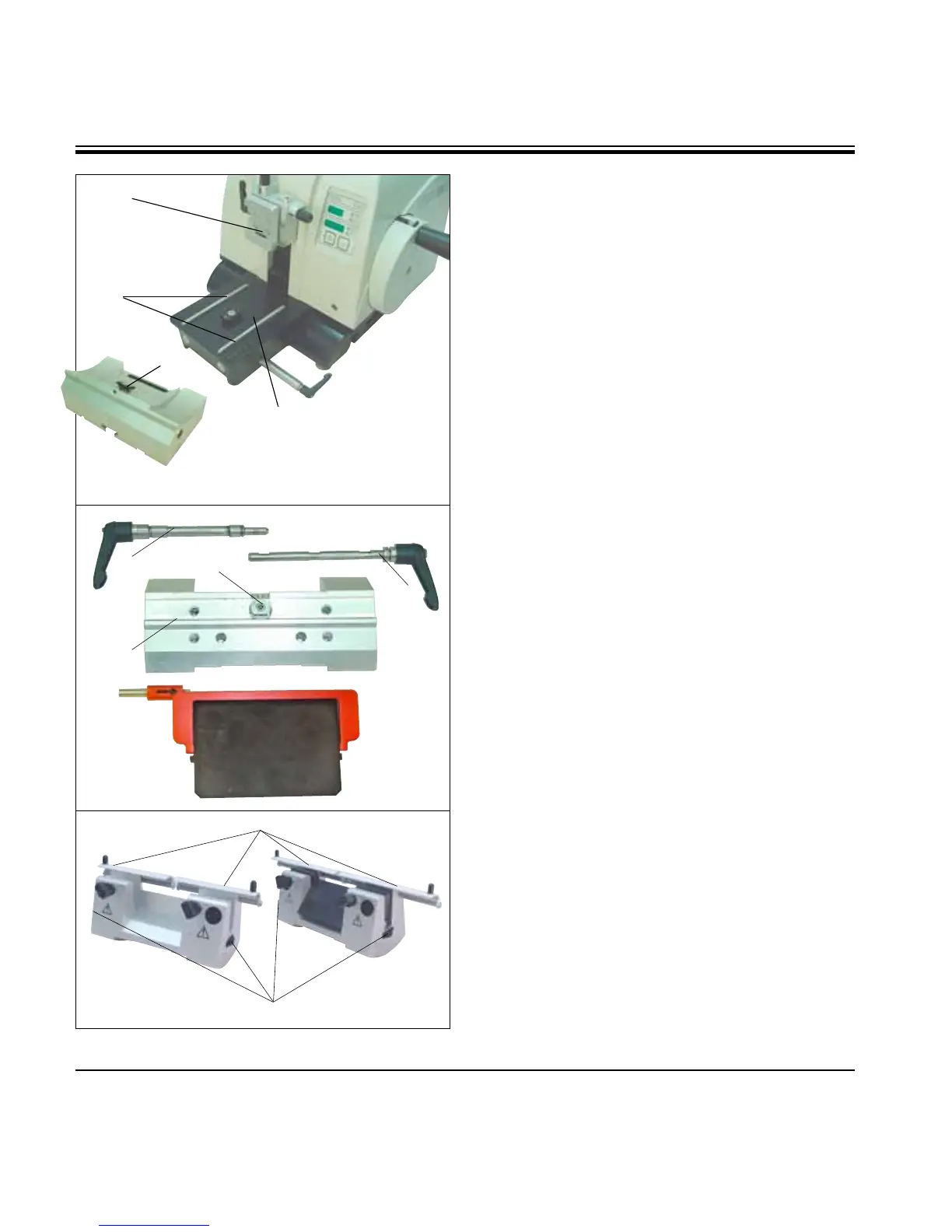

8.2.3 Lubricating the instrument
Once a month, lubricate the following parts with
the included drive parts oil No. 405 (1 - 2 drops
are enough).
Instrument and specimen holder:
• Theclampingkey(95) of the quick clamping
system.
• TheT-piece(55) on the microtome base plate.
• Guiderails(96) for the knife holder base on the
microtome base plate.
• TheT-pieceontheknifeholderbase(56).
56
73
8
Knife holder N
Knife holder NZ
Fig. 74
