Leica RM2245 - Section Waste Tray; Backlighting

54
Instructions for Use V 1.9 RevC - 06/2013
6. Optional Accessories
• Remove the twoscrews(1) using a slotted
screwdriver and then remove the cover
plate (2).
• Insertthebacklighting(3) in the recess at the
rear of the knife holder base.
• Connecttheplug(4) of the backlighting to the
socket (5) on the microtome.
The backlighting illuminates once the microtome
is turned on with the power switch.
2
1
3
4
1
5
6.6 Backlighting
6.5 Section waste tray

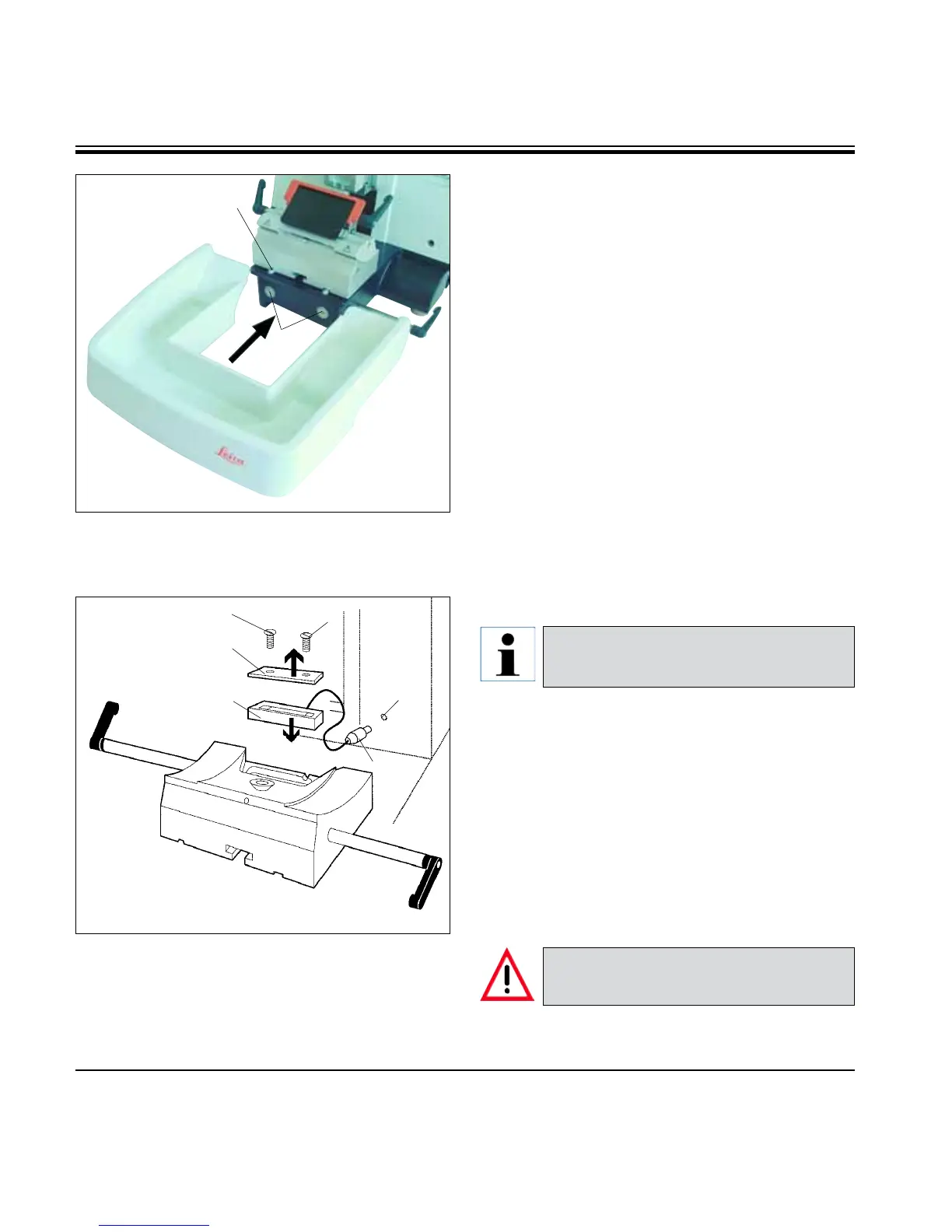

• Pushthesectionwastetray(18) from the front
to the microtome base plate (53) until it is held
in place by the two magnets (39) (on the front
of the microtome base plate).
To remove the section waste tray, lift it slightly
and pull it off towards the back.
53
18
39
Fig. 53
Fig. 54
NEVER use the backlighting illumination
with the super mega-cassette clamp!
The backlighting is inserted into the
front of the one-piece knife holder base.
