680 Series Video Distribution Amplifiers Installation and Operation Manual 3
Chapter 1: 680 Series Mounting Frames

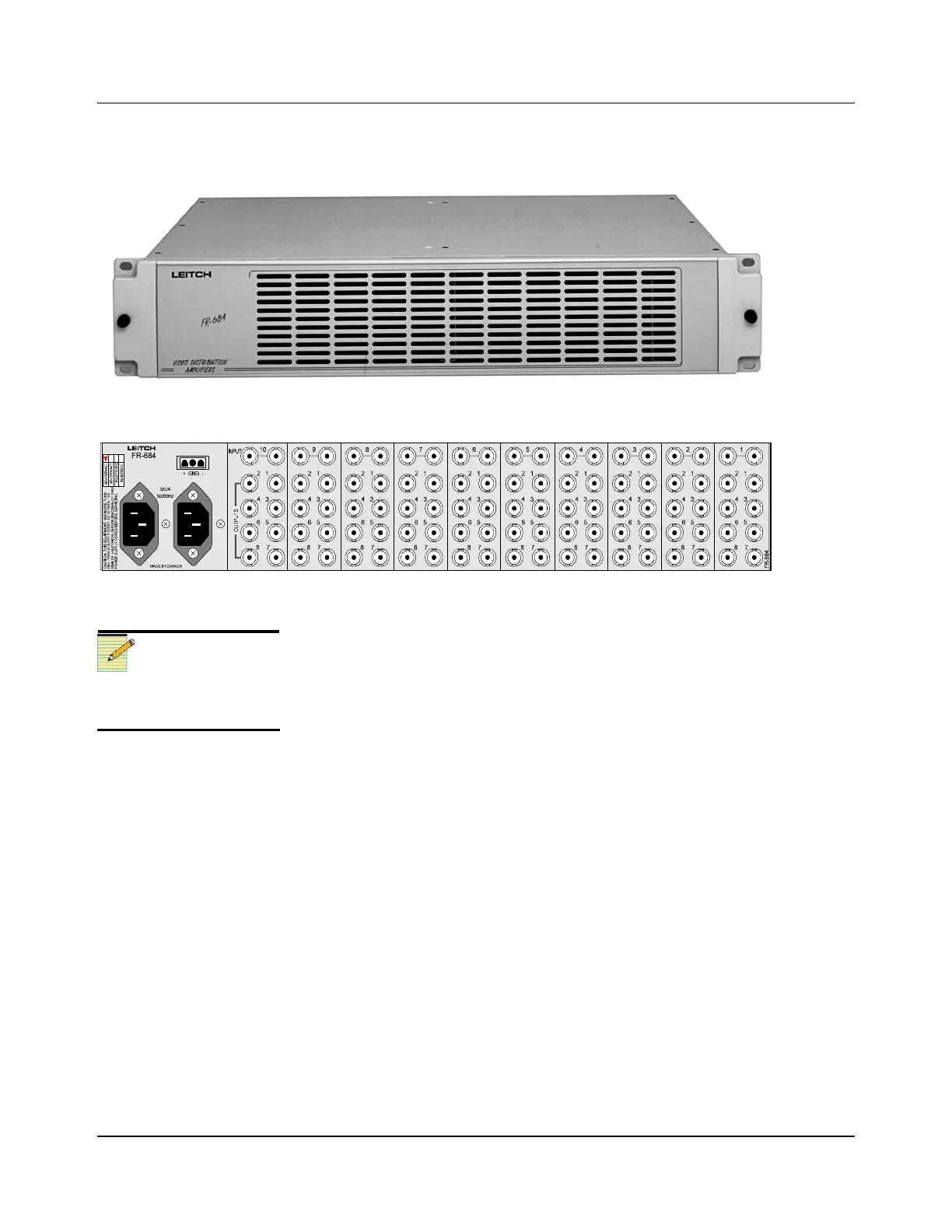

FR-684 Video DA Mounting Frame
Figure 1-3. FR-684 Front View
Figure 1-4. FR-684 Rear View
The FR-684 Video DA mounting frame requires 2 units of rack space: 3½ in.
(88 mm) high × 19 in. (483 mm) wide × 12½ in. (317 mm) deep.
The FR-684 accepts up to ten 680 series video distribution amplifiers with
looping inputs, and eight outputs. This frame is equipped with a 684PS power
supply that requires either 90–135 VAC or 190–265 VAC input voltages (which
is switchable) on 50/60 Hz frequency rated at 35 VA max. Please refer to
“PS-684 Power Supply” on page 6 for more information.
There is an inter-frame DC power connector, which allows the sharing of power
supply redundancy between frames. A single power supply is required per
frame, while only one extra power supply is required when several frames are
interconnected.
Note
There is a prewired option for
an optional second 684PS
power supply, if required.
