24 680 Series Video Distribution Amplifiers Installation and Operation Manual
Chapter 6: VPD-683-CLP Programmable Video Distribution Amplifier Modules
Functional Block Diagram

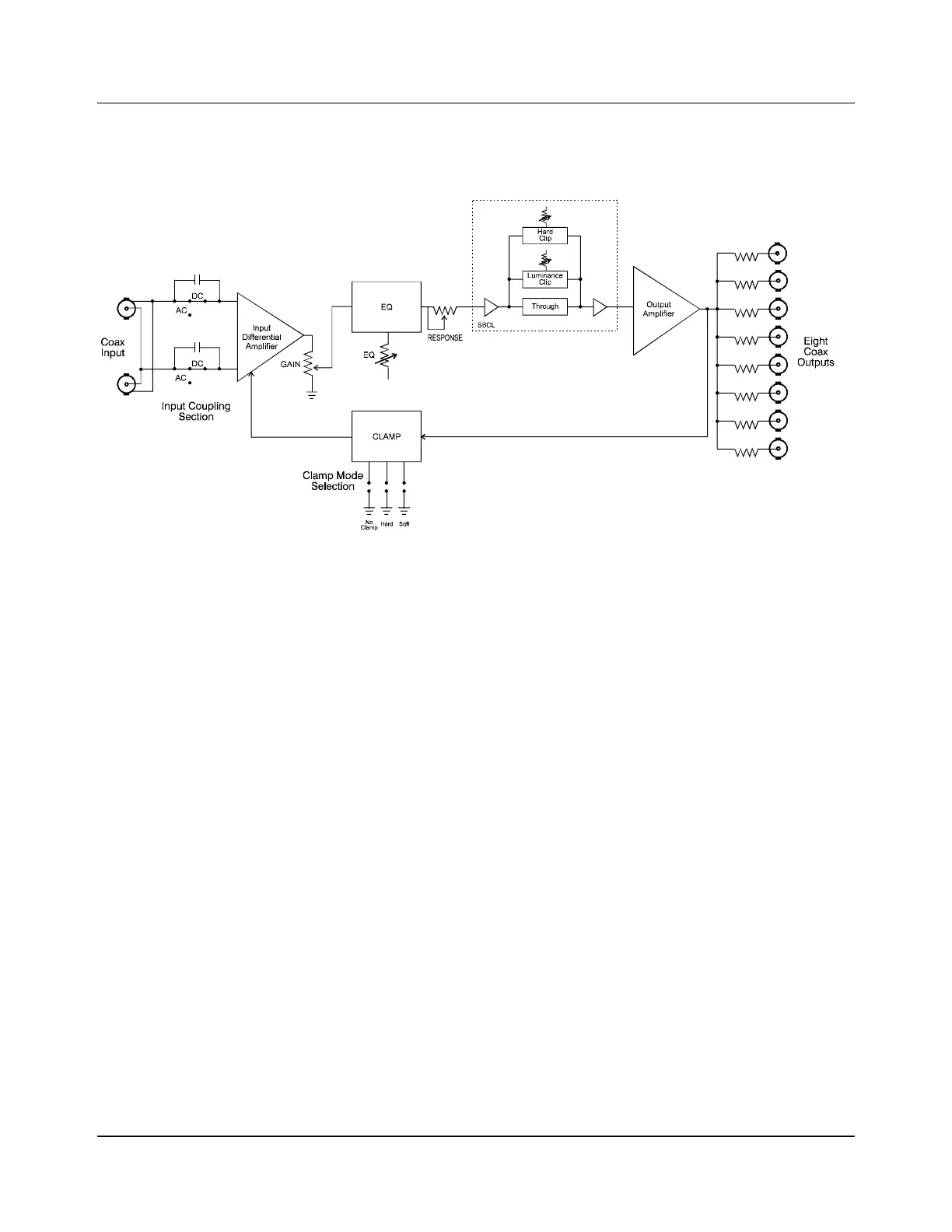

Figure 6-2. VPD-683-CLP Functional Block Diagram
Installation
VPD-683-CLP programmable video distribution amplifiers may be installed in
these frames:
• FR-683 – 4 video DA modules mounting frame
• FR-684 – 10 video DA modules mounting frame
• FR-684AV – 5 video and 5 audio DA modules mounting frame
There is no need to terminate unused outputs, but a perfect response can be
obtained if unused outputs are terminated.
