680 Series Video Distribution Amplifiers Installation and Operation Manual 53
Appendix B: Installing the 684PS-48
Maintaining the 684PS-48
Power Supply Replacement Fuse Information
The replacement fuse (F1) for the 684PS-48 is a Wickmann 19194-2.5 A, 250 V
use.
Connections and Specifications
Power Supply Connections

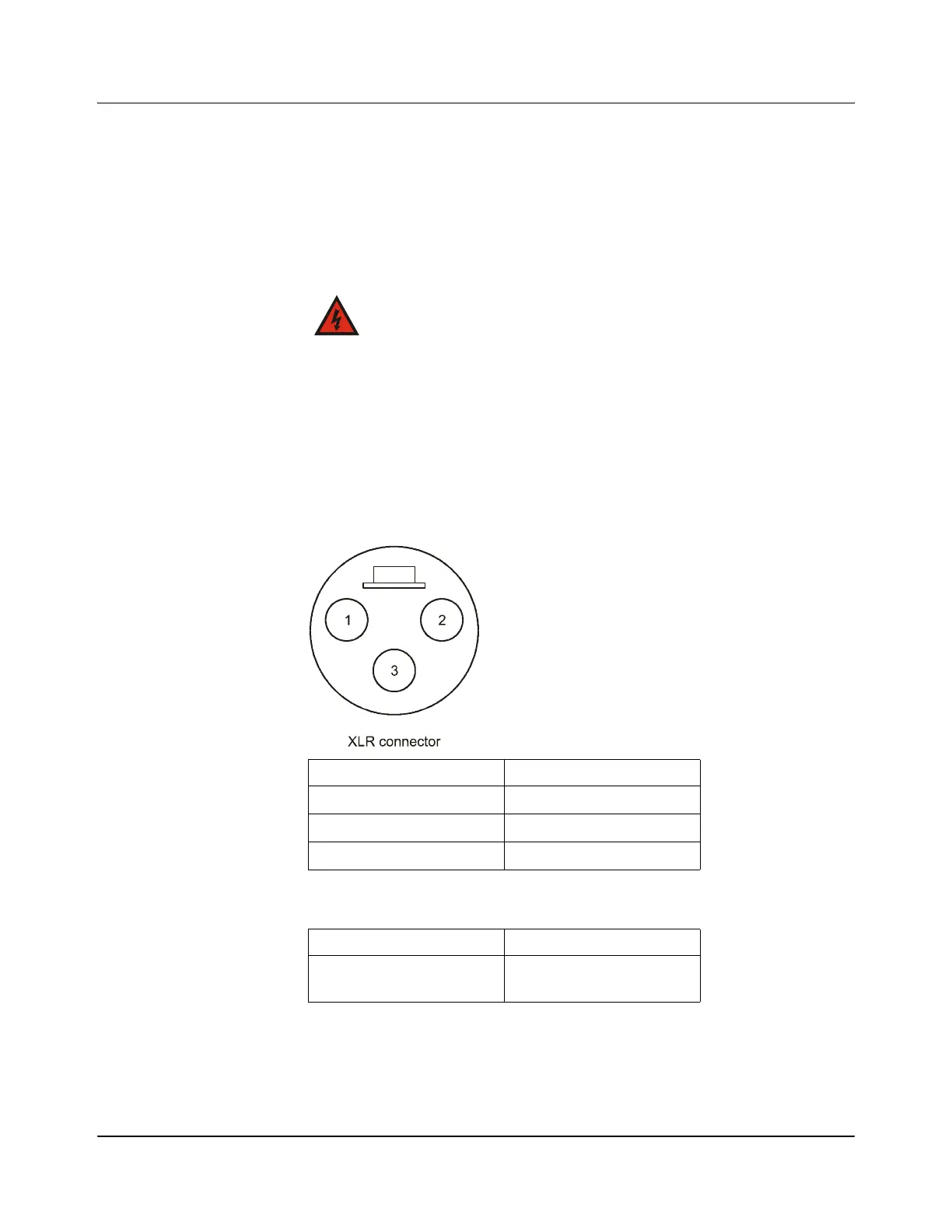

Use the XLR connector at the back of the power supply or frame (if the
684PS-48 is installed in a frame) to make the following pin connections for the
684PS-48:
Specifications
For continued protection against fire, replace only with
the same type and rating of fuse.
Pin number Pin Connection
1 -48 V
2 0 V
3 chassis
Item Specification
Input
42-60 VDC 1.5 A
50 VA maximum
