Chapter 5: VEA-684 Video Equalizing Distribution Amplifier Modules
Configuration

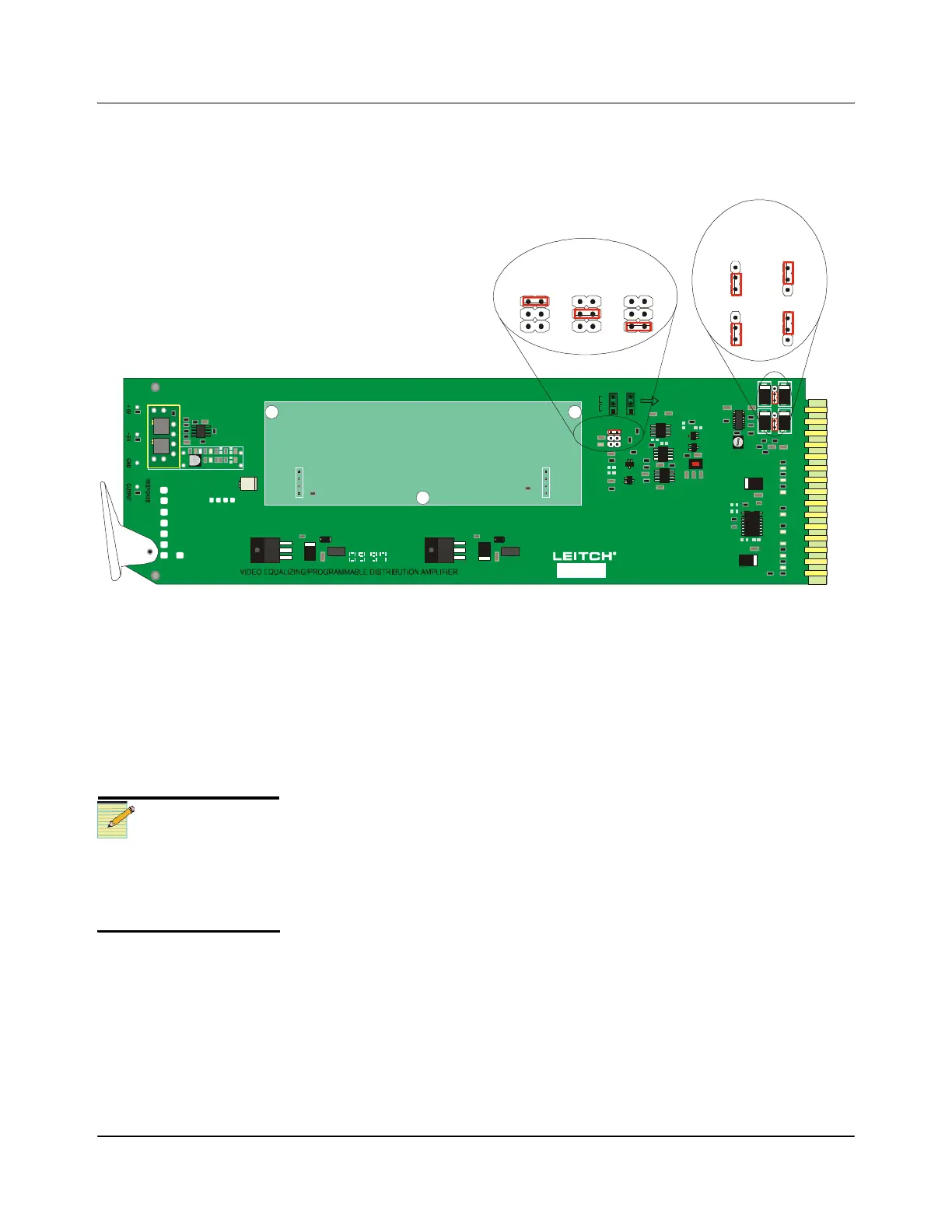

Figure 5-3. Coupling and Clamp Configuration Options
Input Coupling
If AC coupling is required, J2 and J3 should be in the upper position. If DC
coupling is required, J2 and J3 should be in the lower position. These settings
are shown in Figure 5-3.
Clamp Mode
The clamping mode can be set for No Clamp, Hard Clamp, or Soft Clamp on
Jumper J3. These settings are shown in Figure 5-3.
