Chapter 4
VEA-683 Video Equalizing Distribution
Amplifier Modules
Overview

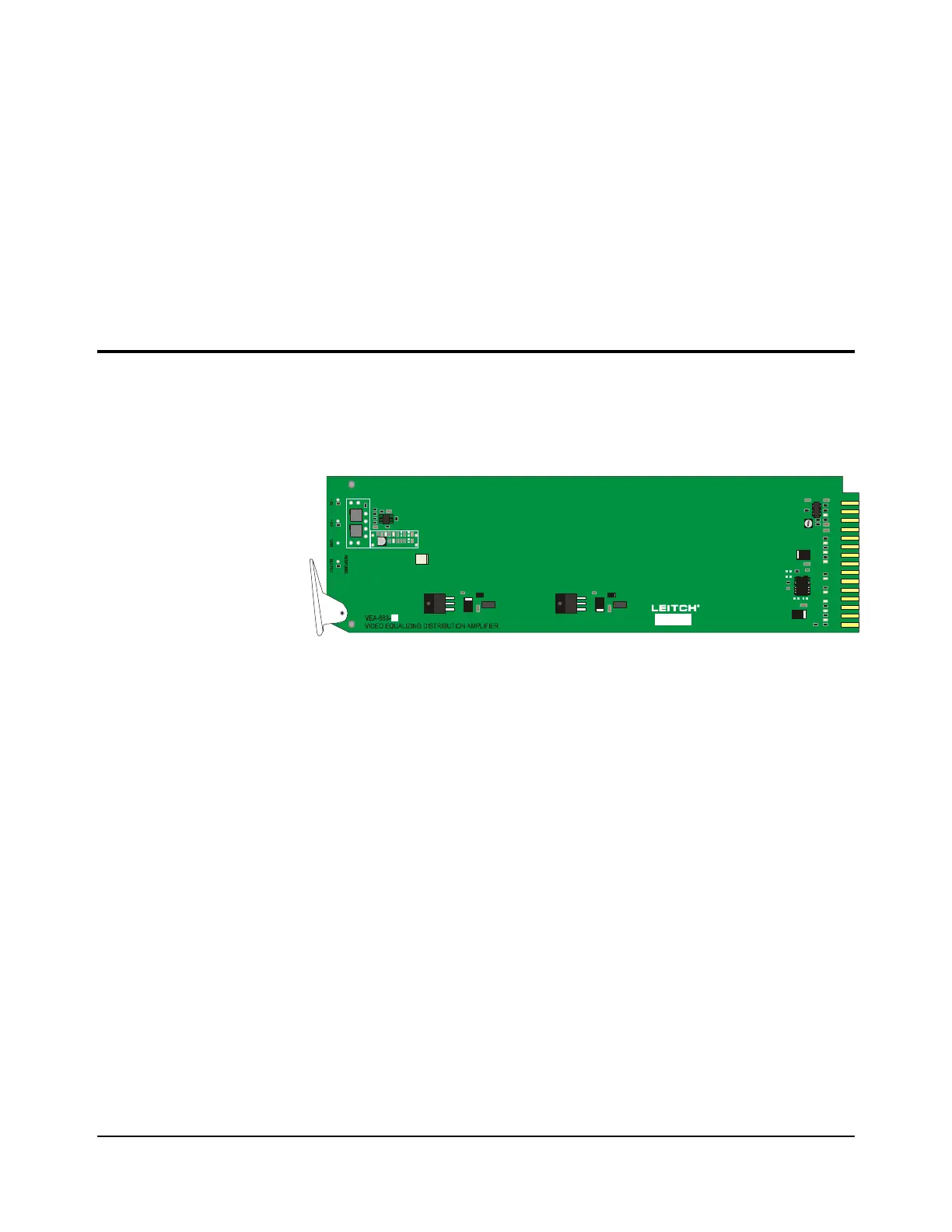

Figure 4-1. VEA-683 Video Equalizing Amplifier Module
The VEA-683 is a high performance, high reliability equalizing analog video
distribution amplifier. This distribution amplifier features one differential input,
eight outputs, ±3dB gain adjust range, response adjustment in the front edge of
the board, and cable equalization. Composite and component analog NTSC,
PAL, SECAM signals, with sync or without sync, and subcarrier signal can be
distributed with VEA-683 in FR-683 and FR-684 series frames.
A
B
C
D
E
F
H
J
K
L
M
N
P
R
S
P1
GAIN EQ
