52 680 Series Video Distribution Amplifiers Installation and Operation Manual
Appendix B: Installing the 684PS-48
Branch Circuit Schematic
Description
The 684PS-48 power supply differs from other power supplies in that it depends
on a facility’s installed circuit breaker/fuse to disconnect power to the frame.

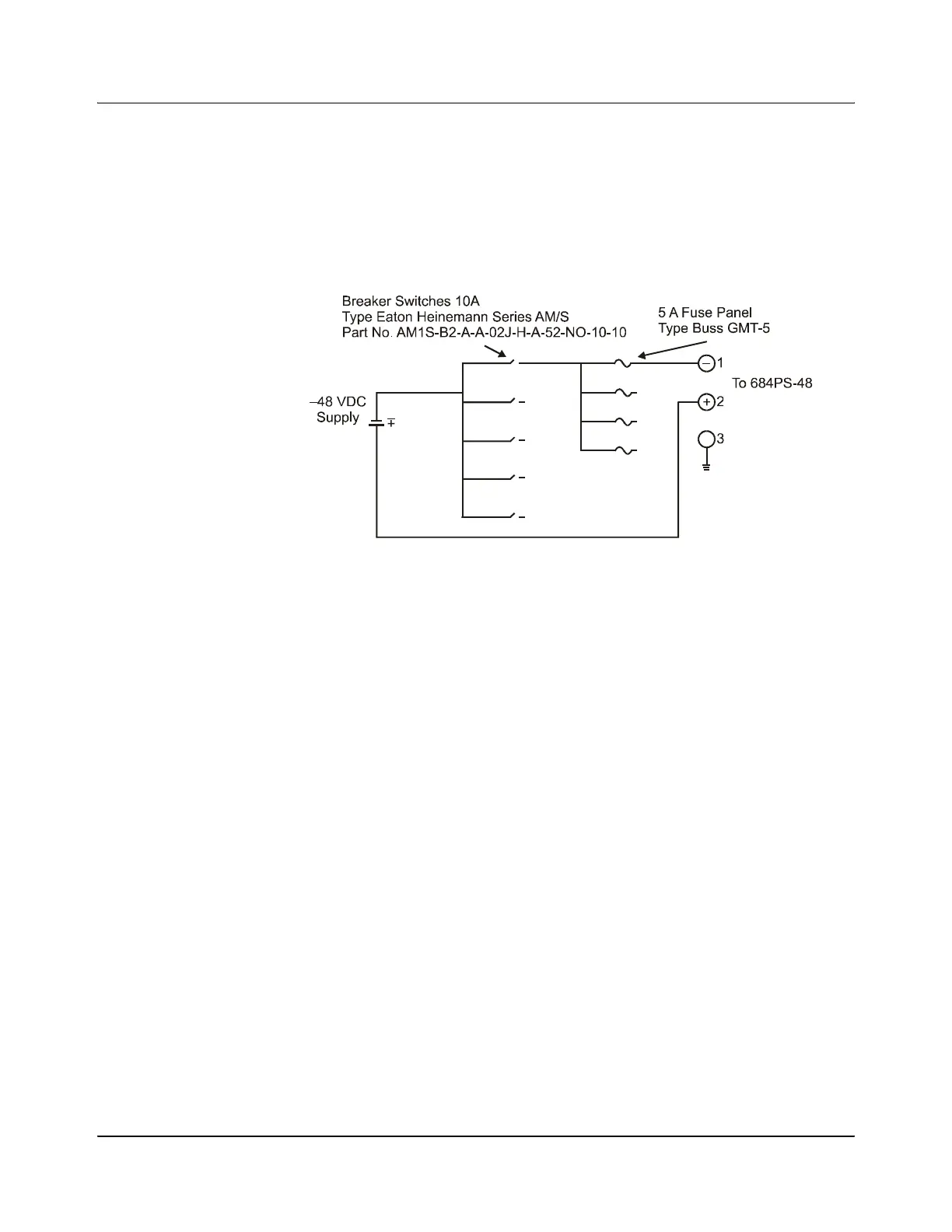

Figure B-1. Typical Branch Circuit Drawing
Suggested Protection Devices
Suggested Breaker Switch Type
Eaton Heinemann, Series AM/S, part # AM1S-B2-A-A-02J-H-A-52-NO-10-10
or equivalent.
Suggested Branch Circuit Fuse Type
Buss part # GMT-5 or equivalent.
