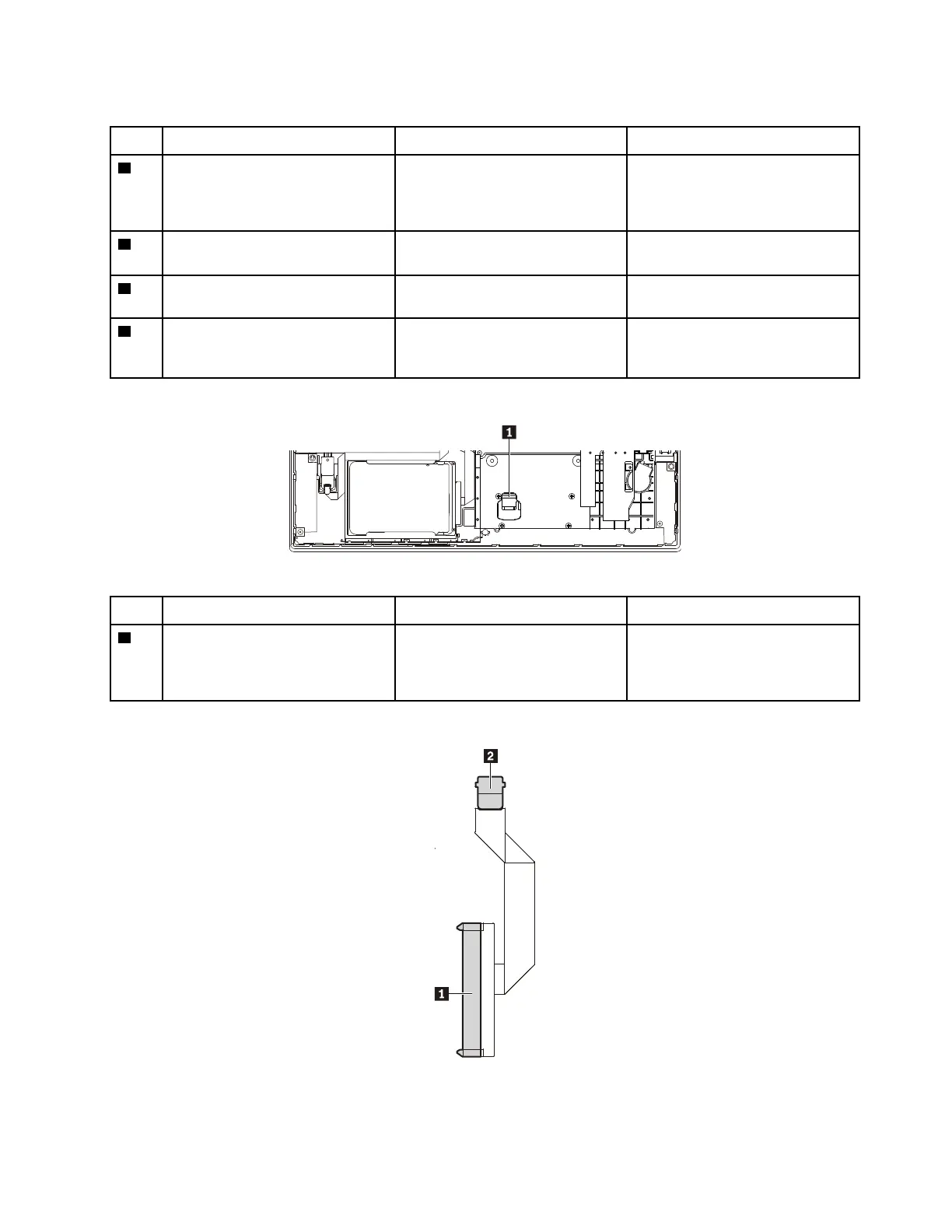

Table 11. USB card connectors
Item Connector (location) Internal cable required Cable connection
1
USB card connector USB card cable Connect one end to the USB card
connector on the system board
and the other end to this
connector.
2
Media card reader connector
(External)
No Insert the media card into this slot.
3
USB 2.0 connector (external)
No
Connect USB-compatible devices
to this connector.
4
Ethernet connector No
Connect the computer to a local
area network (LAN) with the
Ethernet connector.
Trackpad connector and cable
Table 12. Trackpad connector
Item Connector (location) Internal cable required Cable connection
1
Trackpad connector (internal)
Trackpad cable
Connect one end to the trackpad
connector on the system board
and the other end to this
connector.
Interal storage drive cable
Chapter 7. Locations 59
