Table 13. Interal storage drive cable
Item
Connector (location)
Internal cable required
Cable connection
1
Interal storage drive connector
(internal)
Interal storage drive cable
Connect this end
1 to the internal
storage drive connector.
2
Interal storage drive connector on
the system board (internal)
Interal storage drive cable Connect this end
2 to the internal
storage connector on the system
board.

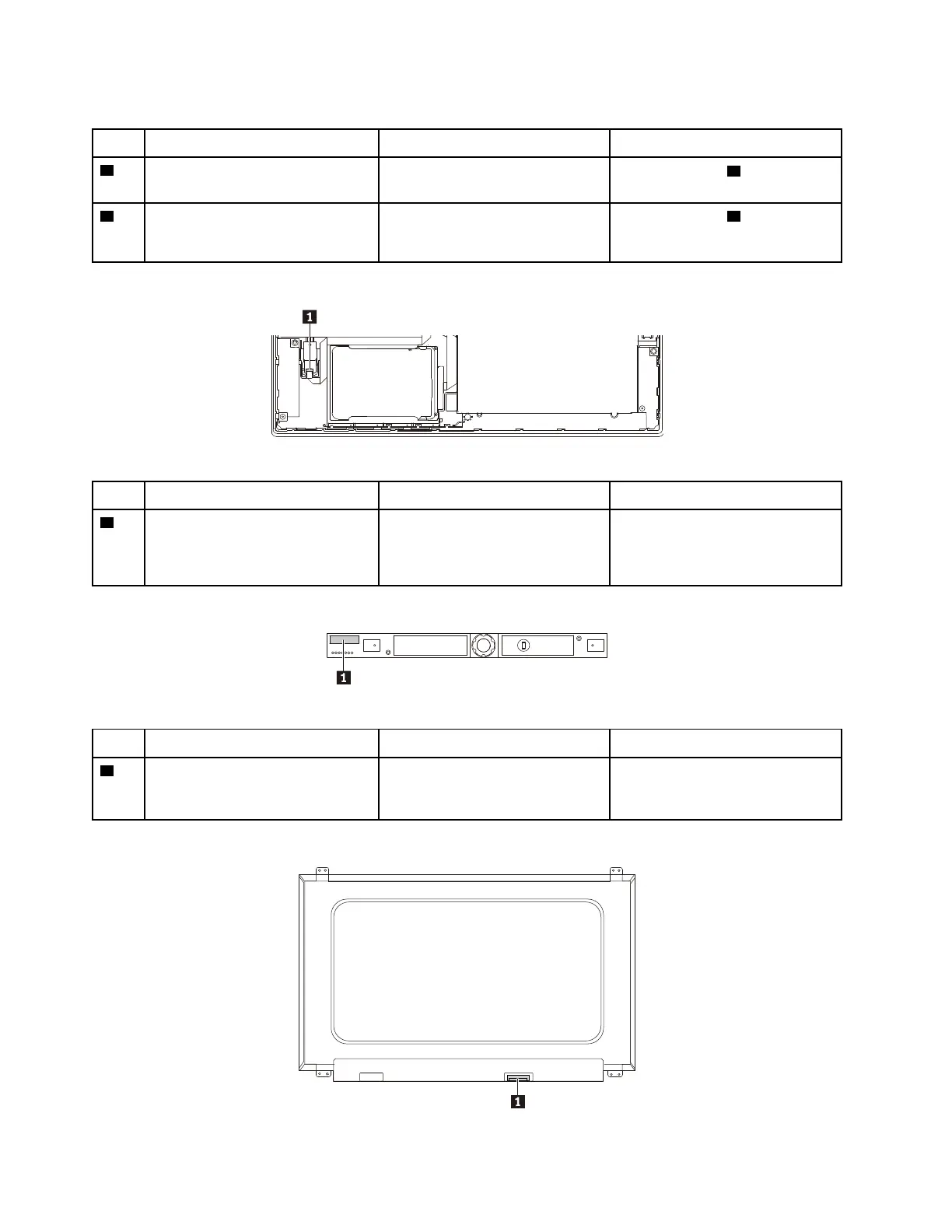

Fingerprint reader card connector and cable
Table 14. Fingerprint reader card
Item Connector (location) Internal cable required Cable connection
1
Fingerprint reader card connector
(internal)
Fingerprint reader cable
Connect one end to the fingerprint
reader connector on the system
board and the other end to this
connector.
Camera/microphone card
Table 15. Camera/microphone card
Item
Connector (location)
Internal cable required
Cable connection
1
Camera/microphone card
connector (internal)
LCD cable Connect one end of the LCD cable
to the camera/card connector and
the other end to the system board.
LCD panel connector and cable
