6. Slide out the optical drive cage.
7. Remove the bezel of the optical drive cage.
8. Touch the static-protective package that contains the new optical drive to any
unpainted metal surface on the server. Then, remove the optical drive from
the package and place it on a static-protective surface.
9. Follow the instructions that come with the optical drive to set jumpers or
switches, if there are any.
10. Pay attention to the up and down position of the optical drive and slide the
optical drive into place.

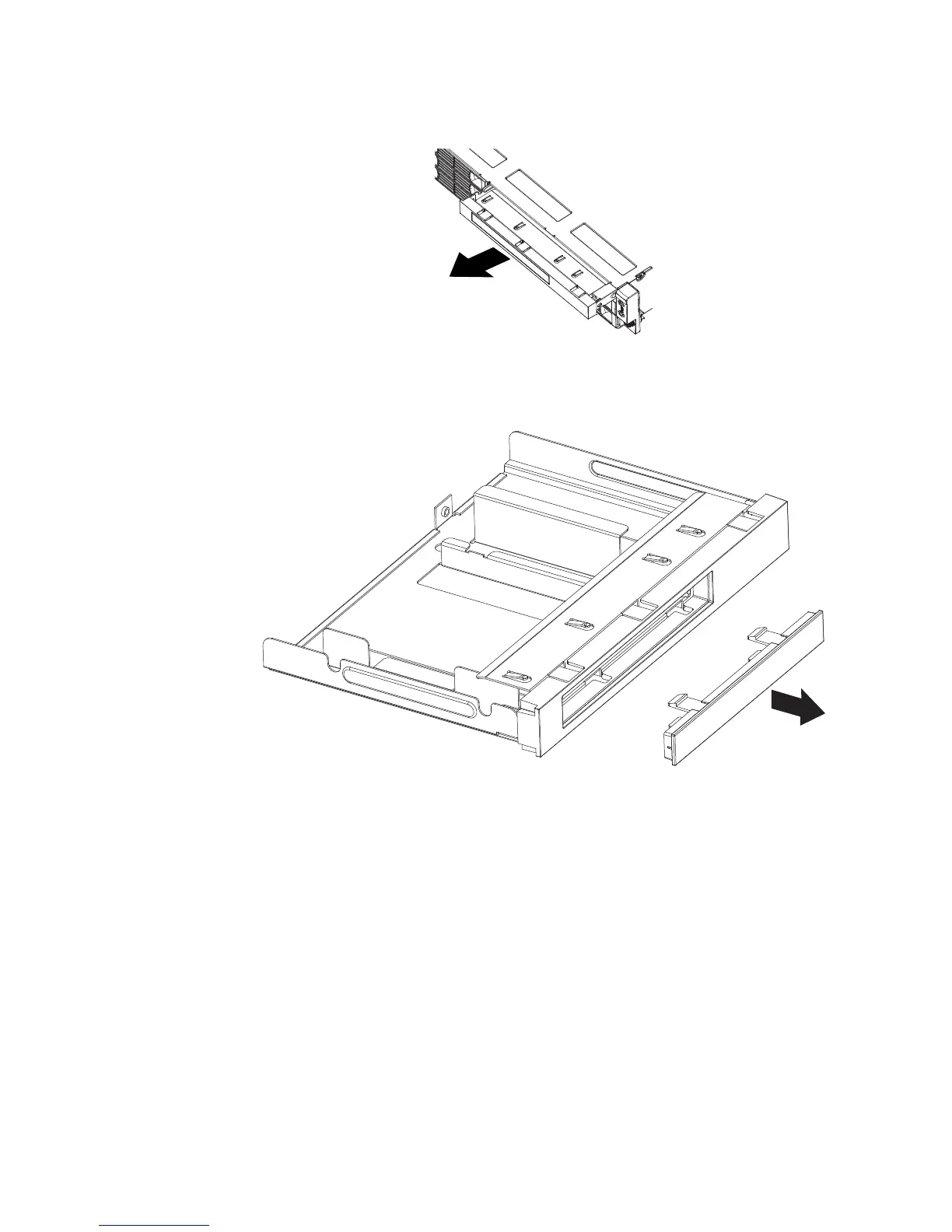

Figure 18. Sliding out the optical drive cage
Figure 19. Removing the bezel of the optical drive cage
32 Installation and User Guide
