6.LocatethePCIExpresscardslotforinstallingtheRAIDcard,andthenremovethePCIExpresscardslot
bracketfromtherisercardassembly2.StorethePCIExpresscardslotbracketintheeventthatyou
laterremovetheRAIDcardandneedthebrackettocovertheplace.

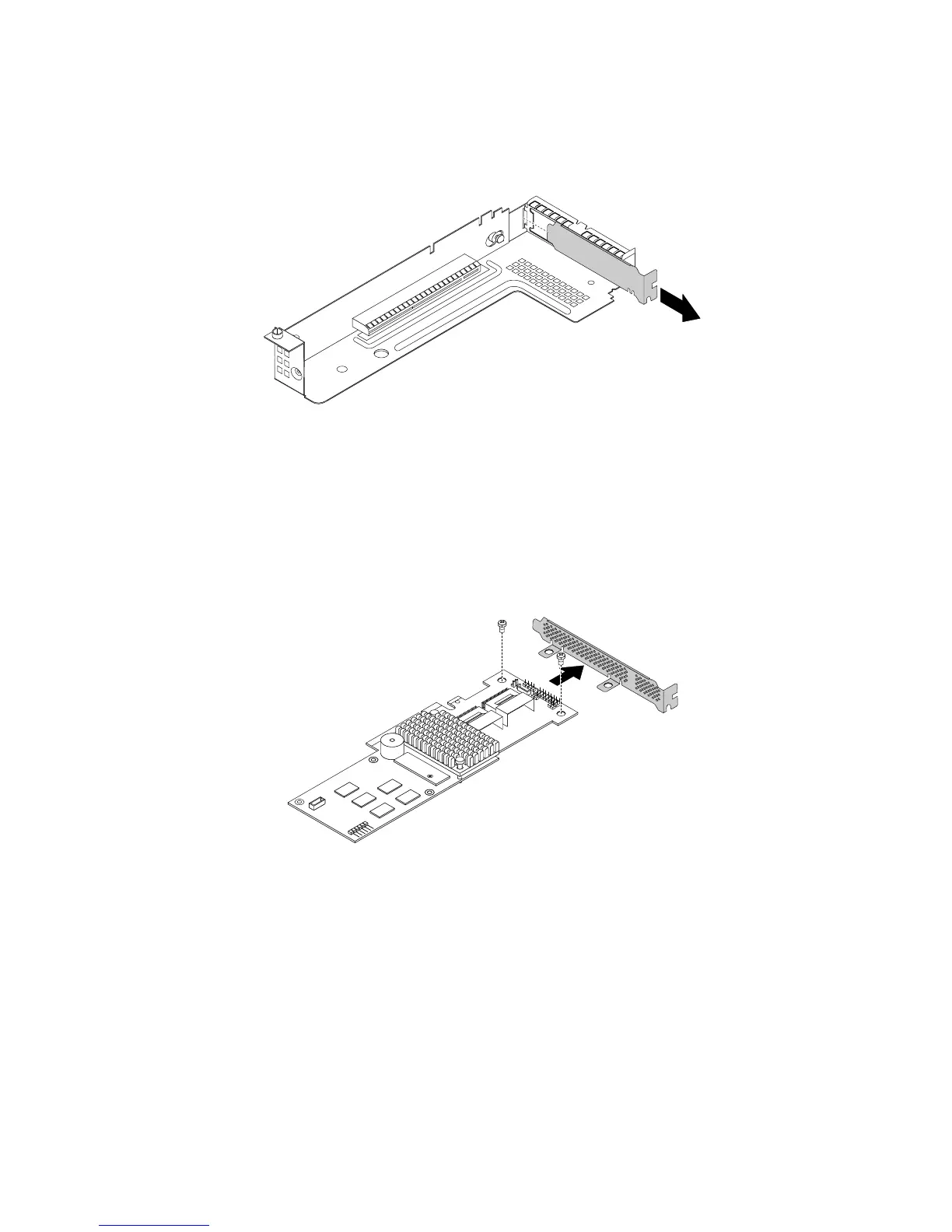

Figure42.RemovingaPCIExpresscardslotbracket
7.Touchthestatic-protectivepackagethatcontainstheRAIDcardtoanyunpaintedsurfaceontheoutside
oftheserver.Then,taketheRAIDcardandthelow-prolebracketoutofthepackage.
Note:CarefullyhandletheRAIDcardbyitsedges.
8.RemovethetwoscrewsthatsecuretheRAIDcard,andthenremovethefull-heightbracketfromthe
RAIDcard.
Figure43.Removingthefull-heightbracketfromtheRAIDcard
