•Ifyouarereplacinganopticaldrive,disconnectthesignalcablefromthesystemboardand
disconnectthepowercablefromthebackplane.Presstherearoftheretainingbracket1inthe
directionasshownandpushtheopticaldrivefromtherearuntilitisprojectedfromthefrontofthe
chassis.Then,holdtheopticaldrivefromthefrontandcompletelyslideitoutofthechassis.

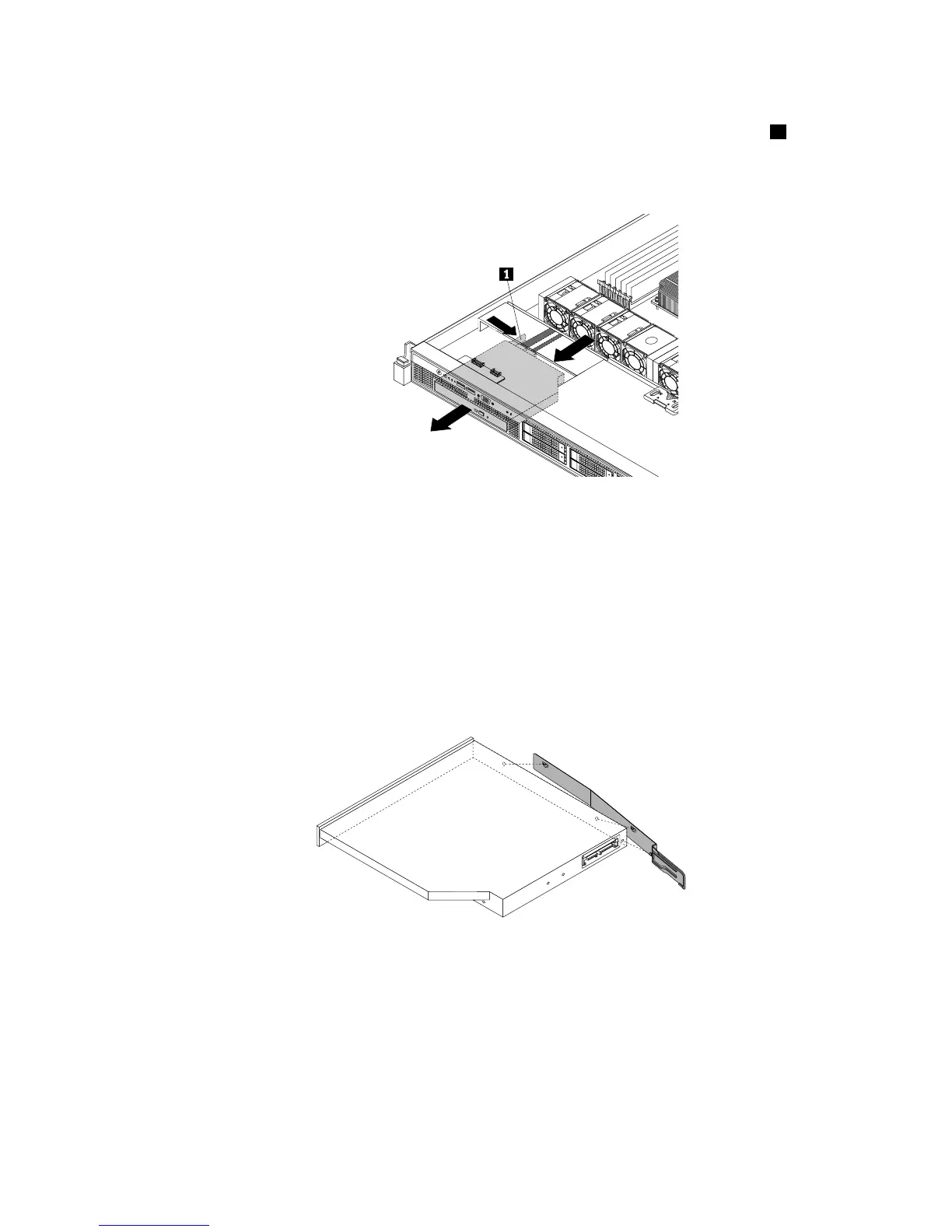

Figure81.Removingtheopticaldriveforservermodelswith2.5-inchharddiskdrives
•Ifyouareinstallinganopticaldrive,removethedummyopticaldrivetray.Thewayofremovingthe
dummyopticaldrivetrayissimilartothewayofremovingtheopticaldrivethatisdescribedabove.
Storethedummyopticaldrivetrayintheeventthatyoulaterremovetheopticaldriveandneedthe
dummyopticaldrivetraytocovertheplace.
6.Touchthestatic-protectivepackagethatcontainsthenewopticaldrivetoanyunpaintedsurfaceonthe
outsideoftheserver.Then,takethenewopticaldriveoutofthepackage.
7.Removetheretainingbracketfromtheoldopticaldriveorthedummyopticaldrivetray.Then,installit
onthesideofthenewopticaldrive.
Figure82.Installingtheopticaldriveretainingbracket
Chapter6.Installing,removing,orreplacinghardware131
